ASSEMBLY INSTRUCTIONS
STEP 5
1.First, take out Hexagonal nut M16 (104), Lower fixed U-holder (13), 2PCS Vibration-damping washer (48),

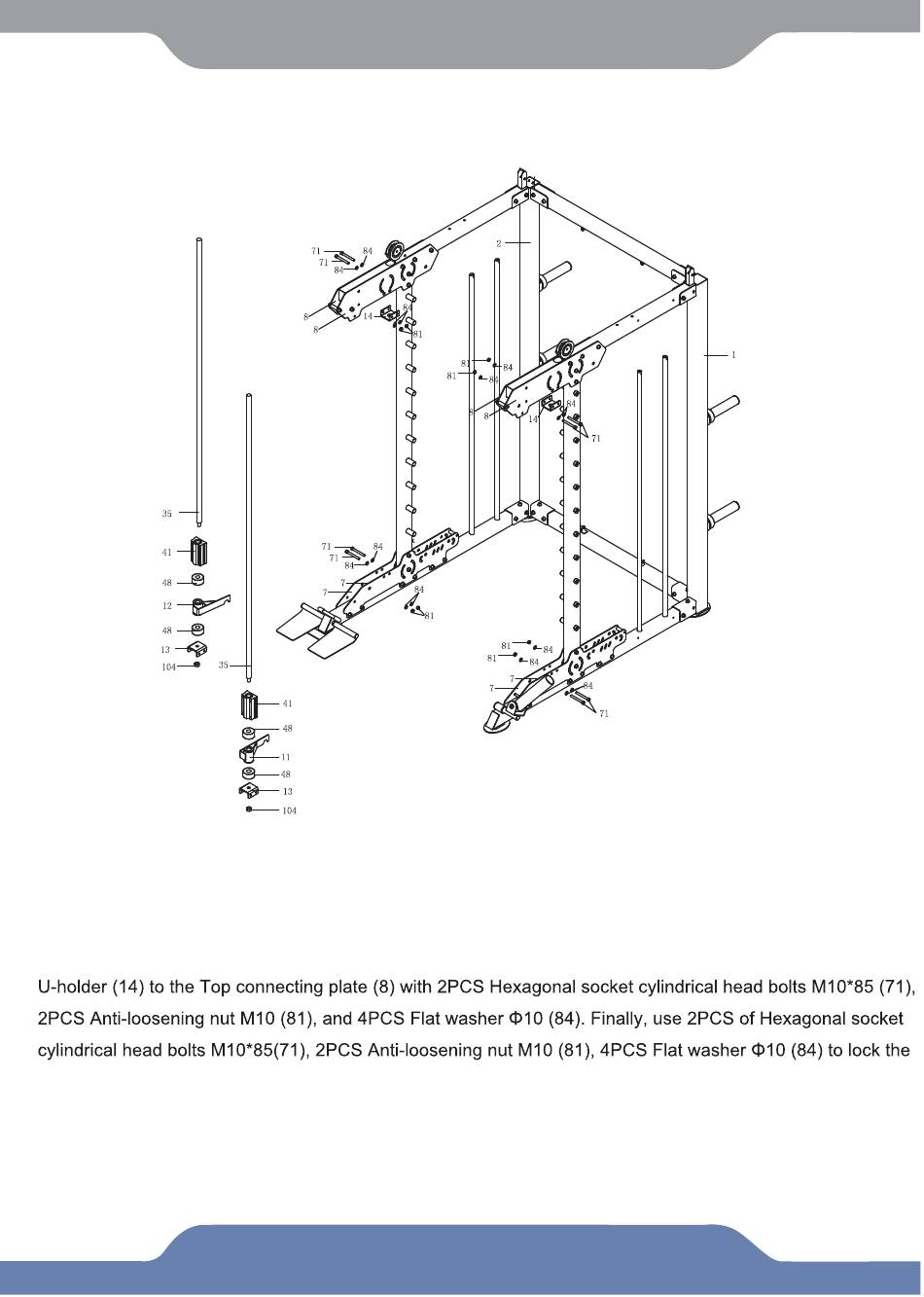

Safety hanger L (11), Sliding seat (41) and Guide rod (35). As shown in the figure, thread them together from
top to bottom and lock with M16 nuts. Then, take out the Upper fixed U-holder (14), lock the Upper fixed
assembled Guide bar in the first step on the Bottom connecting plate (7).
Assemble the right part in the same way. First, take out Hexagonal nut M16 (104), Lower fixed U-holder (13),
2PCS Vibration-damping washer (48), Safety hanger L (11), Sliding seat (41) and Guide rod (35). As shown
in the figure, thread them together from top to bottom and lock with M16 nuts. Then, take out the
13
