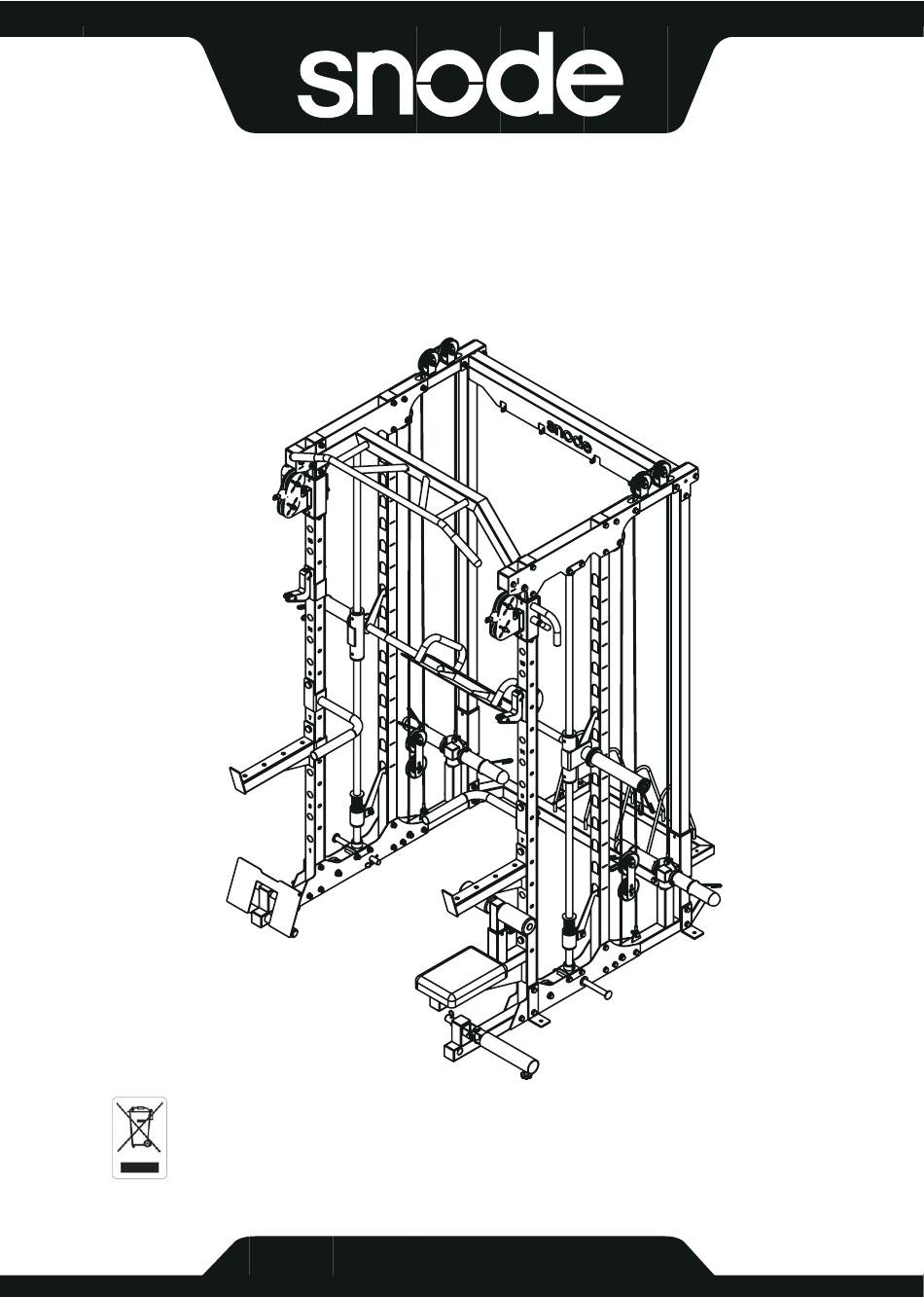

SMITH MACHINE
ALL10
INSTALLATION MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this owner's manual
for future reference. The specifications of this product may vary from his photo, subject to change
without notice.
INSTALLATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALL10 and is the answer not in the manual?

Questions and answers

Related Manuals for snode ALL10

Summary of Contents for snode ALL10

  • Page 1 SMITH MACHINE ALL10 INSTALLATION MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from his photo, subject to change without notice. INSTALLATION MANUAL...
  • Page 2 ASSEMBLY CAUTION Please carefully read the following information before installation Assembling requires at least two people Do not tighten all screws before assembly is complete Ensure that all accessories are complete. If not, please contact us via email support@snodesport.com If you are missing any parts, or otherwise have any warranty issues, please contact us first.
  • Page 3 TABLE OF CONTENT PARTS LIST HARDWARE LIST ASSEMBLY INSTRUCTION 6-35 PARTS REQUEST...
  • Page 4 Part List...
  • Page 5 Part List...
  • Page 6 Part List Lat Pulldown Leg Fix Part Attachment Frame...
  • Page 7 Part List Leg Press Foam Attachment...
  • Page 8 HARDWARE LIST...
  • Page 9 ASSEMBLY INSTRUCTION STEP: 1 A1 Front Base Frame A3 Rear Base Frame Base Connecting Plate M10×70 Hexagon Bolt 2PCS 4PCS 2PCS 6PCS M10 Nut 10mm Washer 6PCS 12PCS A2×2 1+15+10×2 1+15+10×2 1+15+10×2 1+15+10×2 A2×2...
  • Page 10 ASSEMBLY INSTRUCTION STEP: 2 A5 Plate Storage Base A6 Barbell Holder Rear Connecting Frame M10×70 Hexagon Bolt 2PCS 10mm Washer M10×25 Hexagon Bolt 10mm Spring Washer 4PCS 2PCS 2PCS 5+10+8 5+10+8 1+10 1+10...
  • Page 11 ASSEMBLY INSTRUCTION STEP: 3 A7 L-plate 105mm Hexagon Bolt M10×80 M10 Nut 10mm Washer 2PCS 2PCS 2PCS 4PCS 3+15+10×2 3+15+10×2 Tips: look up the flatness of bottom...
  • Page 12 ASSEMBLY INSTRUCTION STEP: 4 A8 Front Upright Tube A9 Rear Upright Tube Guide Tube L-plate 140mm 2PCS 2PCS 2PCS 2PCS M10×70 Hexagon Bolt M10 Nut 10mm Washer M10×75 Hexagon Bolt 4PCS 10PCS 20PCS 4PCS M10×80 Hexagon Bolt 2PCS 3+15+10×2 1+15+10×2 2+15+10×2 3+15+10×2 1+15+10×2...
  • Page 13 ASSEMBLY INSTRUCTION STEP: 5 Shaft Sleeve Smith Bar Guide Rod 10 mm Plat Point Set screw M10×80 Hexagon Bolt 2PCS 2PCS 2PCS 4PCS M10 Nut 10mm Washer 4PCS 8PCS Tips: Screws-14 are pre-installed, just tighten them. 3+15+10×2...
  • Page 14 ASSEMBLY INSTRUCTION STEP: 6 Smith Safety Hook Spring 50mm Washer 2PCS 2PCS 4PCS B8×2+B7 B8×2+B7...
  • Page 15 ASSEMBLY INSTRUCTION...
  • Page 16 ASSEMBLY INSTRUCTION...
  • Page 17 ASSEMBLY INSTRUCTION STEP: 8 Weight Holder Olympic Adapter 2”Spring Clamp 8mm Plat Point Set Screw 2PCS 4PCS 4PCS 4PCS C6+C7+C5 Tips: Screws-13 are pre-installed, just tighten them.
  • Page 18 ASSEMBLY INSTRUCTION STEP: 8-1...
  • Page 19 ASSEMBLY INSTRUCTION...
  • Page 20 ASSEMBLY INSTRUCTION...
  • Page 21 ASSEMBLY INSTRUCTION...
  • Page 22 ASSEMBLY INSTRUCTION...
  • Page 23 ASSEMBLY INSTRUCTION...
  • Page 24 ASSEMBLY INSTRUCTION...
  • Page 25 ASSEMBLY INSTRUCTION...
  • Page 26 ASSEMBLY INSTRUCTION STEP: 16 Weight Storage Grill 4PCS...
  • Page 27 ASSEMBLY INSTRUCTION...
  • Page 28 ASSEMBLY INSTRUCTION...
  • Page 29 ASSEMBLY INSTRUCTION...
  • Page 30 ASSEMBLY INSTRUCTION...
  • Page 31 ASSEMBLY INSTRUCTION STEP: 21 60mm Pulley M10×80 Hexagon Bolt M10 Nut 10mm Washer 2PCS 2PCS 2PCS 4PCS Bushing 4PCS E4+3+15+10×2+E5×2...
  • Page 32 ASSEMBLY INSTRUCTION STEP: 22 Band Peg Detent Pin 2PCS 2PCS...
  • Page 33 ASSEMBLY INSTRUCTION STEP: 23 Landmine Attachment Detent Pin...
  • Page 34 ASSEMBLY INSTRUCTION STEP: 24 Pedal Pedal Stopping Rod...
  • Page 35 ASSEMBLY INSTRUCTION STEP: 25 Pedal Connecting Rod...
  • Page 36 ASSEMBLY INSTRUCTION Lat Pulldown Leg Fix Part Foam Attachment Fram...
  • Page 37 ASSEMBLY INSTRUCTION Leg Press L-shaped Pin Attachment...
  • Page 38 PARTS REQUEST SNODE GROUP, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO support@snodesport.com NAME: ADDRESS: CITY: STATE: ZIP: TELEPHONE: (Day) (Night) MODEL#: PURCHASE DATE: PLACE OF PURCHASE: PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
