ASSEMBLY INSTRUCTIONS
STEP 3

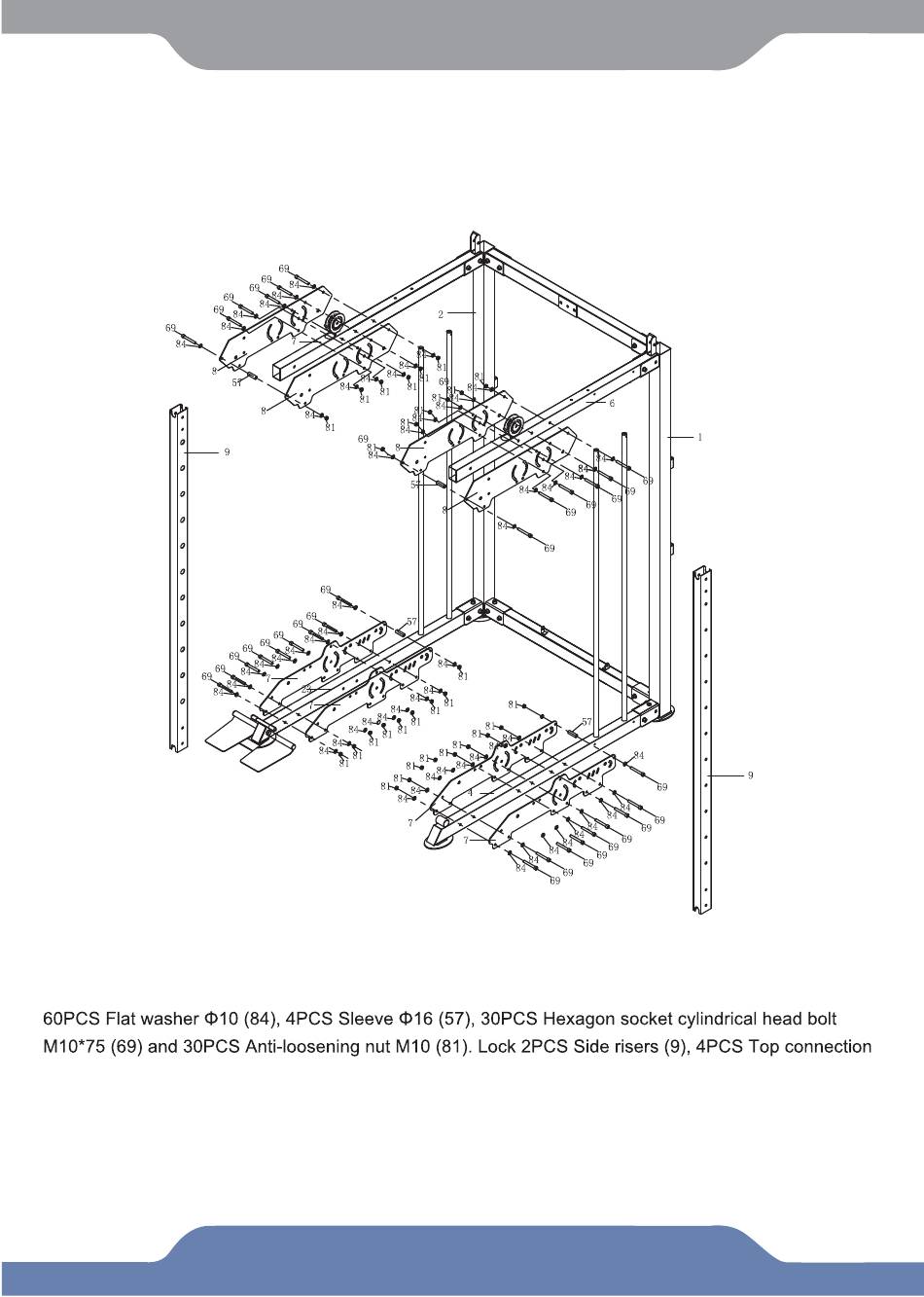

Take out the 2PCS Side riser (9), 4PCS Top connection plate (8), 4PCS Bottom connection plate (7),
plate (8) and 4PCS Bottom connection plate (7), respectively, to the Left bottom bracket (4), Right bottom
bracket (23), Upper left top bracket (5) and Upper right top bracket (6) with screws as shown on the
figure without tightening.
11
