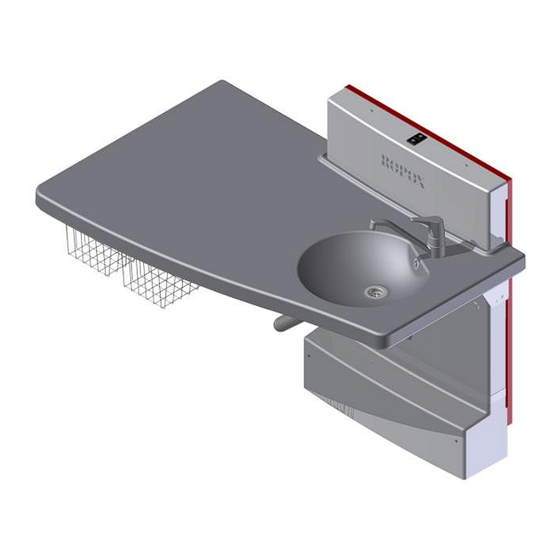

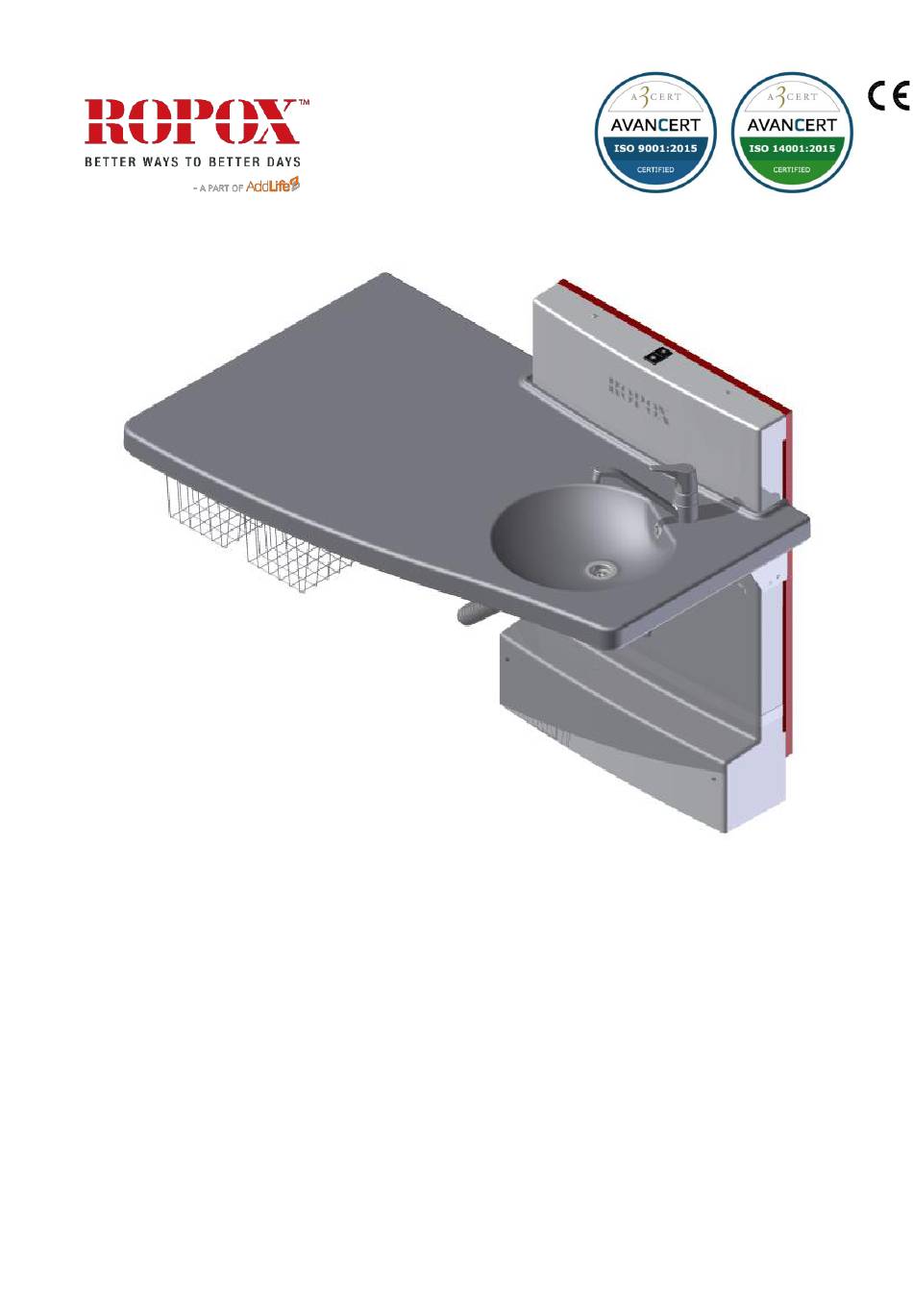

- Page 1 Adapter Frame for Nursing Table Maxi 2 User Manual Mounting Instructions Keep this manual with the product at all times TF 200.0094_eng / Rev 01 / 19.12.2013...
- Page 2 Contents General information ............................... 3 Mounting instructions ............................5 Maintenance ................................8 Complaints ................................9 Side 2 TF 200.0094_eng...
-
Page 3: General Information
Adapter Frame for Nursing Table Maxi 2 Manufacturer: Ropox, DK-4700 Næstved, Tel. +45 55 75 05 00 Application – The adapter frame is used if the wall is uneven or out-of-true in order to ensure that the nursing table does not scrape against the wall during height adjustment. - Page 4 General information Technical data Material – frame: Welded steel pipe and steel sheet St.37 Surface treatment: Powder-coated, white RAL 9010 mat, chromate Before using the product Before using this product, make sure that the mounting instructions have been followed carefully and that all bolts and nuts have been tightened. Side 4 TF 200.0094_eng...
-
Page 5: Mounting Instructions
Mounting instructions Important information prior to mounting Dimension sketch of nursing tables with adapter frame. Nursing table Maxi 2, 90 cm Nursing table Maxi 2, 130 cm Side 5 TF 200.0094_eng... - Page 6 Mounting instructions These mounting instructions comprise: Adapter frame Dimension sketch of adapter frame: Side 6 TF 200.0094_eng...
- Page 7 Mounting instructions Follow the mounting instructions for Maxi 2 nursing table. Place the adapter frame behind the nursing table unit after drilling holes in the wall. Then fasten the unit and the adapter frame on the wall by means of the assembly bolts. Side 7 TF 200.0094_eng...
-
Page 8: Maintenance
Ropox recommends testing of the functions of the nursing table and retightening of the bolts once a year. In case of defects, please contact Ropox as soon as possible, and do not use the nursing table until the problem has been solved/remedied. -
Page 9: Complaints
Complaints Please see General Terms of Sale and Delivery on www.ropox.com Ropox A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 E-mail: info@ropox.dk www.ropox.com Side 9 TF 200.0094_eng...
