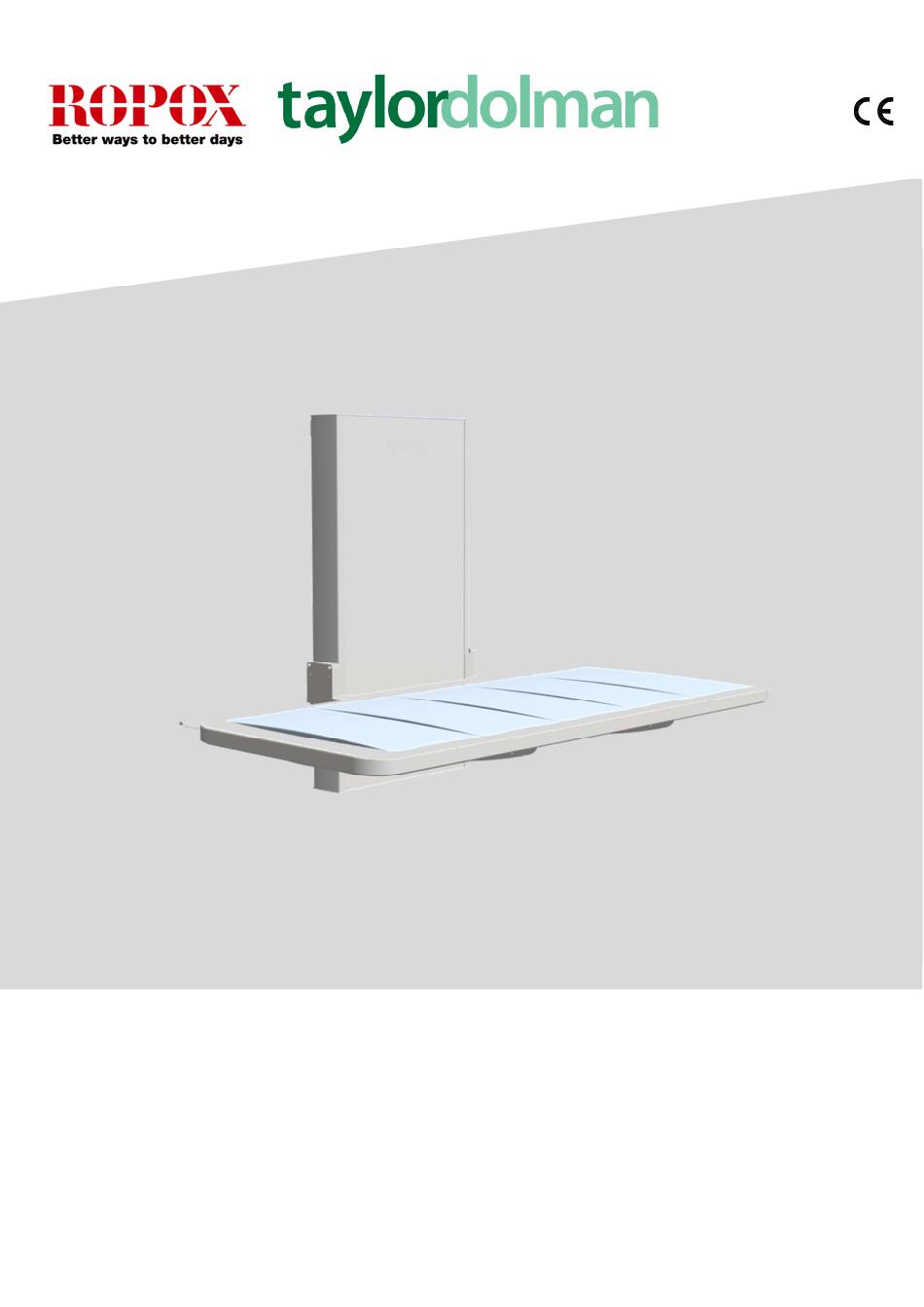

- Page 1 Hudson, shower bed User Manual Mounting instruction Keep this folder with the product at all times...
-
Page 2: Table Of Contents
Content Content ..............................2 Product information ............................... 3 Part Numbers ................................. 3 Technical data ................................ 4 Daily use ................................. 4 The slat ................................... 4 After use................................. 5 Recommendations in use ............................6 Important info before mounting ..........................7 Placement of the Main 230 V socket, the hot and cold Water and the Drain: ............7 Mounting Instructions ............................ -
Page 3: Product Information
Hudson Shower bed, height adjustable Producer : Ropox, DK-4700 Naestved, Phone +45 55 75 05 00 Usability – The height adjustable shower bed can be used to nurse children and adults (up to 150Kg). The shower bed can be used at home, in day care center or institutions to obtain good and correct working conditions for the carer. -
Page 4: Technical Data
General information Technical data Electrical connection: 230V, 50Hz, max 2.0A Standby consumption: 7W Duty cycle: Max 10%, 2 min/18 min Height: Work surface 30 – 100 cm Unit, B=60 cm, H=116cm, D=13cm Material – Frame: Welded steel tubes St.37, Stainless and aluminum Shower tray: Surface treatment: Powder coating, white RAL 9010 matt, Chromate... -
Page 5: After Use
General information After use When not using the shower bed, the shower tray can be folded up against the Lifting unit. This way it will only take up the space of approx. 30cm from the wall. Inside the lifting unit, a gas damper is mounted, to reduce the power needed, when folding the tray up and down. -
Page 6: Recommendations In Use
General information Recommendations in use The height adjustable shower bed helps the caretaker to obtain the most optimal working height. Height adjustment allows you to customize the working height to the individual carer, and can also save unnecessary lifting, when transferring from e.g. wheelchair. To ensure optimum utilization of the shower bed features and avoid accidents, it is important to observe some basics safety procedures... -
Page 7: Important Info Before Mounting
Mounting Instructions Important info before mounting Make sure that you allow free space on all sides of the Hudson unit as shown below. Placement of the Main 230 V socket, the hot and cold Water and the Drain: The main 230 V socket, the drain and the hot and cold water, must be placed in the free area beside the lifting unit and according to the national requirements for such installations. -
Page 8: Mounting Instructions
Mounting Instructions Receiving the Hudson Shower Bed: The Hudson Shower Bed will come in two packages. One for the “Lifting unit” and one for the “Shower tray unit”. Lifting unit Shower tray It is important to follow the mounting instructions to assemble the unit in the right way and to obtain a safe product. -
Page 9: Prepare The Mounting / Dismount The Top Cover Plate
Mounting Instructions 1. Prepare the mounting / dismount the top cover plate Pull up the cover plate on the top of the lifting unit to get access to the nut, which holds the front plate. Loosen this nut. Page 9... -
Page 10: Prepare The Mounting / Dismount The Front Plate
Mounting Instructions 2. Prepare the mounting / dismount the front plate Slide the front plate out of the Lifting unit to get access to the wall mounting holes in the unit. !! Be aware not to bend or scratch the front plate in the process !! Page 10... -
Page 11: Mounting To The Wall
Mounting Instructions 3. Mounting to the wall Attach the frame securely to the wall by using adequate bolts and rawlplugs suitable for the type of wall construction / material on site. The Shower bed is being supplied with a set (8 pcs) of screws and rawlplugs, which is ONLY used to mount the unit in a concrete wall. - Page 12 Mounting Instructions Page 12...
-
Page 13: Remount The Front Plate
Mounting Instructions 4. Remount the front plate Slide the front plate back into the Lifting unit and fasten it with the nut. Page 13... -
Page 14: Mount The Shelves On The Lifting Unit
Mounting Instructions 5. Mount the shelves on the Lifting unit. Use 4 pcs. M5x10 screws to mount the shelves on both sides of the lifting unit. Page 14... -
Page 15: Mount The Shower Tray On The Lifting Unit
Mounting Instructions 6. Mount the Shower tray on the Lifting unit. Slide the Shower tray in between the Lifting unit and the support arms on the Lifting unit. Page 15... - Page 16 Mounting Instructions Fasten the Shower tray to the Lifting unit with 8 pcs. M8x16 through the bushings in the support arms. Page 16...
- Page 17 Mounting Instructions 7. Mount the cover plate on Shower tray Place the cover plate between the two support arms underneath the Shower tray. Fasten it with 4 pcs M5x10 Page 17...
- Page 18 Mounting Instructions 8. Mount the Drain and Flexible hose on the Shower tray Screw the plastic nut on the scuttle and tighteen it firmly. Connect the flexible hose to the drain tube and connect it to the drain in the wall or on the floor. •...
-
Page 19: Wire Diagram
Electrical components Wire diagram The shower bed is delivered with the control box already mounted on the frame. The diagram shows how the cables which are connected to the control box. All the plugs are water tight, and therefore they can be a little tricky to connect / disconnect. -
Page 20: Connecting Cables
Electrical components Connecting cables The shower bed is delivered with the control box already mounted on the frame. Motor cable connects to socket 1. Socket 2, 3 & 4 are not in use and are blocked. Control switch connects to ”HB”. When all cables have been connected, use the safe locking bracket. -
Page 21: Labelling
Labelling Label Each shower bed has its own label as shown. The label contains information which is very important to specify when contacting your supplier. It also shows main power supply. Item No. Serial No. Name / model below explanation Production year &... -
Page 22: Support
Support Fault finding Hudson does not move up or Check if: down by when operating Main power connected 230V. using the hand control Motor is connected to control box Hand control is connected to control box Motor is overloaded Hand control defect Check if: Hudson works with another hand control By pressing the up or down... -
Page 23: Spareparts
Spareparts Spareparts 97000431 Actuator/motor Type : LA34.5 Stroke 350 mm Control Box 97000434 Type : CB6096-2 97000425 Hand Control Type : HB8195V0001+61 Slat 40*40090-180 40*40090-315 Flexible plumbing kit Page 23... -
Page 24: Accessories
Accessories Bed guard Bed guard is available as an option. The brackets will be mounted underneath the frame with the screws supplied. Length of Shower bed Bed guard foldable Bed end guard Shower bed L=126 cm Fixed 146cm 40-25023 40-25036 40-25038 178cm 40-25026... -
Page 25: Maintenance
Maintenance The Hudson is maintenance free. For safety reasons it is recommendable to check all mounting screws and moving parts to be sure all is tightened ok, and that all attachment to the wall is in correct and safe condition. Cleaning To clean this product, do not use a high-pressure washer. -
Page 26: Ce- Erklæring
CE- erklæring EU – Declaration of Conformity I hereby declare under sole responsibility that the following products: 40-25023 Hudson Shower bed, 146 cm 40-25026 Hudson Shower bed, 178 cm 40-25029 Hudson Shower bed, 210 cm are all under Classification Class I and in conformity with the following directives and standards: DIRECTIVES •... -
Page 27: Complaints
Complaints See General Terms of Sale and Delivery on www.ropox.com Ropox A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50 E-mail: info@ropox.dk www.ropox.dk Ropox A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50...
