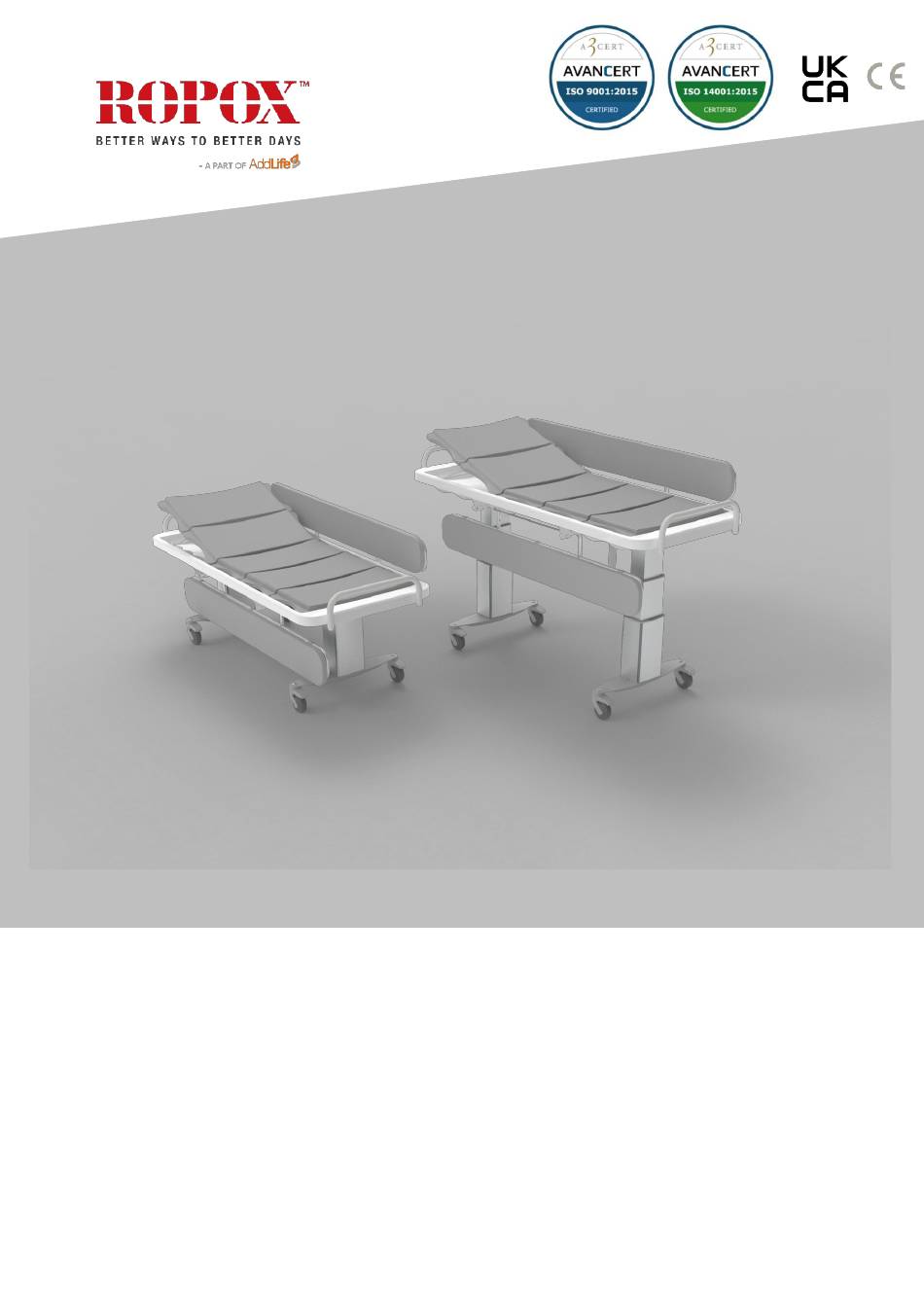

- Page 1 Ropox Mobilio Showerbed User manual This manual should always be in close proximity of the product. TF 200.06.0003_UK / Date 28-02-2023...
-
Page 2: Table Of Contents
Table of content Symbols used in this manual ........................4 General Safety ............................4 2.1 Product label ..........................6 3. General requirements..........................7 3.1 Product information ........................7 3.2 Intended use..........................8 3.3 Intended operator .......................... 8 3.4 Known contraindications ....................... 8 3.5 Dimensions ............................ - Page 3 11. Complaints .............................. 26 TF 200.06.0003_UK...
-
Page 4: Symbols Used In This Manual
Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product. - Page 5 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 6: Product Label
2.1 Product label This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745 Council Directive 2011/65/EU, RoHS The product also conforms to: European Medical Device Directive 93/42/EEC, including amendments incorporated in Directive 2007/47/EEC. -
Page 7: General Requirements
3. General requirements 3.1 Product information Manufacturer Ropox A/S UK Responsible Person Qserve Group UK, Ltd Ringstedgade 221 49 Greek Street, DK-4700 Naestved W1D 4EG London +45 55 75 05 00 United Kingdom info@ropox.com +44 740 885 936 3 info@qservegroup.com... -
Page 8: Intended Use
Accessories BA19 Lead acid battery Specification • Lead acid technology: Lead acid 40-30762 • Expected lifetime 4 years • Output voltage: 24 V DC • Max. discharge current: 6 A • Charging current: 300 mA, controlled by BA19 internal charger •... -
Page 9: Dimensions
3.5 Dimensions TF 200.06.0003_UK... -
Page 10: Instructions For Use
4. Instructions for use 4.1 Product assembly 4.1.1 Assembly of legs Mount the legs with 8x enclosed M8 bolts. It is recommended to cross tighten the 4 bolts, on each leg assembly. Note! Remember to use locking shims! All bolts are tightened with a torque of 12Nm / 8.9ft/lbs 4.1.2 Connection of wires in the controlbox Wires are connected according to picture and designation shown below. -
Page 11: Operating The Product
4.2 Operating the product Warning! Before use always make sure that mains cable and hand control cable will be able to travel freely without the risk of squeezing or disconnecting the product as result of the movement. Caution! When connected to the mains the product must be placed in a manner according to power outlets so that the operator will be able to disconnect the product during use in case of an emergency. -
Page 12: Operation Of The Bed Guards
(accessory) 4.2.3 Operation of the bed guards Mobilio Showerbed is always supplied with bed guards. To operate the bed guards, pull the rubber tubing placed under the tabletop to release the locking mechanism. The bed guard can then be pivoted to the desired mode. - Page 13 Storage temperature Time to reach operational temperature (+5 °C or +40 °C) at 20 °C ambient temperature -5 °C 3 Hours +40 °C Battery 0 hours +50 °C Without battery 3 Hours TF 200.06.0003_UK...
-
Page 14: Battery, Detachable
Battery, detachable Mobilio can be operated integrated battery solution with removable battery. This is ordered together with the product and assembled from the factory. Removable battery system can not be ordered post sale. Item number: 40-30772 TF 200.06.0003_UK... - Page 15 Emergency stop instructions Emergency stop activation/deactivation: The emergency stop is mounted on top of the BAL50 battery. It is readily available as the norm describes. Operation to activate emergency stop 1) Push button on top of battery To release emergency stop Take off battery 2) Use thumb and index/middle finger to push buttons on battery sides 3) Pull battery out To replace the battery again...
- Page 16 LED Indication TF 200.06.0003_UK...
- Page 17 TF 200.06.0003_UK...
-
Page 18: Cleaning
5. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product. Dry the product off with a wrung cloth. Cleaning of slats Lime deposits on slats are removed with a household bathroom cleaning agent. Notification! Do not use cleaning agents containing abrasive e.g. -
Page 19: Maintenance
Failing to comply with periodic maintenance may result of degrading of product function and safety. Notification! Ropox will make parts list and circuit diagrams available for maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. -
Page 20: Environmental Protection
7. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Hard plastic Slats Soft plastic Bed guards Steel waste Frame and wheel assembly Steel waste Control box... -
Page 21: Accessories
Central locking wheels (accessory) Name Part number Axles for central locking wheels 40-30190-1 Wheels with. central brake Ø100 97003067 Lock pedal, red and green button 97003068 9. Accessories A number of configuration options are available. Such options are generally ordered and delivered installed on the product at first delivery. -
Page 22: Battery, Detachable
9.1 Battery, detachable Mobilio can be operated integrated battery solution with removable battery. This is ordered together with the product and assembled from the factory. Removable battery system can not be ordered post sale. Item number: 40-30772 9.2 Central locking wheels Part number Size 40-30765-2... -
Page 23: Backrest (After/Pre)
9.3 Backrest (After/Pre) Shipped separately. Includes 2 extra slats. Pre-mounted at factory. Part number: 40-25031 Part number: 40-25032 9.4 Bed guard, end Part number: 40-25038 TF 200.06.0003_UK... -
Page 24: Electromagnetic Compatibility
10. Electromagnetic compatibility 10.1 Suitable Environments The device is suitable for use at home, at daycare centers, at day centers for persons with physical or mental disabilities or at hospitals except near active HF surgical equipment and the RF shielded room of a medical electrical system for magnetic resonance imaging, where the intensity of electromagnetic disturbances is high. -
Page 25: Immunity Test Levels
10.6.2 Immunity test levels Phenomenon Test method Immunity test level Electrostatic discharge +/- 8 kV contact EN 61000-4-2 immunity +/- 2, 4, 8, 15 kV air +/- 8 kV contact, Electrostatic discharge +/- 2, 4, 8, 15 kV air immunity – I/O EN 61000-4-2 Connectors shall be tested. - Page 26 11. Complaints See our general terms of sale and delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com TF 200.06.0003_UK...
