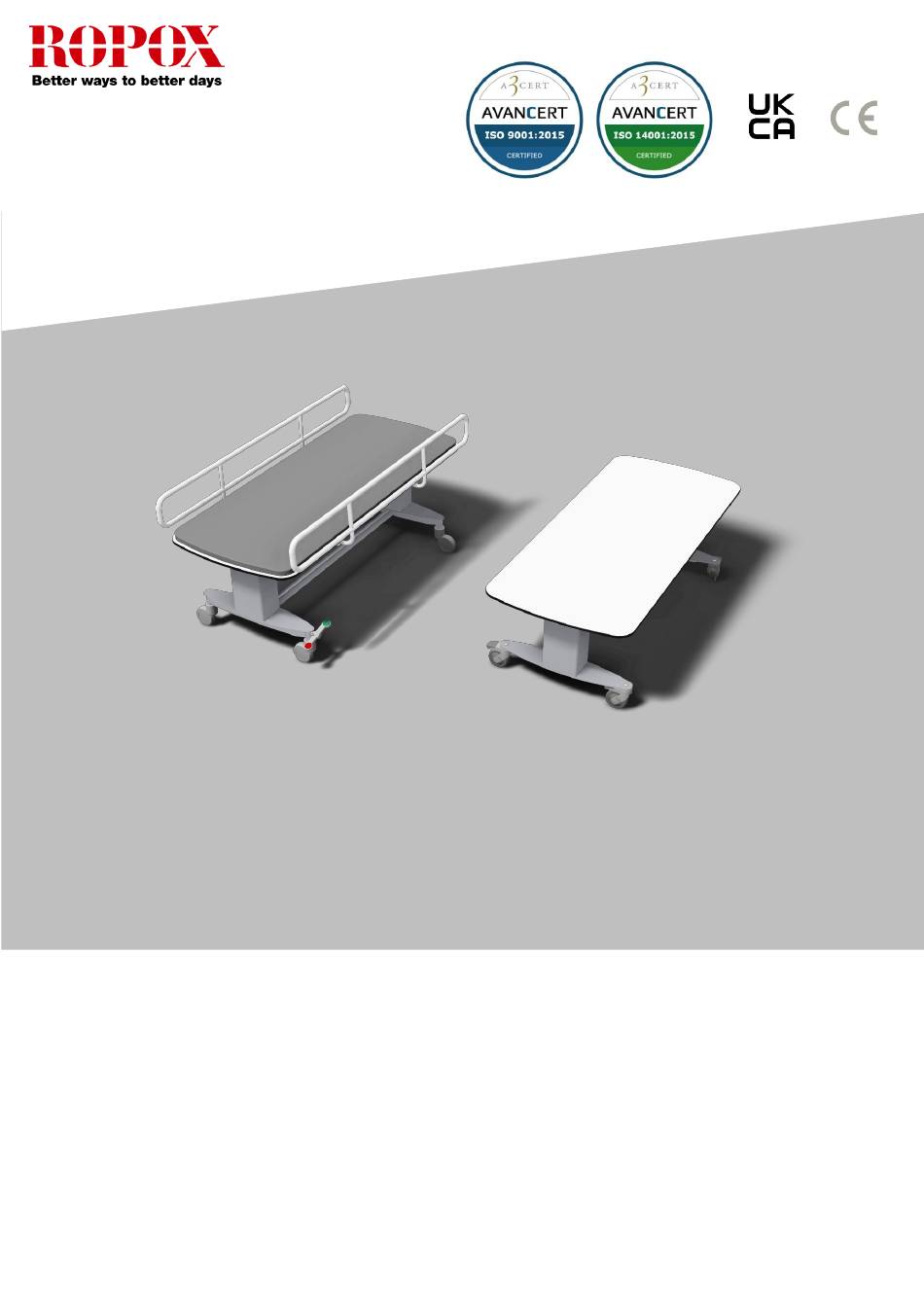

- Page 1 Ropox Mobilio User manual This manual should always be in close proximity of the product. TF 200.02.0013_eng / Date 25-07-2022...
-
Page 2: Table Of Contents
TF 200.02.0013_eng Table of content Symbols used in this manual ........................4 General safety ............................4 Product label ..........................6 General requirements ..........................7 3.1 Product information ........................7 3.2 Intended use..........................9 3.3 Intended operator ........................10 3.4 Known contraindications ......................10 3.5 Dimension sketch standard ...................... - Page 3 TF 200.02.0013_eng 10.4 Cables ..........................22 10.5 RF portable equipment ......................22 10.6 Compliance for emission and immunity standard ..............23 10.6.1 Emission class and group....................23 10.6.2 Immunity test levels ......................23 11. Complaints .............................. 24...
-
Page 4: Symbols Used In This Manual
TF 200.02.0013_eng 1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. - Page 5 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 6: Product Label
TF 200.02.0013_eng 2.1 Product label This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its amendments This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745... -
Page 7: General Requirements
Storing temperatures may not exceed -5 °C to 40 °C Consult the instruction for use 3. General requirements 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Email: Info@ropox.com Product models Part number... - Page 8 TF 200.02.0013_eng Bed guards St37 tube construction with powder coating. (accessories) Intended environments This product is to be used in: Professional healthcare Facility Homecare healthcare Environment As defined by IEC 60601-1-2 The product is not intended for use during HF surgery.
-
Page 9: Intended Use
TF 200.02.0013_eng Accessories BA19 Lead acid battery Specification • Lead acid technology: Lead acid 40-30762 • Expected lifetime: 4 years • Output voltage: 24 V DC • Max. discharge current: 6 A • Charging current: 300 mA, controlled by BA19 internal charger •... -
Page 10: Intended Operator
TF 200.02.0013_eng 3.3 Intended operator Reading and understanding this manual will be sufficient training for an intended operator. Children under the age of 16 or patient are not considered intended operator. 3.4 Known contraindications There is no known contraindication for this product 3.5 Dimension sketch standard 3.6 Dimension sketch central locking wheels... -
Page 11: Instructions For Use
TF 200.02.0013_eng 4. Instructions for use 4.1 Installation of product Mobilio is a mobile changing bed. It is delivered ready for use. Connecting the product to mains will make it operational. No other installation is needed. Warning! Before use always make sure that mains cable and hand control cable will be able to travel freely without the risk of squeezing or disconnecting the product as result of the movement. -
Page 12: Activation And Release Of Brake Systems
TF 200.02.0013_eng 4.2.2 Activation and release of brake systems To activate the brake wheels, use appropriated foot pad. Caution! The central brake system or standard locking brakes must always be locked and secure before a patient is placed on the product. Check function before use! The product is not intended as a mean for patient transportation and the use of it must only be stationary. -
Page 13: Ambient Temperature
TF 200.02.0013_eng 4.2.4 Ambient temperature Allow the product to reach operational temperature +5 °C to 40 °C when stored in temperatures outside this interval. Storage temperature Time to reach operational temperature (+5 °C or +40 °C) at 20 °C ambient temperature -5 °C 3 Hours +40 °C Battery... -
Page 14: Charging The Battery
TF 200.02.0013_eng BA19 battery CO61 control box 4.3.3 Charging the battery The battery will automatically charge through an integrated charger when the product is connected to the mains. A full charging takes approx. 6 hours and is indicated through the LED on the battery. Notification! Before using the battery, the first time make sure to charge it for 24hours. -
Page 15: Electric Block Diagram
TF 200.02.0013_eng 4.4 Electric block diagram Product is delivered assembled and ready for use. Power 100-240V AC Battery (accessory) Control box Lifting Lifting column column Hand control 5. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product. -
Page 16: Maintenance
Failing to comply with periodic maintenance may result of degrading of product function and safety. Notification! Ropox will make parts list and circuit diagrams available for maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. -
Page 17: Replacement Of Battery
TF 200.02.0013_eng 6.3 Replacement of battery Notification! The battery is to be replaced after 4 years at the latest. 6.4 Fault finding Problem Check the following Mobilio does not move up or down when the hand- 1. The product is connected to 230V and the control switch is pressed control box LED indicator lights green 2. -
Page 18: Spare Parts
TF 200.02.0013_eng 8. Spare parts Name Part number Brake wheels 40-30200-1 Power cable 97000427 Motor cable 97001724 Control box CO61 97001720 Lifting column incl bracket 40-30201-1 Hand control 97001655 Name 40-30404-5 40-30406-5 40-30408-5 40-30410-5 40-30411-5 Bed guard 40-30196-1 40-30196-1 40-30197-1 40-30197-1 40-30197-1 complete *... -
Page 19: Accessories
TF 200.02.0013_eng Central locking wheels (accessory) Name Part number Axles for central locking wheels 40-30190-1 Wheels with. central brake Ø100 97003067 Lock pedal, red and green button 97003068 9. Accessories A number of configuration options are available. Such options are generally ordered and delivered installed on the product at first delivery. -
Page 20: Battery
TF 200.02.0013_eng 9.1 Battery Mobilio can be powered by a backup battery which can be ordered separately. Always follow the instructions for proper use and installation, see 4.3. Item number: 40-30762 9.2 Bed guard Part number Size 40-30196-1 L= 120 cm, 140 cm 40-30197-1 L= 160 cm, 180 cm, 190 cm... -
Page 21: Cushion For Bed Guard
TF 200.02.0013_eng 9.3 Cushion for bed guard Part number Size 40-25782-1 L= 120 cm, 140 cm 40-25783-1 L= 160 cm, 180 cm, 190 cm 9.4 Mattresses Part number Size Thickness 40-25760-1 Mattress L=120 cm w/underlay 3 cm 40-25795-1 Mattress L=140 cm w/underlay 3 cm 40-25796-1 Mattress L=160 cm w/underlay... -
Page 22: Electromagnetic Compatibility
TF 200.02.0013_eng 10. Electromagnetic compatibility 10.1 Suitable Environments The device is suitable for use at home, at daycare centers, at day centers for persons with physical or mental disabilities or at hospitals except near active HF surgical equipment and the RF shielded room of a medical electrical system for magnetic resonance imaging, where the intensity of electromagnetic disturbances is high. -
Page 23: Compliance For Emission And Immunity Standard
TF 200.02.0013_eng 10.6 Compliance for emission and immunity standard The product is tested and found compliant for EMC according to EN60601-1-2:2015 for Clause 7 and Clause 8. Documentation is tested and found compliant according to EN60601-1-2:2015 for Clause 5 10.6.1 Emission class and group Phenomenon Test method Class... -
Page 24: Complaints
18.07 MHz to 18.17 MHz. 21.0 MHz to 21.4 MHz. 24.89 MHz to 24.99 MHz. 28.0 MHz to 29.7 MHz and 50.0 MHz to 54.0 MHz. 11. Complaints See our general terms of sale and delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk...
