Specification
Model
TR-D2B5-noPoE
Image sensor
1/2.9" CMOS 2MP
Resolution
FullHD(1920x1080)
Frame rate
50/60Hz: FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night Mode
Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 30 m
Lens (mm)
Field of view(horiz./vert.)
81˚ / 44˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-180˚
Rotation: 0˚-360˚
WDR
D-WDR (105 dB)
Digital noise Reduction
Video compression
Н.265+ / Н.265 / H.264
Bitrate
up to 8Mbps
IVS
Power supply
Power consumption
Case material
Dimensions (mm)
152.1 x 68.3 x 62.9
Weight Net/Gross (g)
390 / 490
Protection
Power surge
TVS 4000V
suppressor
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3.6
3D DNR
Yes
12V DC
3.3W
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

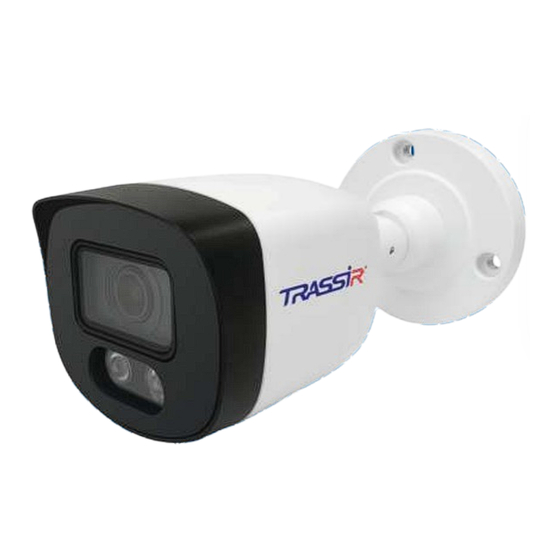

TR-D2B5-noPoE
Outdoor IR Network Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
