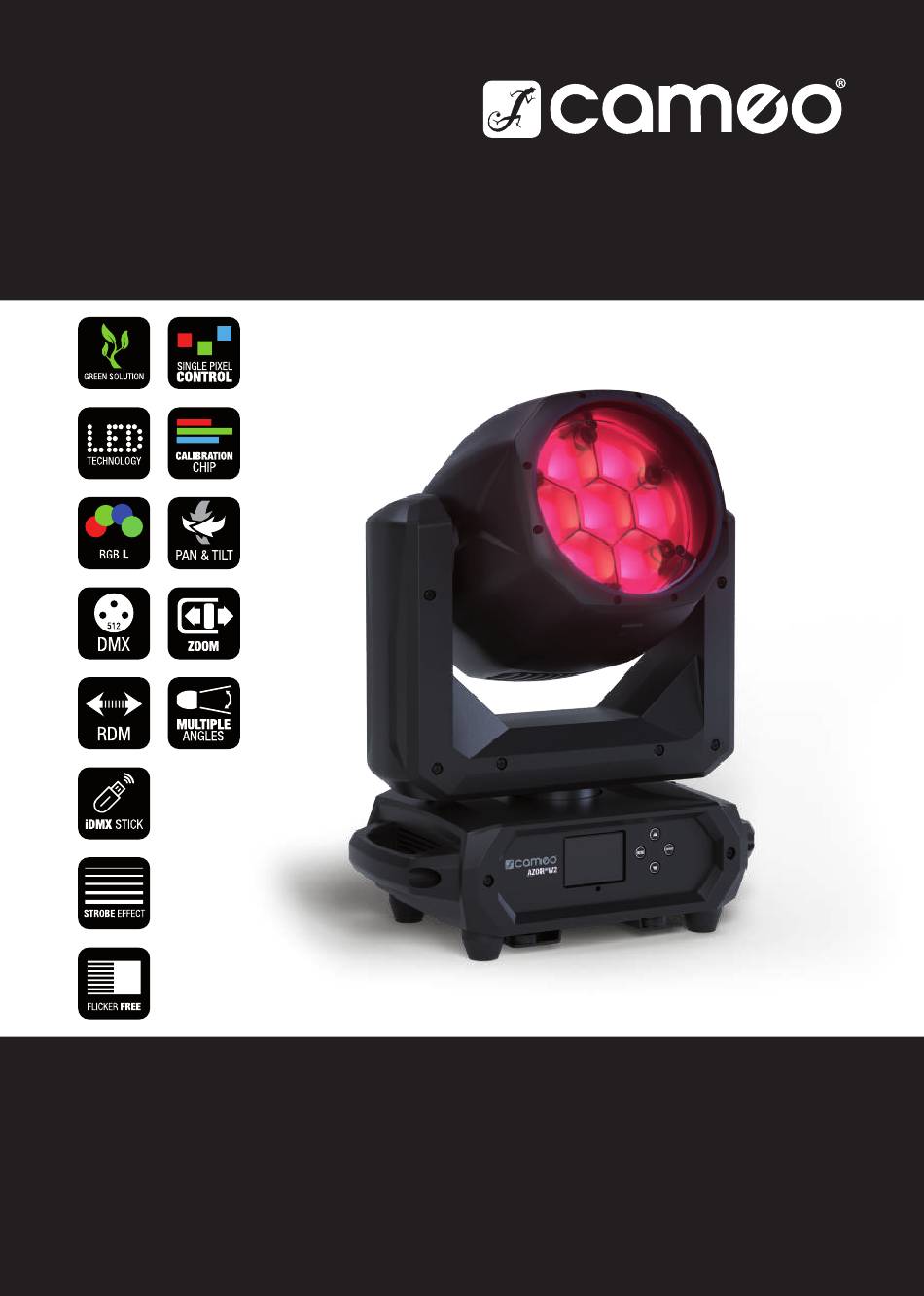

  • Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO AZOR ® LED WASH MOVING HEAD CLAZORW2...

  • Page 2: Table Of Contents

    CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH INFORMATION ON THIS USER MANUAL INTENDED USE DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS NOTES ON PORTABLE INDOOR DEVICES PACKAGING CONTENT INTRODUCTION CONNECTIONS, OPERATING AND DISPLAY ELEMENTS OPERATION SETUP AND INSTALLATION CARE, MAINTENANCE AND REPAIR DIMENSIONS TECHNICAL SPECIFICATIONS...
  • Page 3 FRANÇAIS INFORMATIONS SUR CE MANUEL D'UTILISATION UTILISATION PRÉVUE DÉFINITIONS ET EXPLICATION DES PICTOGRAMMES CONSIGNES DE SÉCURITÉ NOTES SUR LES APPAREILS PORTABLES POUR INTÉRIEUR CONTENU DU CARTON INTRODUCTION CONNECTEURS, UTILISATION ET INDICATEURS UTILISATION MONTAGE ET INSTALLATION ENTRETIEN, MAINTENANCE ET RÉPARATION DIMENSIONS CARACTÉRISTIQUES TECHNIQUES DISTANCE MINIMALE PAR RAPPORT À...
  • Page 4 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO DEFINICJE I OBJAŚNIENIA SYMBOLI INSTRUKCJE BEZPIECZEŃSTWA UWAGI DOTYCZĄCE URZĄDZEŃ PRZENOŚNYCH DO UŻYTKU W POMIESZCZENIACH ZAWARTOŚĆ OPAKOWANIA WPROWADZENIE PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI OBSŁUGA KONFIGURACJA I INSTALACJA PIELĘGNACJA, KONSERWACJA I NAPRAWA WYMIARY SPECYFIKACJE TECHNICZNE MINIMALNA ODLEGŁOŚĆ...

  • Page 5: Information On This User Manual

    This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

  • Page 6: Safety Instructions

    This symbol identifies hazards that can cause electric shock. This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product.
  • Page 7 2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable power cables. 3.
  • Page 8 ATTENTION: 1. Do not install and operate the device in the vicinity of radiators, heat accumulators, ovens, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat. 2.
  • Page 9 The operation of radio systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power). WARNING: Wireless transmitting devices are not suitable for use in sensitive areas in which radio operation can lead to potential detrimental effects.

  • Page 10: Notes On Portable Indoor Devices

    RDM standard (Remote Device Management). Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire spotlight menu.

  • Page 11: Connections, Operating And Display Elements

    TRUE1-compatible mains input socket. Operating voltage 100 - 240 V AC / 50 - 60 Hz. Use the included power cable. POWER OUT TRUE1-compatible mains output socket. Enables power supply to other CAMEO spotlights. Ensure that the total power consumption of all connected devices does not exceed the value specified on the device in amperes (A).

  • Page 12: Operation

    Upon switching on the spotlight, the message "Update Wait" is displayed momentarily, followed by "Welcome to Cameo", the model name and the software version. Thereafter, the motors are reset (Motor Reset Please Wait). After this process, the spotlight is ready for operation and the...
  • Page 13 MAIN SCREEN IN DMX OPERATING MODE In DMX mode, the main screen shows the currently set DMX start address (see illustration). Flas- hing characters indicate that no DMX signal is present. SET DMX START ADDRESS (DMX Address) Starting from the main screen, press MENU to enter the main menu. Now use ⏶ or ⏷ to select the menu item DMX Address and confirm with ENTER.
  • Page 14 A delay can be set for slave units for the time-delayed output of the control signal of the stand-alone operating modes. Activate one of the eight available scenes (Scene 1 - 8) or one of the eight available loops (Loop 1 - 8). The settings are made individually for each scene and each loop and are retained even after the device is restarted.
  • Page 15 SLAVE MODE Standard slave operation: Starting from the main screen, press MENU to enter the main menu. Use the ⏶ or ⏷ buttons to select the Slave menu item, confirm with ENTER, then select slave group 0 and confirm again. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone ->...
  • Page 16 SYSTEM SETTINGS (Settings) Starting from the main screen, press MENU to enter the main menu. Use the ⏶ or ⏷ buttons to select the menu item Settings and confirm with ENTER. This takes you to the submenu (see table). Select submenu items with ⏶ or ⏷, confirm with ENTER, change value or status with ⏶...
  • Page 17 Dimmer Light intensity can be finely adjusted Settings at lower and higher DMX values and (Dim- broadly adjusted at medium DMX mer curve) values Select LED PWM frequency The spotlight responds immediately to changes of the DMX value The spotlight behaves in a similar way (Dimmer to a halogen spotlight with gradual response)
  • Page 18 Operational status Last command is retained in case the DMX The last selected stand-alone operating mode is signal is inter- activated rupted 10 second fade to blackout Activates blackout Full On Mirror pixels Function disabled Mirror pixels horizontally Flip pixels vertically Flip pixels horizontally and vertically Save settings in 3 Save all current settings as user preset A...
  • Page 19 Pre-programmed sequence to test all components Pre-programmed sequence to test all components under maxi- mum load Activate all motors individually with values of 000 to 255 Do not reset service operation time Reset service operation time SYSTEM INFORMATION (System Info) Starting from the main screen, press MENU to enter the main menu.

  • Page 20: Setup And Installation

    QUICKLIGHT Set up a scene quickly and easily using the basic Moving Head functions without an external controller. Starting from the main screen, press MENU to access the main menu. Use ⏶ or ⏷ to select Quicklight and confirm with ENTER. Now select the desired submenu item, confirm, set the value as required and confirm again.

  • Page 21: Care, Maintenance And Repair

    CARE, MAINTENANCE AND REPAIR In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The maintenance requirement depends on the intensity of use and the environment in which it is used. We recommend a visual inspection before each operation.

  • Page 22: Dimensions

    DIMENSIONS (mm) TECHNICAL SPECIFICATIONS Product number: CLAZORW2 Product type: LED moving light Type: Wash light Colour spectrum (Centre LEDs): RGBL Number of centre LEDs: LED type (Centre LEDs): 40 W CCT (Centre LEDs): 2200 K - 8000 K Luminous flux (Centre LEDs): 3000 lm Light intensity: 4100 lx @ 10 m, narrow zoom...
  • Page 23 Control: DMX512, RDM, iDMX stick compatible 19-CH Effect,18-channel HSI, 18-channel RGBL, 23-channel DMX mode: RGBL, 34-channel HSI, 36-channel RGB, 43-channel RGBL, 44-channel RGBL, 54-channel Full Access Pan (fine); Tilt (fine); Dimmer (fine); Strobe Functions; Red (fine); Green (fine); Blue (fine); Lime (fine); Hue (fine); Sat- uration;...

  • Page 24: Minimum Distance To Illuminated Surface

    RDM UID: 0x08A40057XXXX Power cable (1 m) with True1-compatible plug and Additional features: 2 x Omega mounting brackets included MINIMUM DISTANCE TO ILLUMINATED SURFACE This symbol with the distance stated in metres (m) indicates the minimum dis- tance of the light fixture to the illuminated surface. In this example, the distance 0.5 m is 0.5 m.

  • Page 25: Manufacturer's Declarations

    MANUFACTURER’S DECLARATIONS Manufacturer's warranty & limitation of liability Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany E-mail: Info@adamhall.com / +49 (0)6081 / 9419-0 Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf For service requests, please contact your distribution partner. CE conformity Adam Hall GmbH hereby confirms that this product meets the following guidelines (where applicable):...

  • Page 26: Informationen Zu Dieser Bedienungsanleitung

    DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 19CH RGBL Effect Function Values Sub- Group Channel group 000 - 255 0% to 100% Pan fine 000 - 255 Move- Tilt 000 - 255 ment 0% to 100% Tilt...

  • Page 27: Sicherheitshinweise

    057 - 068 Ramp down slow to fast 069 - 079 Ramp down random slow to fast 080 - 102 Random Strobe effect slow to fast Multi- FX Strobe functional Strobe Break effect 5s to 1s (Short 103 - 127 Strobe burst with break) 128 - 250 Strobe slow to fast (<1Hz to 20Hz)
  • Page 28 000 - 005 Effect Pattern Speed Stop Pattern 006 - 127 Effect Pattern Speed slow to fast Position & Effect Pattern Speed fast to slow Speed 128 - 255 (backwards) Zoom 000 - 255 Narrow to Wide Zoom Beam 000 - 005 No function 006 - 007 Blackout while P/T moving On Blackout 008 - 009 Blackout while P/T moving Off...
  • Page 29 120 - 121 PWM 1 (650 Hz) 122 - 123 PWM 2 (1530 Hz) 124 - 125 PWM 3 (3600 Hz) PWM Fre- quency 126 - 127 PWM 4 (12000 Hz) 128 - 129 PWM 5 (18900 Hz) 130 - 131 PWM 6 (25000 Hz) 132 - 133 RAW 134 - 135 Factory Calibration Color Cal-...
  • Page 30 Dimmer 000 - 255 0% to 100% Dimmer Intensity Dimmer 000 - 255 fine 000 - 005 Open 006 - 010 Closed Ramp up/down slow 011 - 022 to fast Ramp up/down ran- 023 - 033 dom slow to fast 034 - 045 Ramp up slow to fast Ramp up random slow 046 - 056...

  • Page 31: Hinweise Für Ortsveränderliche Indoor-Geräte

    006 - 006 Warm white 007 - 046 Warm white to 2700K 047 - 047 Bulb White (2700K) 048 - 087 2700K to 3200K Color 088 - 088 Halogen White (3200K) Tem- 089 - 128 3200K to 4000K perature 129 - 129 Neutral White (4000K) (affects 130 - 169 4000K to 5600K Color...

  • Page 32: Anschlüsse, Bedien- Und Anzeigeelemente

    Dimmer 000 - 255 0% to 100% FX All 000 - 005 Open 006 - 010 Closed Ramp up/down slow 011 - 022 to fast Ramp up/down ran- 023 - 033 dom slow to fast 034 - 045 Ramp up slow to fast Ramp up random slow 046 - 056 to fast...
  • Page 33 044 - 045 Invert Pan Off 046 - 047 Invert Tilt On Move- ment 048 - 049 Invert Tilt Off 050 - 057 No Function 058 - 059 Pixel Mirroring Off Pixel Mirroring Hori- 060 - 061 zontal Pixel Mirroring 062 - 063 Pixel Mirroring Vertical Pixel Mirroring Hori- zontal + Vertical...

  • Page 34: Bedienung

    Dimmer Curve Dimmer 170 - 171 S-Curve Curve 172 - 221 No function 222 - 223 Reset Pan / Tilt 224 - 233 No function Reset 234 - 235 Reset Head 236 - 237 Reset All 238 - 239 No function Control 240 - 241 Load Factory Defaults 242 - 243 No function...
  • Page 35 Strobe Break effect 5s to 1s 103 - 127 (Short burst with break) Multi- Strobe Strobe slow to fast (<1Hz to functional Strobe Functions 128 - 250 20Hz) Strobe 251 - 255 Open 000 - 255 0% to 100% Red fine 000 - 255 Green 000 - 255...
  • Page 36 000 - 005 No function 006 - 013 Red 014 - 021 Amber 022 - 029 Orange 030 - 037 Yellow 038 - 045 Green 046 - 053 Turquoise Color Color 054 - 061 Cyan Mixing 062 - 069 Blue 070 - 077 Lavender 078 - 085 Mauve 086 - 093 Magenta...
  • Page 37 Strobe slow to fast (<1Hz to Multi- 128 - 250 20Hz) FX Strobe functional Strobe 251 - 255 Open 000 - 005 Off 006 - 026 1 027 - 047 2 048 - 068 3 069 - 089 4 090 - 110 5 Pattern 111 - 131 6 Selection...
  • Page 38 000 - 005 Effect Pattern Speed Stop Pattern Effect Pattern Speed slow to 006 - 127 Position fast & Speed Effect Pattern Speed fast to 128 - 255 slow (backwards) Pattern 000 - 005 0s (Off) Pattern Transition 006 - 255 0,1s to 5s Pattern 000 - 005 off Fade/...
  • Page 39 Back- ground 000 - 255 Green Back- 0% to 100% ground 000 - 255 Green fine Back- ground 000 - 255 Blue 0% to 100% Back- ground 000 - 255 Blue fine Back- ground 000 - 255 Lime 0% to 100% Back- ground 000 - 255...
  • Page 40 252 - 255 Cold white 000 - 000 Off 001 - 127 Magenta -> Neutral 128 - 128 neutral 129 - 255 Neutral -> Green Back- Back- ground ground Color 000 - 005 No function Functions Mixing 006 - 013 Red 014 - 021 Amber 022 - 029 Yellow warm 030 - 037 Yellow...
  • Page 41 Zoom 000 - 255 Narrow to Wide Zoom Beam Zoom 000 - 255 fine 000 - 005 No function 006 - 007 Blackout while P/T moving On Blackout 008 - 009 Blackout while P/T moving Off 010 - 024 No function 025 - 025 Record User Scene 1 026 - 026 Record User Scene 2 027 - 027 Record User Scene 3...
  • Page 42 120 - 121 PWM 1 (650 Hz) 122 - 123 PWM 2 (1530 Hz) 124 - 125 PWM 3 (3600 Hz) PWM Fre- quency 126 - 127 PWM 4 (12000 Hz) 128 - 129 PWM 5 (18900 Hz) 130 - 131 PWM 6 (25000 Hz) 132 - 133 RAW 134 - 135 Factory Calibration Color Cal-...

  • Page 43: Aufstellung Und Montage

    Dimmer 000 - 255 0% to 100% Dimmer Intensity Dimmer 000 - 255 fine 000 - 005 Open 006 - 010 Closed 011 - 022 Ramp up/down slow to fast Ramp up/down random slow 023 - 033 to fast 034 - 045 Ramp up slow to fast 046 - 056 Ramp up random slow to fast 057 - 068 Ramp down slow to fast Strobe...
  • Page 44 Strobe slow to fast (<1Hz to Multi- 128 - 250 20Hz) FX Strobe functional Control Strobe 251 - 255 Open Zoom 000 - 255 Narrow to Wide Zoom Beam Zoom fine 000 - 255 000 - 005 No function 006 - 007 Blackout while P/T moving On Blackout 008 - 009 Blackout while P/T moving Off 010 - 024 No function...

  • Page 45: Abmessungen

    120 - 121 PWM 1 (650 Hz) 122 - 123 PWM 2 (1530 Hz) 124 - 125 PWM 3 (3600 Hz) PWM Fre- quency 126 - 127 PWM 4 (12000 Hz) 128 - 129 PWM 5 (18900 Hz) 130 - 131 PWM 6 (25000 Hz) 132 - 133 RAW 134 - 135 Factory Calibration Color Cal-...
  • Page 46 Green 3 000 - 255 0% to 100% Color Blue 3 000 - 255 0% to 100% Mixing Pixel 3 Lime 3 000 - 255 0% to 100% Red 4 000 - 255 0% to 100% Color Green 4 000 - 255 0% to 100% Mixing Blue 4 000 - 255 0% to 100%...

  • Page 47: Mindestabstand Zur Beleuchteten Fläche

    Random Strobe effect slow to 080 - 102 fast Strobe Break effect 5s to 1s Multi- 103 - 127 Strobe (Short burst with break) functional Strobe Functions Strobe Strobe slow to fast (<1Hz to 128 - 250 20Hz) 251 - 255 Open 000 - 255 0% to 100% Red fine...
  • Page 48 006 - 013 Red 014 - 021 Amber 022 - 029 Orange 030 - 037 Yellow 038 - 045 Green 046 - 053 Turquoise 054 - 061 Cyan 062 - 069 Blue 070 - 077 Lavender Color 078 - 085 Mauve Color Mixing 086 - 093 Magenta...
  • Page 49 000 - 005 No function 006 - 007 Blackout while P/T moving On Blackout 008 - 009 Blackout while P/T moving Off 010 - 024 No function 025 - 025 Record User Scene 1 026 - 026 Record User Scene 2 027 - 027 Record User Scene 3 User 028 - 028 Record User Scene 4...
  • Page 50 132 - 133 RAW 134 - 135 Factory Calibration Color Cal- ibration 136 - 137 User Calibration 138 - 139 Smart Calibration 140 - 141 Display Always On Display Functions 142 - 143 Display Off after 20s 144 - 163 No function 164 - 165 Dimmer Curve Linear 166 - 167 Dimmer Curve Exponential Dimmer...
  • Page 51 Red 5 000 - 255 0% to 100% Color Green 5 000 - 255 0% to 100% Mixing Blue 5 000 - 255 0% to 100% Pixel 5 Lime 5 000 - 255 0% to 100% Red 6 000 - 255 0% to 100% Color Single Green 6...
