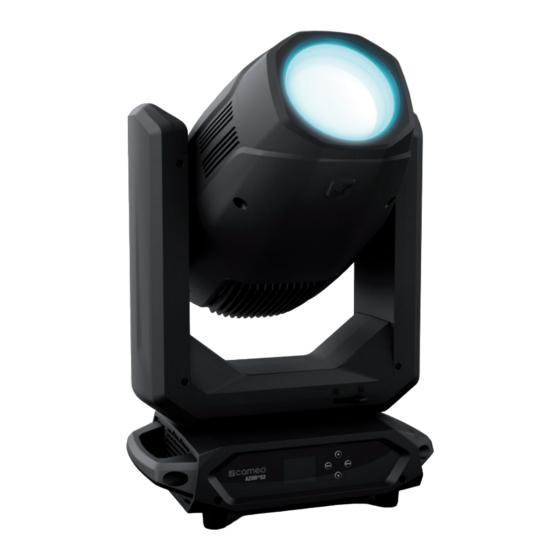

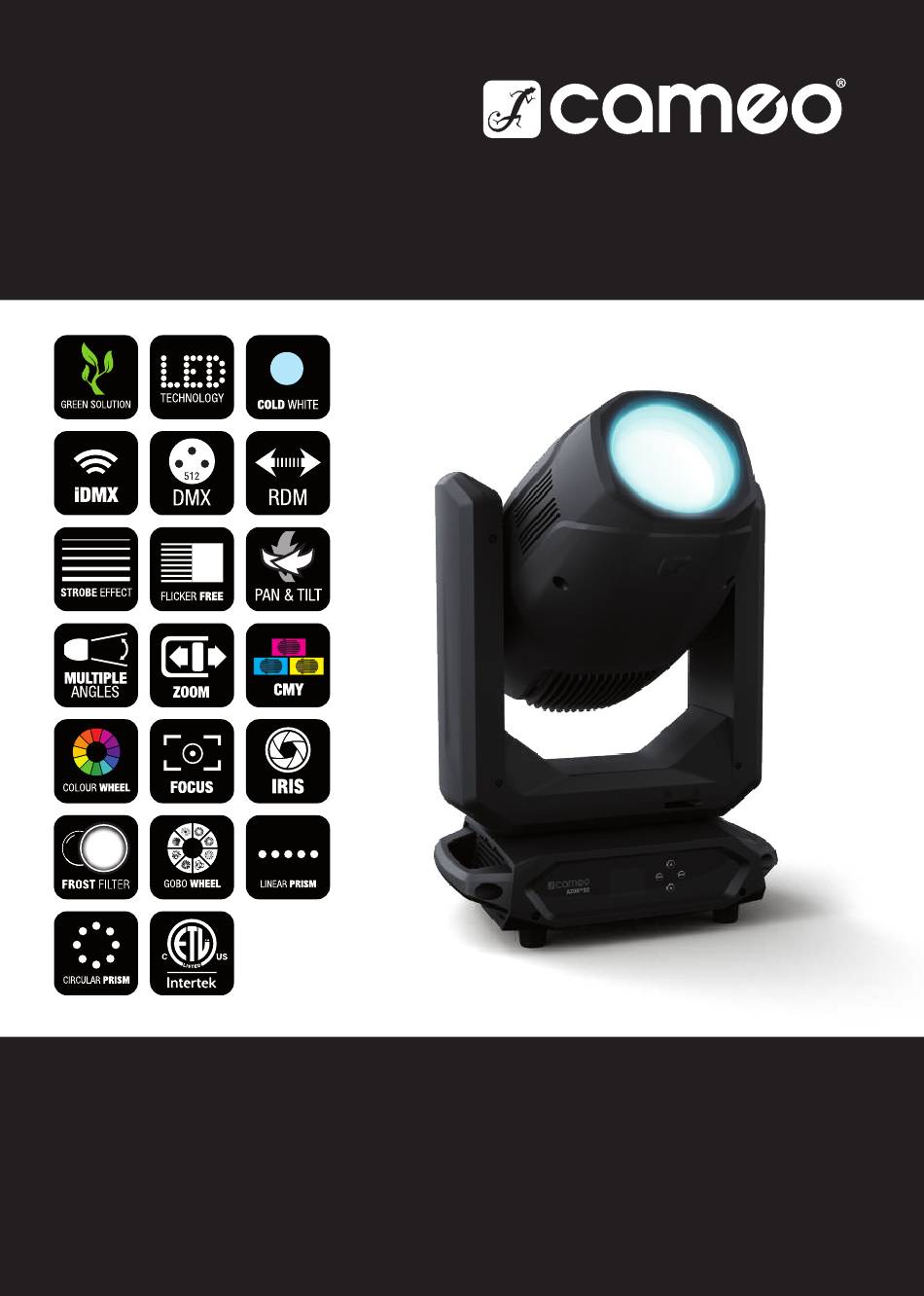

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO AZOR ® COMPACT SPOT MOVING HEAD CLAZORS2...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH INFORMATION ON THIS USER MANUAL INTENDED USE DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS NOTES FOR MOBILE INDOOR DEVICES INCLUDED INTRODUCTION CONNECTIONS, OPERATING AND DISPLAY ELEMENTS OPERATION SETUP AND INSTALLATION CARE, MAINTENANCE AND REPAIR DIMENSIONS (MM) TECHNICAL DATA... - Page 3 DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX...
-
Page 4: Information On This User Manual
This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is avail- able on our website CAMEOLIGHT.COM. -
Page 5: Safety Instructions
This symbol identifies hazards that can cause electric shock. This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product. - Page 6 ATTENTION: 1. Do not switch on the device if it has been exposed to extreme temperature fluctu- ations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature. 2.
- Page 7 CAUTION: 1. Moving components such as mounting brackets may become jammed. 2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden movement of the device can cause shock reactions.
-
Page 8: Notes For Mobile Indoor Devices
Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged. Product includes: X 1 x AZOR S2 LED moving head X 2 x Omega mounting brackets X 1x power cable... -
Page 9: Connections, Operating And Display Elements
RDM terminals via an RDM-capable controller, such as the optionally available Cameo UNICON (product number CLIREMOTE). Cameo UNICON also provides access to the entire spotlight menu. CONNECTIONS, OPERATING AND DISPLAY ELEMENTS... - Page 10 TRUE1-compatible mains input socket. Operating voltage 100–240 V AC/50–60 Hz. Use the power cable provided. POWER OUT TRUE1-compatible mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.
- Page 11 ENTER – press ENTER to access the menu levels, to make value changes, and to access the submenus. Confirm value or status changes by pressing ENTER. – Select individual menu items in the main menu (DMX address, DMX mode etc.) and in the submenus.
-
Page 12: Operation
When the spotlight is started, “Update Wait” briefly appears on the display, then “Welcome to Cameo”, the model name and the software version. The motors are then reset (Motor Reset Please Wait). After this process, the spotlight is operational and the previously activated operating mode is launched. - Page 13 STAND ALONE MODE (Stand Alone) Four individually adjustable scenes are available in stand alone mode. Starting from the main display, press MENU to enter the main menu. Use to select the menu item Stand Alone and confirm with ENTER. Now use to select the desired preset and confirm with ENTER.
- Page 14 SLAVE MODE Starting from the main display, press MENU to enter the main menu. Use to select the menu item Slave and confirm with ENTER. Connect the slave and master unit (same model, same software version) using a DMX cable, and activate a stand alone mode on the master unit. The slave unit will now follow the master unit.
- Page 15 Display Display Display No display rotation settings Reverse Display is rotated by 180° (e.g. for overhead installation) Display Always On permanently Off Timer Off after Deactivates after approximately 20 seconds of 20 s inactivity Autolock Autolock function disabled Operating elements LOCKED after approx. 30 seconds without input.
- Page 16 Wheels Adjust Gobo Position Clockwise Gobo wheel always turns clock- Wheel wise gobo Shortest way Gobo wheel turns the shortest wheels distance Move- Snap Gobo wheel jumps directly back colour ment to the desired gobo when the wheel relevant value is reached Scroll Continuous rotation of the gobo wheels...
- Page 17 Service Reset Store User Save user settings A settings Default default A User Save user settings B default B User Save user settings C default C Load Factory Reset to factory settings: Perform reset with EN- Default Default TER, cancel with MENU User Reset to User A: Perform reset with ENTER, cancel default A...
-
Page 18: Setup And Installation
Sensor Temperature xx°C / xx°F Base xx°C / xx°F Temperature unit °C degrees Celsius °F degrees Fahrenheit Fan Speed Fan revolutions LED xxxxRPM Motor Fan revolutions motors xxxxRPM Base Fan revolutions device base xxxxRPM Operation Hours Operation Time xxxx:xx h Total operating time LED Time xxxx:xx h... -
Page 19: Care, Maintenance And Repair
CARE, MAINTENANCE AND REPAIR In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used. We generally recommend a visual inspection before each operation. -
Page 20: Dimensions (Mm)
DIMENSIONS (mm) -
Page 21: Technical Data
TECHNICAL DATA PRODUCT NUMBER: CLAZORS2 Product type: LED moving light Type: Spot LED colour spectrum: Cool white 6800 K Number of LEDs: LED type: 300 W Beam angle (half-peak 5° – 50° divergence): Colour mixing system: Number of colours: 8 + open and continuously variable colour wheel positioning Number of gobos: 11 fixed + 8 rotatable &... -
Page 22: Minimum Distance To Illuminated Surface
PRODUCT NUMBER: CLAZORS2 Minimum distance to illuminated surface: Minimum distance to normally flammable 0.5 m materials: Housing material: Metal, ABS Housing colour: Black IP protection class: IP20 Housing cooling: Temperature-controlled fan Dimensions (W x H x D, 372 x 601 x 238 mm without bracket): Weight: 19.7 kg... -
Page 23: Disposal
DISPOSAL Packaging: 1. Packaging can be fed into the reusable material cycle using the usual disposal methods. 2. Please separate the packaging in accordance with the disposal laws and recy- cling regulations in your country. Device: 1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. -
Page 24: Manufacturer's Declarations
MANUFACTURER’S DECLARATIONS MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf Contact your distribution partner for service. CE CONFORMITY Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applica- ble) -
Page 25: Informationen Zu Dieser Bedienungsanleitung
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 21CH 24CH 28CH Stan- Basic dard tended Function Values Subgroup Group 000 - 255 0% to 100% Pan fine 000 - 255 Movement Tilt 000 - 255 0% to 100%... -
Page 26: Sicherheitshinweise
000 - 000 Open Open -> Deep 001 - 020 021 - 021 Deep Red Deep Red -> 022 - 041 Medium Blue 042 - 042 Medium Blue Medium Blue -> 043 - 062 Deep Green 063 - 063 Deep Green Deep Green ->... - Page 27 057 - 072 Gobo 3 -> Gobo 4 073 - 073 Gobo 4 074 - 089 Gobo 4 -> Gobo 5 090 - 090 Gobo 5 091 - 106 Gobo 5 -> Gobo 6 107 - 107 Gobo 6 108 - 123 Gobo 6 -> Gobo 7 124 - 124 Gobo 7 125 - 140 Gobo 7 ->...
- Page 28 Gobo Rotation 129 - 191 fast to slow Gobo Rotation 192 - 192 Gobo Wheel 1 Stop Rotating Gobo Rotation Gobowheel 193 - 255 slow to fast (backwards) Gobo 1 Gobo Rotation 000 - 255 Rotation fine fine 000 - 005 Open 006 - 009 Open ->...
-
Page 29: Hinweise Für Ortsveränderliche Indoor-Geräte
Gobo Shake 5 168 - 170 (slow -> fast) Gobo Shake 6 171 - 173 (slow -> fast) Gobo Shake 7 174 - 176 (slow -> fast) Gobo Shake 8 177 - 179 (slow -> fast) Gobo Shake 9 180 - 182 (slow ->... -
Page 30: Einführung
000 - 005 Prism Off Prism 006 - 091 Prism 1 Selection 092 - 175 Prism 2 176 - 255 Prism 1 & 2 Prism Position 0° 000 - 128 to 540° Prism Rotation 129 - 191 fast to slow Prism 1 Prism Rotation 192 - 192... -
Page 31: Anschlüsse, Bedien- Und Anzeigeelemente
Record User 029 - 029 Preset 5 Record User 030 - 030 Preset 6 User Record User Colors 031 - 031 Preset 7 Record User 032 - 032 Preset 8 033 - 041 No function 042 - 043 Invert Pan On 044 - 045 Invert Pan Off 046 - 047 Invert Tilt On Movement... - Page 32 Display Always 140 - 141 Display Display Off after Functions 142 - 143 144 - 147 No function 148 - 149 Color Wheel Snap Color Wheel 150 - 151 Scroll Wheel 152 - 153 Gobo Wheel Snap Movement Gobo Wheel 154 - 155 Scroll Gobo Color...
-
Page 33: Bedienung
Load Factory 240 - 241 Device Defaults (2*) settings (All 242 - 243 No function settings Load User Default executed are 244 - 245 Load A (2*) after holding Default Control Load User Default value for 3 246 - 247 B (2*) seconds) Load User Default... - Page 34 CAMEOLIGHT.COM Adam Hall GmbH Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | United Kingdom REV: 04...
