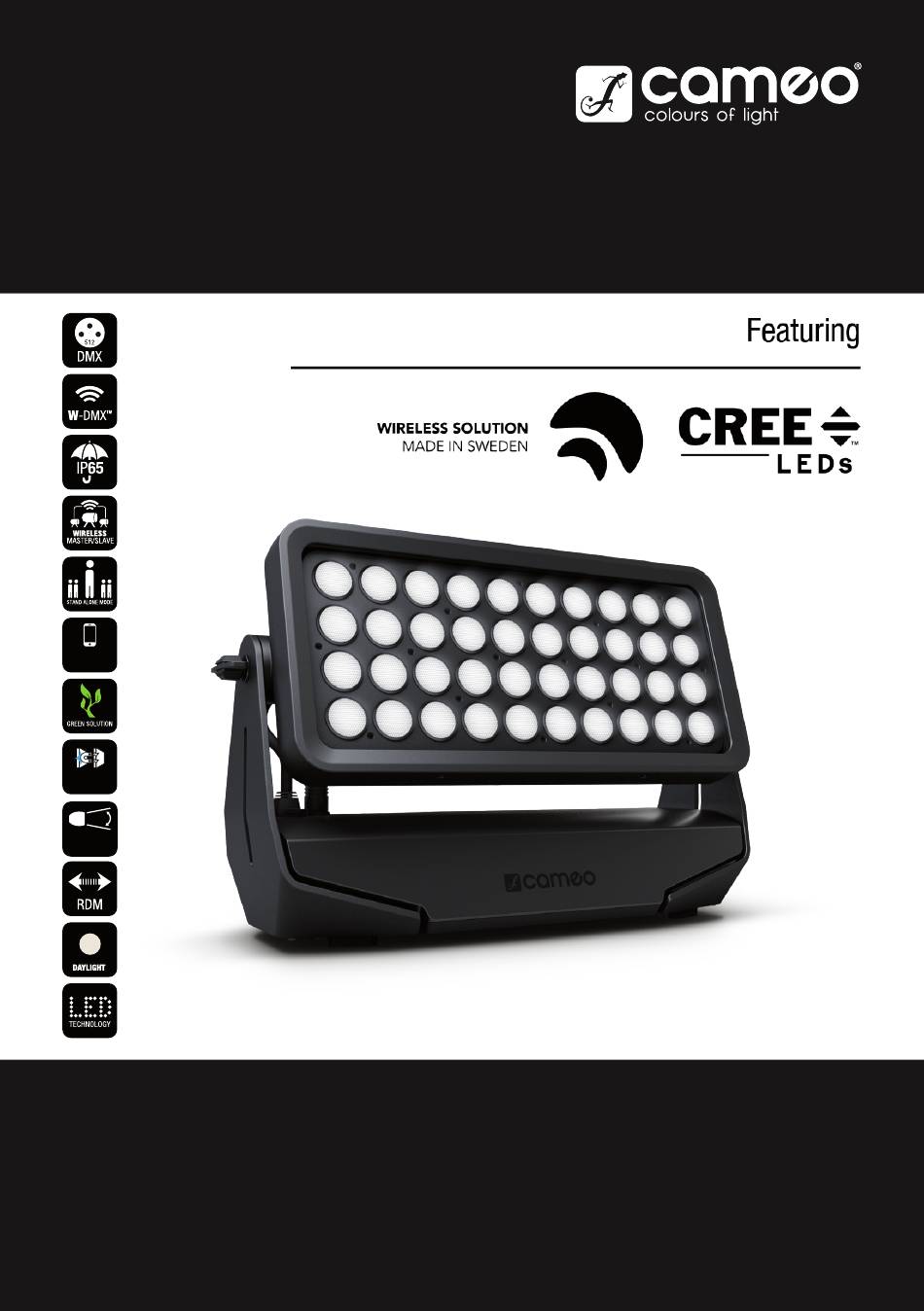

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO iDMX ® CONTROL SNAPMAG ® TECHNOLOGY MULTIPLE ANGLES ZENIT W600 D ® LED OUTDOOR WASHLIGHT CLZW600-D...
- Page 2 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ESPAÑOL PREVENTIVE MEASURES INTRODUCTION MEDIDAS DE SEGURIDAD 39-40 INTRODUCCIÓN 40-41 CONNECTIONS, OPERATING AND DISPLAY ELEMENTS OPERATION 6-10 CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS OPTIONAL ACCESSORIES DE VISUALIZACIÓN 41-42 FUNCIONAMIENTO 42-46 DMX TECHNOLOGY...
- Page 3 We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.
- Page 4 3. Do not look at the beam directly with optical instruments such as magnifiers. 4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used. INTRODUCTION ZENIT W600 D OUTDOOR LED WASHLIGHT CLZW600-D CONTROL FUNCTIONS: 1-channel, 2-channel, 3-channel, 4-channel, 6-channel DMX control...
- Page 5 POWER OUT IP65 power output socket with rubber sealing cap. Facilitates power supply to other CAMEO spotlights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).
- Page 6 PLEASE NOTE: • As soon as the spotlight is correctly connected to the power supply, the following will be displayed in succession: “Welcome to Cameo”, the model name and the software version. After this process, the lamp is ready for operation and starts in the previously enabled mode.
- Page 7 W-DMX™ STATUS W-DMX™ W-DMX™ W-DMX™ W-DMX™ W-DMX™ W-DMX™ and W-DMX™ and deactivated activated as activated as activated and activated as transmission transmission receiver, receiver and device paired, receiver and mode G3 mode G4S not paired device paired, no DMX signal device paired, activated activated...
- Page 8 CONFIGURING STANDALONE MODE Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to select the menu item “Stand Alone” (observe arrow) and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with ENTER. The display will now show a three-digit number field, and you can use UP and DOWN to configure the desired value between 000 and 255.
- Page 9 Display Reverse Flip display Rotate display by 180° (e.g. for overhead installation) No display rotation Display Backlight Display lighting on permanently Deactivation after approximately 1 minute of inactivity DMX Fail operating status Hold Last command is retained when DMX signal Blackout Activates blackout fault occurs...
- Page 10 SYSTEM INFORMATION (System Info) Press MODE to access the device settings selection menu (--- Menu ---). Using the arrow keys, select the menu item "System Info" (observe arrow) and confirm with ENTER. ------------------- Menu ------------------- DMX Address DMX Mode Stand Alone Slave Settings System Info...
- Page 11 OPTIONAL ACCESSORIES CLZW6004B CLZW600SMLSD20 Flap – tool-free mounting thanks to threaded locking bolts, safety 25° diffuser cable included Tool-free mounting thanks to SNAPMAG technology ® CLZW600SMLSD40 CLZW600SMLSD100 45° diffuser 100° diffuser Tool-free mounting thanks to SNAPMAG technology Tool-free mounting thanks to SNAPMAG technology ®...
- Page 12 DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN"...
- Page 13 TECHNICAL DATA Model name: CLZW600-D Product Type: LED wash light Type: Outdoor spotlight Colour spectrum LED: Daylight 5600K No. of LEDs: LED type: 18 W CREE LED PWM frequency 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable) Dispersion: 21°...
- Page 14 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation CE Compliance Adam Hall GmbH states that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017...
- Page 15 DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 1-CHANNEL-MODE Channel Function Values Description Dimmer Dimmer 0 - 100% 2-CHANNEL-MODE Channel Function Values Description Dimmer Dimmer 0 - 100% Dimmer Fine Dimmer Fine 0 - 100% 3-CHANNEL-MODE Channel Function...
- Page 16 no function Dimmer Response LED (hold 5s) Dimmer Response Halogen (hold 5s) Fan Auto (hold 5s) Fan Max (hold 5s) Fan Silent (hold 5s) Device Settings LED Frequency 800 Hz (hold 5s) LED Frequency 1200 Hz (hold 5s) LED Frequency 2000 Hz (hold 5s) LED Frequency 3600 Hz (hold 5s) LED Frequency 12 kHz (hold 5s) LED Frequency 25 kHz (hold 5s)
- Page 20 CAMEOLIGHT.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Tel. +49(0)6081/9419-0 | Fax +49(0)6081/9419-1000 web : www.adamhall.com | e-mail : mail@adamhall.com REV: 02...
