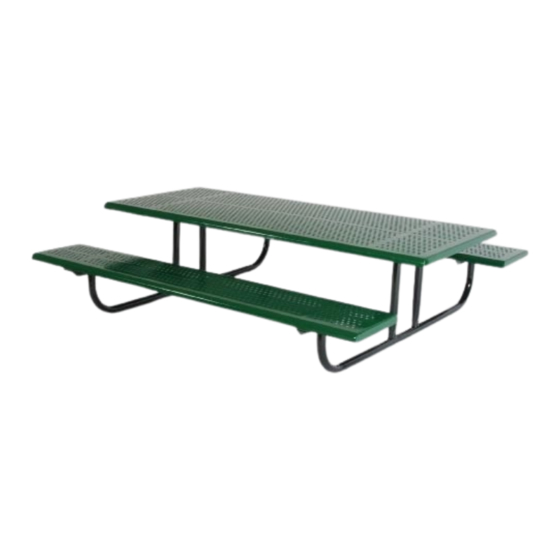

SportsPlay 8 Early Years Picnic Table 602-702 Assembly Instructions

Important
 Please keep a copy of these instructions in your files. There is
important replacement part information in them that will assist
you in the event a part is ever needed. Refer to the style and
frame index's in order to correctly identify your part numbers
should you need to replace them
Assembly Information

Other than when a specific step in the assembly instructions
specifies "to not apply lock tite (8)", we recommend applying a
small amount to all assembly bolts.
 Hand-tighten all bolts during the initial assembly (unless
specifically told to tighten completely in the instructions). Once
the unit is fully assembled and square you should completely
tighten them.

Verify that all parts were received by comparing the parts
received to the component list on page one.

If your product mounts to something (surface mount, in ground
or wall mount) you will typically assemble the product before
drilling or digging holes in order to ensure proper layout.

CONTACT YOUR DISTRIBUTOR ABOUT ANY PARTS YOU ARE
MISSING. You must report missing parts within 10 days of
delivery.
General Maintenance
 It is recommended that you inspect product monthly for loose
bolts and broken parts. If replacement parts are needed please
refer to these instructions for part numbers and descriptions
then call your distributor to order replacements.
Ve rsion: 8' early/pic.v1
8' Early Years Picnic Table
Assembly Instructions
1. Assemble Table prior to digging holes and mounting in
concrete.
2. Attach the Table Top (1) to the Table Legs (2) by inserting 3/8"
x 1" Button head bolts (5) and 3/8" washers (7) through the
bottom of the mounting plate on the Table Frame and into the
factory installed nuts attached to the brackets on the bottom
of the table top (Detail A), do not completely tighten the bolts
at this time.
3. Using the 3/8" x 1" (5) bolts and 3/8" washers (7) attach the
seats (3) to the frame (2) by inserting bolts through the
bottom of the mounting plates an the frame and into the
factory installed nuts attached to the bracket on the bottom of
the seat (Detail B), do not completely tighten bolts at this time.
4 . Attach the Braces (4) to bottom side of the Table Top (1) using
the 3/8" x 1 ¼" bolt (6), 3/8 washer (7) and 3/8 lock nut (8) to
the holes in the center support rib on the bottom of the table
top (Detail D). It is not necessary to apply lock tite to these
bolts.
5. Next attach the Braces (4) to the tab welded in the center of
each Table Leg (2) using the 3/8 x 1" bolts (5), 3/8" washer (7)
and 3/8 locknut (8) (Detail C). Completely tighten these bolts
using the 7/32 Allen wrench provided. It is not necessary to
apply lock tite to these bolts.
6. Completely tighten the bolts that attach the Braces (4) to the
Table Legs (2).
7. Finally, square the unit in all directions and tighten the seats
and table to the frame (Detail's A and B).
8. Dig holes based on table layout and fill with concrete while
table is sitting in holes.
www.sportsplayinc.com
For Part Numbers: 602-702, 601-
702, 602-705 and 601-705
2
