PLEASE RETAIN THIS INSTRUCTION SHEET IN YOUR FILES.
PARTS INFORMATION.
INSTRUCTIONS.
IT IS IMPORTANT TO USE AND MAINTAIN ALL PUBLIC PLAYGROUND EQUIPMENT PROPERLY.
EQUIPMENT, WHICH IS IMPROPERLY MAINTAINED, CAN CAUSE SERIOUS INJURY.
INSPECTIONS, MAINTENANCE, REPAIR AND/OR REPLACEMENT OF DAMAGED PARTS IS NECESSARY FOR
SAFE OPERATION OF EQUIPMENT AND SAFETY OF USERS.
UNDER ALL PLAYGROUND EQUIPMENT.
THE CONSUMER PRODUCT SAFETY COMMISSION, INCLUDE "A HANDBOOK FOR PUBLIC PLAYGROUND
SAFETY."
YOU CAN RECEIVE YOUR FREE COPY BY CALLING 1-301-504-7908.
PACKING LIST
1 CTN
1
4 513-203
1 BDL
2 513-202
1 WF
1 513-505
1 WF
1 513-505
2 BDL
2 513-618
1 CTN
SportsPlay Equipment, Inc

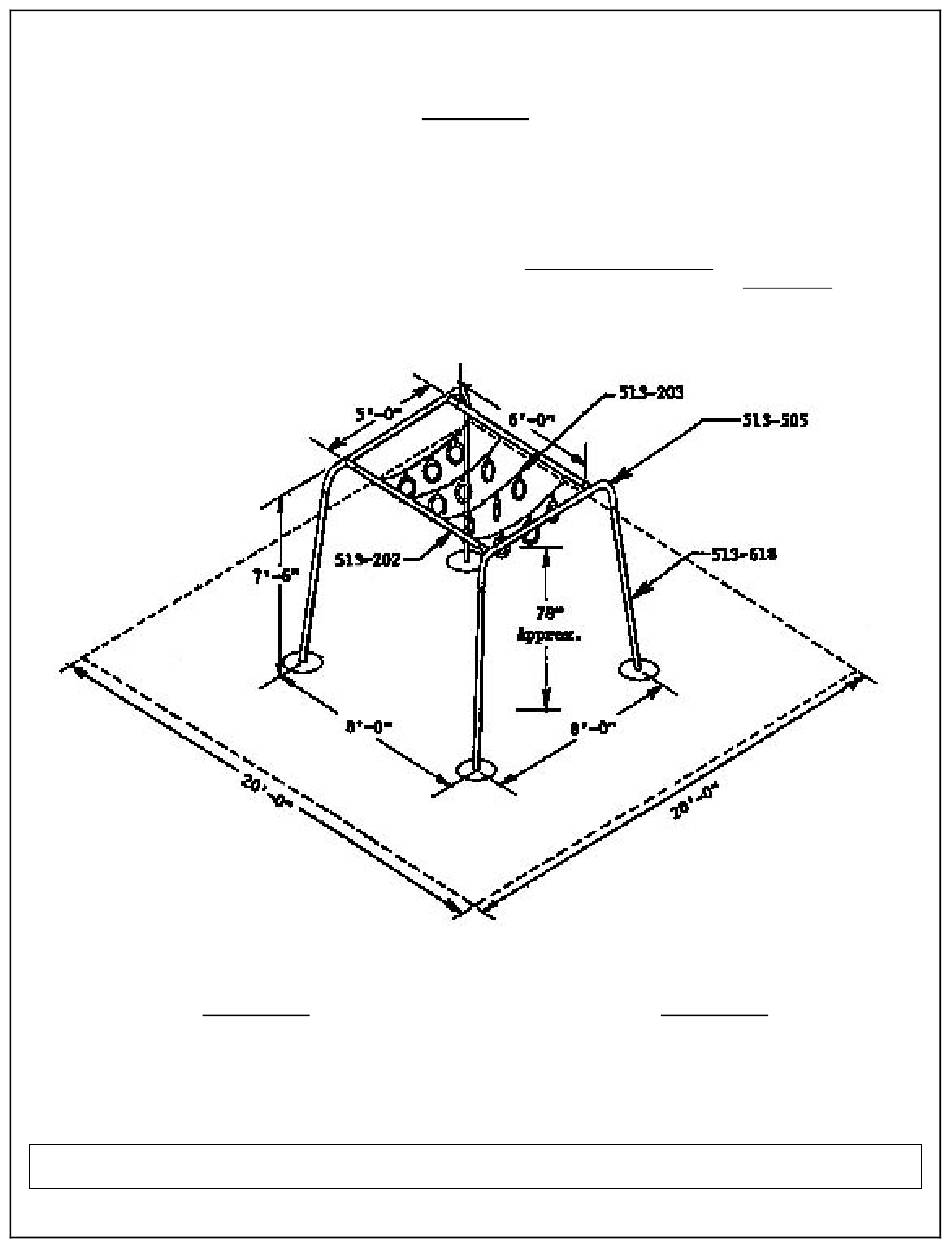

511-115 Chain Ring Ladder
* IMPORTANT *
ALL EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THESE
APPROPRIATE PUBLICATIONS, AVAILABLE AT NO CHARGE, FROM
Hardware Bag
Ring & Chain Assy
Net Bars
End Fitting
End Fitting
Legs
3 BDL
2 WF
., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140
IT CONTAINS IMPORTANT REPLACEMENT
RESILIENT SURFACING SHOULD BE USED
8
196-86
1
416-400
1
805-532
1
805-534
1
Maintenance Checklist
6 TOTAL PCS
WT 225#
Page
Rev 04/07/03
PLAYGROUND
PERIODICAL
HARDWARE BAG
½" x ¾" Socket Set Screw
Socket Key
Warning Label
SportsPlay Label
CLASS 70
1 of 1
