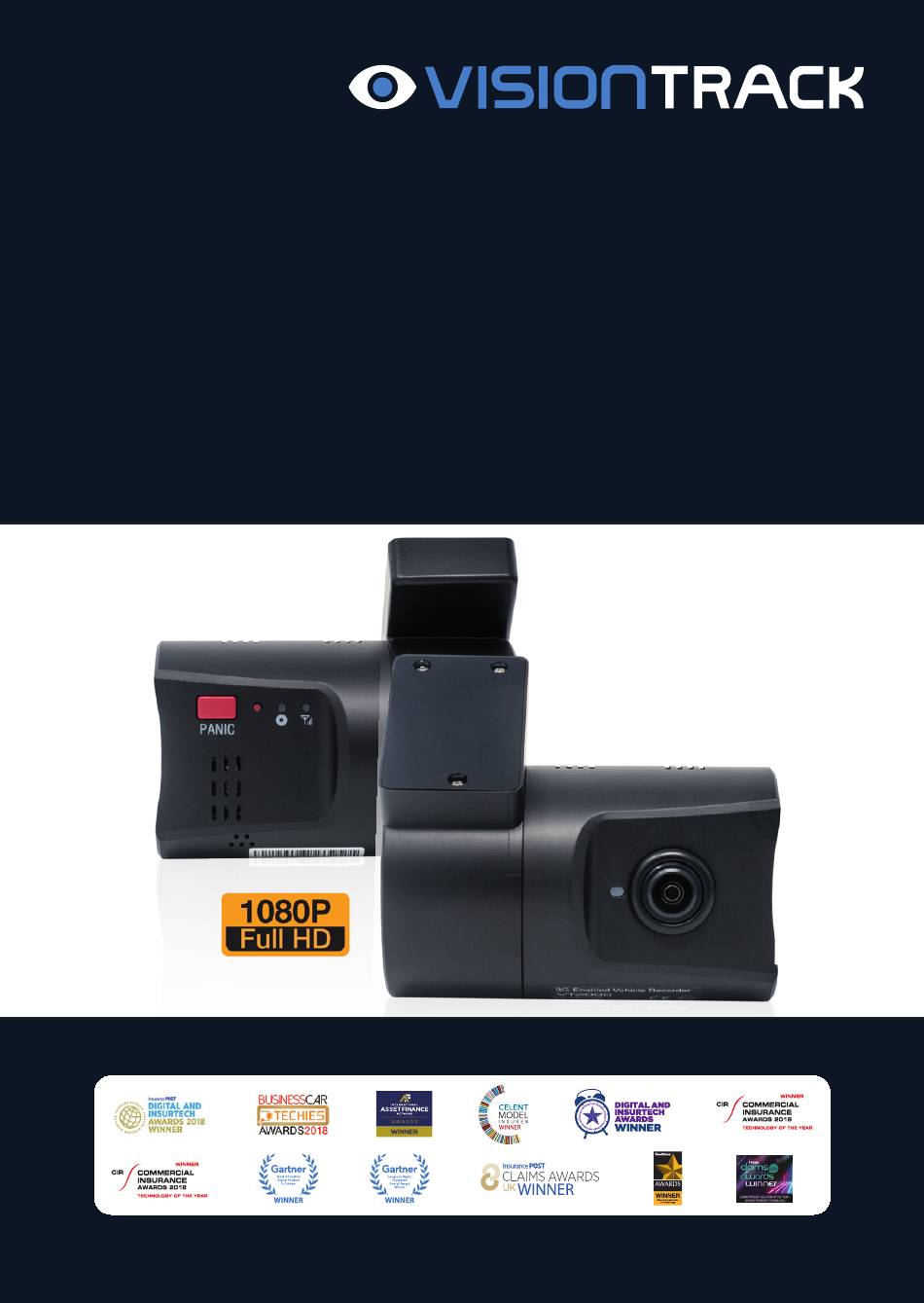

- Page 1 THE NEXT GENERATION OF TELEMATICS AND INTEGRATED CAMERA SOLUTIONS VT2000 INSTALLATION GUIDE THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...
-
Page 2: Key Features
VT2000 INSTALLATION GUIDE Overview VT2000 is a full-HD 1080p connected vehicle telematics camera, featuring instant remote cloud upload, live view snapshots, automatic health checking, built-in GPS/GLONASS, designed to deliver high-quality videos of incidents instantly to our data platform. Key Features: Industry-leading, connected Provides First Notification... -
Page 3: What's In The Box
VT2000 INSTALLATION GUIDE What’s in the box: 1. VT2000 Vehicle Recorder 2. VT2000 Power Kit Cable 3M™ Pad (x2) User Guide Security Seal (x2) Wire Splice Clips (x5) 01246 225 745... - Page 4 VT2000 INSTALLATION GUIDE VT2000 Details: Windscreen Bracket (GPS/GLONASS module inside) Camera Lens Power Cable (0.95m) G-Sensor calibration button PANIC button Record LED Blue LED Communication LED Green LED 01246 225 745...
-
Page 5: Installation
VT2000 INSTALLATION GUIDE VT2000 Installation: Provided is a 3M™ adhesive pad, please attach to the VT2000 bracket. Once attached, press firmly onto the windscreen. (See page 5 for mounting position) Adjust the bracket on the VT2000 up or down, depending on the specific angle of your windscreen. - Page 6 VT2000 INSTALLATION GUIDE IMPORTANT: Degrease and clean windscreen before attaching. After the windscreen is clean, secure the VT2000 behind the rear-view Windscreen mirror, below the windscreen tint. Place the camera as high on the Tint VT2000 VT2000 windscreen as possible, but still within the windscreen wiper area.
- Page 7 VT2000 INSTALLATION GUIDE VT2000 Wiring: Line up the arrows on the cables to connect the VT2000 with the power kit cable. Once the arrows are lined up, push together and twist the silver plate to secure connection. After connecting the power kit cable to the VT2000 power lead, fix...
- Page 8 OPTIONAL: VT-PANIC BUTTON & VT PANIC LED In the event of an incident, the VT-PANIC BUTTON allows drivers to send alerts to the VisionTrack software platform, VT-PANIC BUTTON VT-PANIC (Power) Alarm In, NC/ON 01246 225 745...
- Page 9 The LED on the VT PANIC LED should be in a state of GREEN, press to change to which will activate the panic button, the VT2000 BLUE LED will flash to show this has worked, the VT PANIC LED should be...
- Page 10 VT2000 INSTALLATION GUIDE VT2000 Calibration: On start-up, the GREEN light will flash and the BLUE light will stay solid, once the camera is operational you will hear an audio beep. Record LED Blue LED Communication LED Green LED Park your vehicle on a flat surface and press and hold calibration button for 5 seconds, the camera will beep again.
- Page 11 PLEASE KEEP YOUR COMMISSION NUMBER SAFE. WARNING! On installation please leave camera to boot up completely for approximately 5 minutes and call VisionTrack support team on 01246 223 152 to confirm camera install is complete. If you do not do this it will INVALIDATE the warranty.
- Page 12 THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com VT2000 INSTALLATION GUIDE 2 Chapman Way High Brooms Industrial Estate Tunbridge Wells Kent TN2 3EF...
