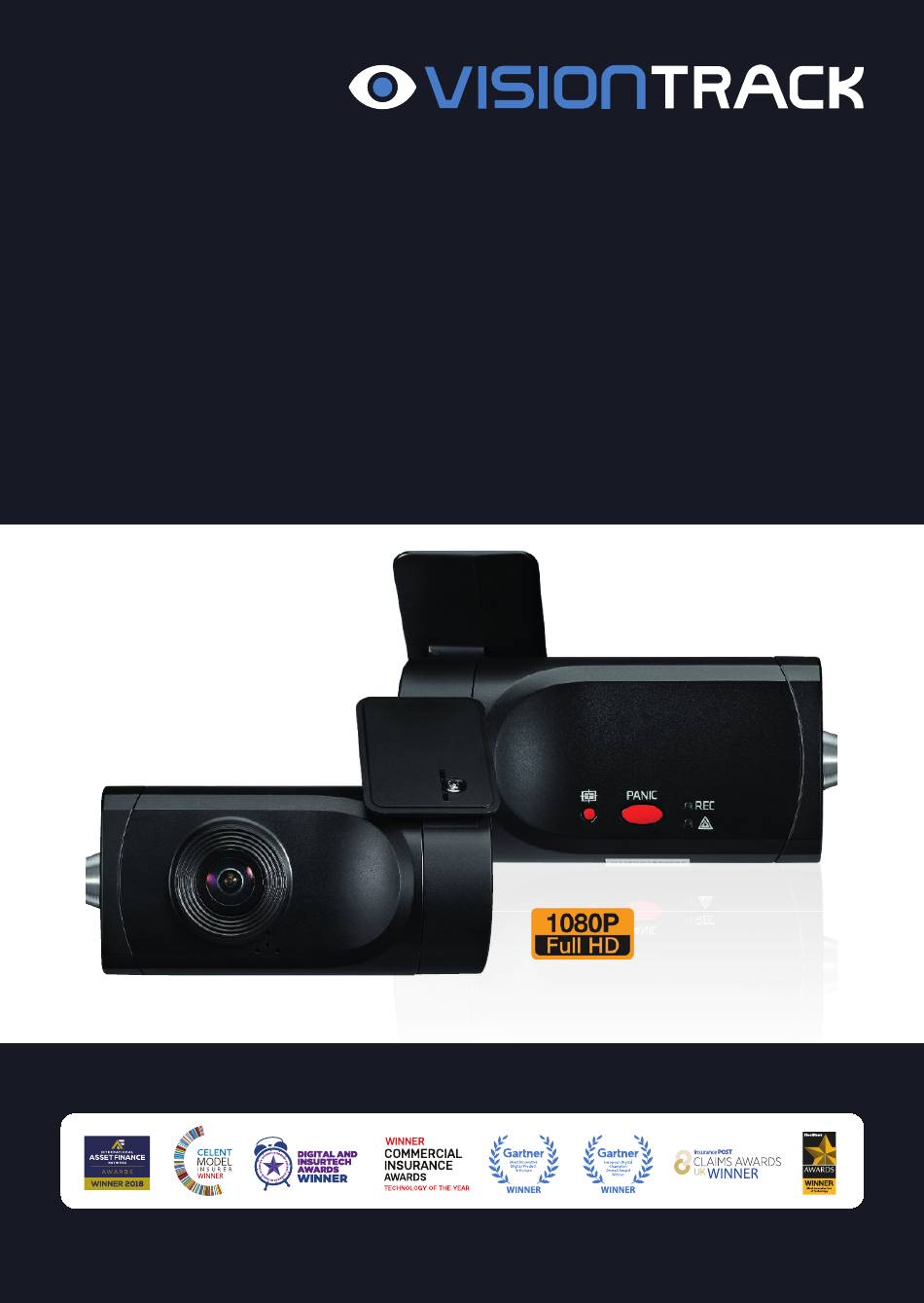

- Page 1 THE NEXT GENERATION OF TELEMATICS AND INTEGRATED CAMERA SOLUTIONS VT1000 INSTALLATION GUIDE THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...
-
Page 2: Key Features
VT1000 INSTALLATION GUIDE Overview VT1000 is a full HD 1080p vehicle camera, giving you a comprehensive view of any incident and providing court-admissible evidence. The camera features a super-wide-angle lens, G-shock sensor and lockable, tamper-proof SD-card cover, and can also be integrated with third-party telematics systems. -
Page 3: What's In The Box
VT1000 INSTALLATION GUIDE What’s in the box: 1. VT1000 Vehicle Recorder 2. VT1000 Power Kit Cable 3M™ Pad (x2) Lockable Case Keys (x1 set) Angle Stopper and Screws Wire Splice Clips (x5) (x1) 01246 225 745... -
Page 4: Installation
The VT1000 requires a continuous 12/24volt power source from the vehicle. The cable supplied will allow you to hard wire the VT1000 unit to the fuse box of your vehicle. Please following wiring diagram for correct wiring setup. -
Page 5: Power Cable* Wiring Diagram
VT1000 INSTALLATION GUIDE RECORD LED BLUE LED WARNING LED G-Sensor Calibration Button RED LED Panic Button Power Cable* Wiring Diagram Black (Ground) Red (Ignition Power) (Permenant power not recommended) White (External Panic Button+) Blue (External panic button -) Green (Alarm out1), Low(0V) to High (5V) 2seconds... - Page 6 VT1000 INSTALLATION GUIDE BLUE LED (RECORD) The blue LED shows the power is on. During the continuous recording: blue LED will be on 4seconds and off 1second. During the event recording: blue LED will be on 0.5 second and off 0.5 second.
- Page 7 VT1000 INSTALLATION GUIDE VT1000 Calibration: On start-up, press the calibration button once. Calibration is complete once a beep sound is heard. 01246 225 745...
- Page 8 VT2000 INSTALLATION GUIDE VT1000 INSTALLATION GUIDE NOTES www.visiontrack.com 01246 225 745...
- Page 9 THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com VT1000 INSTALLATION GUIDE 2 Chapman Way High Brooms Industrial Estate Tunbridge Wells Kent TN2 3EF...
