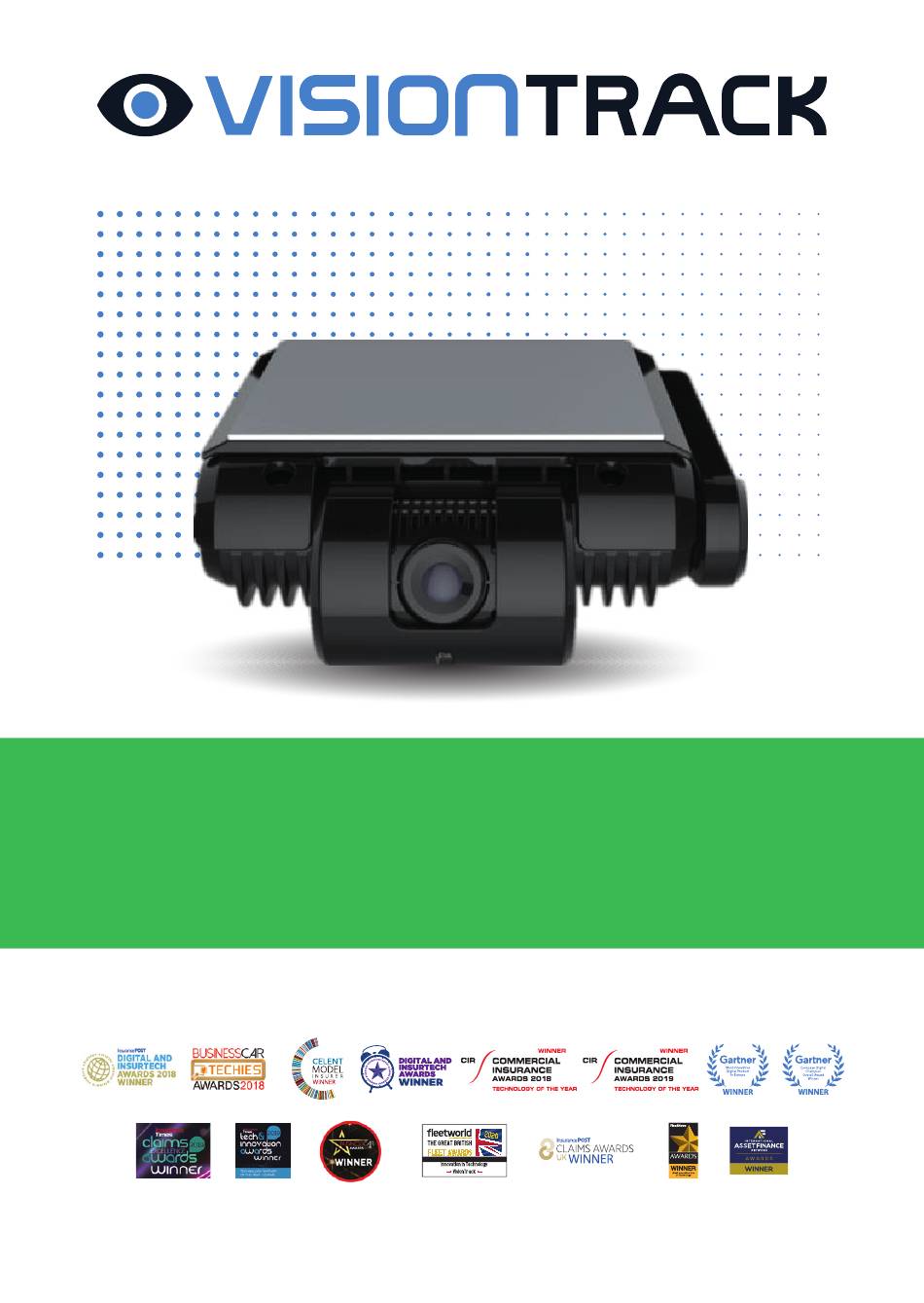

- Page 1 VT3000 INSTALLATION GUIDE THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...
-
Page 2: Key Features
Moni or river beh vio r from S ppor s GPS n GLONASS n where sing he VisionTr ck receiver wi h self-checking IoT pl form no ific ions t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com... -
Page 3: What's In The Box
VT3000 INSTALLATION GUIDE What’s in the box: VT3000 Vehicle Recorder S-VT3000 Power Loom (Includes 3mm sticky pad attached) S-VT5500-G/VT3000 GPS Antenna VT3000 Panic Button S-VT3000 Torx VT3000 USB Adapter t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com... - Page 4 VT3000 INSTALLATION GUIDE VT3000 Details: Windscreen Bracket Camera Lens SIM Card/SD Card Panel (Locked) Lens adjustment SIM Card/SD Card Panel (Unlocked) USB Port Loudspeaker t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 5 VT3000 INSTALLATION GUIDE VT3000 Installation: Already attached to the VT3000 is a sticky adhesive pad, please use this to secure the VT3000 onto the windscreen. IMPORTANT: Degrease and clean windscreen before attaching. After the windscreen is clean, secure the VT3000 behind the rear-view mirror, below the windscreen tint.
- Page 6 X2 = VT3000 Panic button X3 = VT3000 Panic button ALM 2 (2 connections) (optional could be for passenger in taxi application) Ignition Sensor In3 Sensor/Trigger Input GND for Sensor In3 Ground t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 7 VT3000 Wiring: How to connect the VT3000 GPS Cable to the GPS Antenna Output. Line up the cables to connect the VT3000 GPS Cable with the GPS Antenna Output cable. Once the cables are lined up, push together to secure connection.
- Page 8 Typical power consumption 6W (up to 12W with 12v Power Output Option from GPIO Cable) Operating temperature -30°C~+70°C General specification Storage temperature -40°C~+85°C Humidity 0% - 90% Dimensions LxHxW 90x39.5x100 t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 9 VT3000 Dimensions LxHxW: Dimensions LxHxW 90x39.5x100 Items Definition Fixing screw of cover Speaker Camera Adjustment Screw VT3000 lens (towards outside) SIM / SD Card / USB Cover Screw Adhesive Pad t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 10 VT3000 INSTALLATION GUIDE VT-C26-IPC Details (Optional): Camera Lens Window Bracket VT-C26-IPC Dimensions LxHxW: Items Definition Photosensitive area VT-C26-IPC lens (towards inside) Fixing screw of VT-C26-IPC Dimensions LxHxW 40(base)x80x70 t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 11 VT3000 INSTALLATION GUIDE 2 Chapman Way High Brooms Industrial Estate Tunbridge Wells Kent TN2 3EF...
