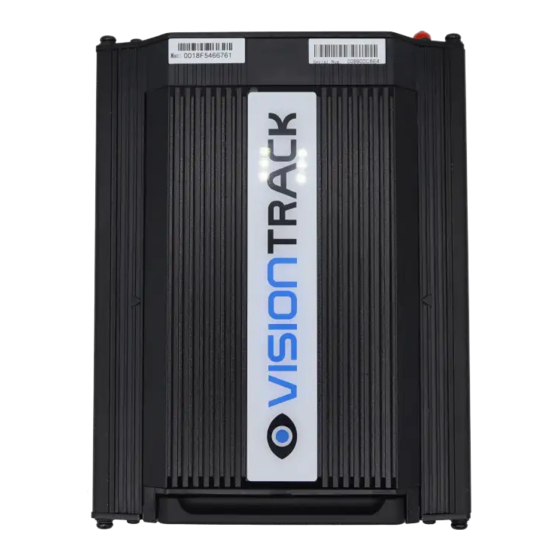

5-CHANNEL FULL HD 1080P MOBILE DVR
The VT5500-G-LTE is a full HD 1080p ruggedised, 5-channel mobile digital video recorder
(MDVR) designed for vehicle surveillance and monitoring, with built-in connectivity,
advanced video compression and GPS positioning technology for live tracking. The MDVR
fully integrates with VisionTrack's Platform and has as a built-in three-axis G-shock sensor
as standard, offering full driver behaviour reporting.
1
2
3
1.
Forw r -F cing
C mer
2.
In-Vehicle Moni or
t +44 (0) 1246 225 745
e info@visiontrack.com
w visiontrack.com
s support.visiontrack.com
4
5
3.
Si e-View
C mer
4.
Mobile DVR
Powered by
5.
Lef T rn Aler
n /or Proximi
Sensors
6.
Reverse n /or Lo
C mer
VisionTrack Copyright © 2020 - All Rights Reserved.
All manufacturers specifications are subject to change
without notice. No liability will be accepted by VisionTrack
for any errors or omissions in this information.
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT5500-G-LTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VisionTrack VT5500-G-LTE

Summary of Contents for VisionTrack VT5500-G-LTE

  • Page 1 VT5500-G-LTE 5-CHANNEL FULL HD 1080P MOBILE DVR The VT5500-G-LTE is a full HD 1080p ruggedised, 5-channel mobile digital video recorder (MDVR) designed for vehicle surveillance and monitoring, with built-in connectivity, advanced video compression and GPS positioning technology for live tracking. The MDVR fully integrates with VisionTrack’s Platform and has as a built-in three-axis G-shock sensor...

  • Page 2: Key Features

    +44 (0) 1246 225 745 e info@visiontrack.com VisionTrack Copyright © 2020 - All Rights Reserved. w visiontrack.com All manufacturers specifications are subject to change s support.visiontrack.com without notice. No liability will be accepted by VisionTrack for any errors or omissions in this information.

  • Page 3: Physical Dimensions

    +44 (0) 1246 225 745 e info@visiontrack.com VisionTrack Copyright © 2020 - All Rights Reserved. w visiontrack.com All manufacturers specifications are subject to change s support.visiontrack.com without notice. No liability will be accepted by VisionTrack for any errors or omissions in this information.

  • Page 4: Fcc Requirement

    FCC Requirement changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
  • Page 5 1. Overview The Manual aims to enable users to have a deeper understanding of the device system and guide us to better use its functions. Please note the operation is for professionals only. 2. Main Menu 2.1 Business Menu Click “Business Menu” and the following screen is displayed. The user doesn’t need to enter the password to go into Business Menu and common users and drivers all have access to it.

  • Page 6: Dial Function

    2.1.1 Dial Function The device supports the user to dial. The Dial screen is shown as follows: Contacts/Records: ⚫ Records of Contacts can only send telephone numbers via the 808 platform. Saving telephone numbers on the device is not allowed. ⚫...

  • Page 7: Main Functions

    ⚫ Username (admin or user) cannot be manually entered. It can only be selected by the drop-down box. User management is conducted in User Settings of Parameter Settings. ⚫ The user can enter the parameter settings menu after the login. If the user directly clicks “Return”...
  • Page 8 of the day. ⚫ Calender search. Recording types available include main recording, sub-recording and mirror recording. ⚫ Recording search depends on recording types instead of the storage way. Recording is classified as: all, alarm recording and regular recording. ⚫ To select all, search eligible channels; to select alarm recording, only search alarm linkage recording;...
  • Page 9 ⚫ Click “-” or “+” above the timeline to zoom in and out the time range. The function is especially useful when there are many video segments or the user intends to play back the video from a certain time range. ⚫...

  • Page 10: Log Search

    3.1.3 Log Search Click Log Search to enter the log search screen. ⚫ Click “Next”: ⚫ Log can be searched according to time periods. ⚫ Log is classified as: operation log, alarm log, locked log and P2 operation log. ⚫ When selecting the alarm log, if the log has recording to link with, then the Play button corresponding to the log can be selected.
  • Page 11 3.1.4 Ways of Time Synchronization ⚫ Ways of time synchronization include: satellite, central server and NTP sync. Single option or multiple choices are available. For multiple choices, the device follows the order of satellite, NTP sync and central server. When time synchronization by satellite fails, resort to NTP. If NTP also fails, turn to central server for time synchronization.

  • Page 12: Sleep Delay

    also set the start time and choose to delay the time in days or weeks. 3.1.5 Sleep Delay ⚫ Startup & shutdown ways: ignition, timing and ignition/timing. ⚫ Ignition delay: the function can only be enabled when the device is ignited. To be more specific, the ignition delay function is enabled and countdown pops up in the preview screen after the car key is off.

  • Page 13: User Management

    ⚫ Sleep is designed to prevent the electrical level of battery from being drained when the voltage of external power supply is below a certain value. Low-voltage protection is added to keep the electrical level of battery from being drained after the car key is off. ⚫...
  • Page 14 ⚫ To add user, only common user can be added while administrator cannot be added. Common user can be edited and deleted. ⚫ Administrator has settings permissions. Common user only have permissions for query rather than parameter settings. ⚫ Exit time of operation timeout: the time users wait to exit to the preview interface after entering the settings screen.
  • Page 15 3.1.8 Application ⚫ FTP server configuration means connecting to the server designated by customers by setting the FTP server parameters. For example, photos captured by MDVR can be configured to upload to the FTP server. The user can upload photos to a corresponding server according to the parameter configuration.

  • Page 16: Video Monitoring

    manages the device download, like which vehicles to download, download via which kind of network (4G or WIFI). If the download is completed via WIFI network, the user needs to figure out via which WIFI-AP each vehicle is downloaded and how many vehicles can be connected and simultaneously downloaded for each AP.
  • Page 17 and 9 screens as well as how many channels to display. For example, the device of customers has 4 analog cameras and 2 IP cameras. However, we only use 2 IP cameras to enable them to view 4 screens. ⚫ Automatically switch the channel of preview screen. For every switch, the user can set to display which channels and show them in which mode.
  • Page 18 3.2.2 Record ⚫ Dual-stream recording can choose the storage. However, currently, dual stream only has two storage options: built-in SD card and external SD card. ⚫ Recording mode: sub-stream recording, mirror recording, alarm recording backup and none. 1) Sub-stream recording: MVDR encodes two data streams, namely primary stream and sub-stream.

  • Page 19: Ipc Setup

    3.2.3 IPC Setup ⚫ Support auto IPC plug and play configuration, IPC quick settings and manual IPC channel configuration by IP search. ⚫ Support IPC quick settings. 1) MDVR with PON interface: do not support IPC quick settings (X1 and X3 have PON interface).
  • Page 20 ⚫ Each channel supports the IPC search function and displays the searched IPC list information. For IPC settings, there are two situations: (1) the user can view IP address of cameras in Search using Streamax cameras, then he directly checks and views IP address; (2) the user adopts ONVIF protocol, then he clicks the IPC setup button and fills in information related to IP address.
  • Page 21 ⚫ The user clicks “Edit” and the photo above appears. For cameras of ONVIF protocol, this channels binds the configuration channel awith IPC. Please note that modifying IP address here is not to modify IP address of IPC but rebind other IPC. For intelligent IPC channels, such as DSM, ADAS and BSD channels, calibration mode and normal recording mode are optional.

  • Page 22: Data Collection

    3.3 Data Collection 3.3.1 General ⚫ Device sensor connection cable: For IO cables, IO1~IO8 parameters can be set on this screen. Voltage and pulse are optional for the signal source. IO purpose can be chosen according...
  • Page 23 to users’ requirements. ⚫ Serial port. Support two ways of serial port connection-RS485 and RS232. To configure 4 serial ports, 2 485 serial ports can choose 485 bus and 485 bus connects to standard 485 peripherals of Streamax. For each 485 bus, it can mount several 485 peripherals. Each standard peripheral of Streamax has a fixed code.
  • Page 24 ⚫ Four ways are available for the speed signal source: satellite, pulse, OBD and Atrack. Uinits of KM/H and MPH are optional. “Mileage basic value calibration” and “Auto calibration” are supported. ⚫ “Mileage basic value” calibration function. Calibration means the user sets an initial value for the total mileage.

  • Page 25: Snapshot Settings

    3.3.2 Advanced ⚫ Connected to the passenger counter named P2 and temperature & humidity sensor. 3.3.3 Snapshot Settings ⚫ Snapshot includes: timed snapshot and triggered snapshot (manual trigger and alarm linkage).

  • Page 26: Eco-Driving

    ⚫ Upload way: that is the type of server to which snapshot photos are uploaded. There are two types of servers: FTP server and central server. 1) FTP server: the user can directly log in the FTP server and view snapshot photos like viewing files in the Windows system.
  • Page 27 platform . If two versions are inconsistent, then configure the sent engine model to OBD. The whole process is called “calibration”. ➢ Local calibration: 1) Import vehicle information sheet to the device via USB flash disk (the sheet includes license plate number, OBD upgrade file version and CAN bus standard) 2) Manually configure the engine model on the screen.

  • Page 28: Maintenance

    3.3.5 Maintenance ⚫ Operation and maintenance configuration: the user can set a fault range. Once data falls out of the range, an alarm will be given. 3.4 Intelligent Alarm...
  • Page 29 3.4.1 Base ⚫ Panel alarm: the alarm will be taken as an actual alarm after the button has been pressed for a while. Effective alarm time means how long the alarm can last before being off; Alarm duration indicates the alarm is recorded as effective alarm only once after being repeatedly given in a certain period of time.
  • Page 30 3.4.2 Video ⚫ There are three types of video alarm: video loss, motion detection and covered video. They have one common trigger condition, namely “Effective alarm time”. Effective alarm time means that one alarm is regenerated in the set time after the previous alarm is off. These two alarms are regarded as the same alarm.
  • Page 31 3.4.3 Advanced ⚫ ACC alarm: internal three-axis sensor can set alarm for collision or changes in the position as well as link with the screen for settings. ⚫ Geo-fence: support switch-on and off of the Geo-fence. ⚫ Temperature & humidity alarm settings: the user can set trigger conditions and linkage screen.
  • Page 32 3.4.4 Linkage ⚫ Channel: the recording channel is required after the alarm. Channel recording will be marked as alarm recording. ⚫ Post recording: the time recording continues after the alarm is off. ⚫ Lock: the user can set whether to lock the alarm recording. ⚫...
  • Page 33 3.4.5 AI Alarm ⚫ AI functions like ADAS, DSM and BSD, trigger conditions and linkage content can be set according requirements of users. ⚫ The user needs to check alarm snapshot in linkage settings to upload evidence photos and then set in Data collection-Snapshot settings. ⚫...
