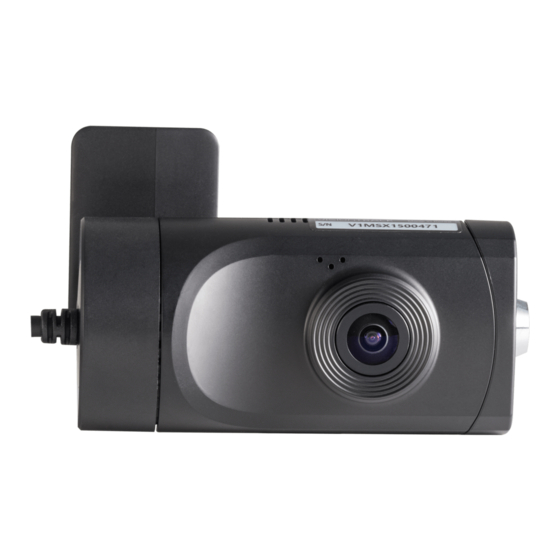

- Page 1 USER GUIDE FULL HD VEHICLE RECORDER • Thank you for purchasing the VT1000 Vehicle Recorder. • Please ensure that you read and understand this USER GUIDE and use it before connecting and installing this Recorder. • Please store the USER GUIDE in an easily accessible location.
-
Page 2: Table Of Contents
INDEX ■ Safety advice ................3 ■ GPS recePtion ................4 ■ contentS ..................5 ■ introduction ................6 ■ functionS ..................8 ■ LedS & Buzzer SPecification ..........10 ■ inStaLLation ................11 ■ SoftWare uSer Guide ............12 ■... -
Page 3: Safety Advice
SAFETY ADVICE GPS RECEPTION SAFETY ADVICE GPS Reception Activate the product in an area without large buildings to CAUTION The commercial purpose GPS has the average rage error of more improve GPS reception. than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc. RISK OF ELECTRIC SHOCK DO NOT OPEN The temperature range for optimum operation of the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GPS receiver in your car is ‐10 ~ 50°C. DO NOT REMOVE COVER. NO USER‐SERVICEABLE PARTS INSIDE. 3. When using the product for the first time or after a long REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. period (more than three days), it may take a little longer to It may take between five and thirty minutes to get GPS reception. recognize your current location. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. Battery for RTC(Real Time Clock) inside GPS reception may be impaired under the following circumstances 1) If there is an object at the end of the GPS antenna DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 2) If your vehicle has metallic elements on the windshields Caution Install the product where it does not block driver’s visibility and where there is no airbag installed. This could cause an accident or might injure passengers in 3) If equipment generating electromagnetic waves that interfere with the GPS case of accident signal is installed in the vehicle e.g.: Other GPS devices such as a certain type of wireless activated alarms, MP3 and CD players and camera alarms Caution using GPS. -
Page 4: Contents
CONTENTS INTRODUCTION INTRODUCTION CONTENTS FRONT Bracket Camera Lens VT1000 Lock Vehicle Recorder Power Cable (double sided tape x1) Sticker for Windscreen mounting Memory Wire Splice clips (x5) Card Slot Left side Right Side... -
Page 5: Functions
INTRODUCTION FUNCTIONS FUNCTIONS INTRODUCTION Once the VT1000 has been wired to your car power source the VT1000 will be Automatic Booting boot up, this will take around 1 minute for the unit to be ready to record. BACK The default setting for record is the continuous recording at 30fps, 720P resolution. This setting allows for separate event and panic recordings. On this setting the SD card storage may be used up quicker and depending on the settings, overwrite or stop recording when full. To avoid losing valuable data, back up data to a separate storage or PC device after any incidents. NOTE: The unit will not start recording immediately after power on. It takes around 1 minute for the built‐in power backup system to charge. Thereafter, the internal flash memory will be ready to record. BLUE LED Record LED This is the default mode for recording. In this setting the unit will begin recording Continuous Record (When Record mode set as “Continuous”) after boot up and record the entire time the unit is powered. The resolution and frame rates can be set as per your requirements. You can change the configuration of the recording using the VT1000 Software. To do this, please see RED LED the ‘Settings’ section on page 15. G‐Sensor Calibration button Warning LED Parking mode: If G‐Sensor value is not changed during 5 minutes, the record frame rate will be automatically change to 1FPS. When a vehicle starts to move then the parking mode will switch off automatically and start the continuous Panic Record Button recording immediately Power Cable This “Parking mode” can be set when the record mode set as “Continuous”. Black (Ground) The unit will record when triggered by either an impact or a push of the ‘PANIC’ Event Record (When Record mode set as “Event”) Red (Power +) button. In such events, 15 seconds of pre and post events will be stored separately on the SD card. -
Page 6: Leds & Buzzer Specification
FUNCTIONS LEDS & BUZZER SPECIFICATION FUNCTIONS LEDs & BUZZER Specification 1. Install the unit and park the vehicle on a flat surface . The blue LED shows the power is on. G‐Sensor Calibration BLUE LED (RECORD) 2. Turn on the unit and press the blue button one time. During the continuous recording: blue LED will be on 4seconds and off 1second. 3. Then calibration will be done with “beep” sound. During the event recording: blue LED will be on 0.5 second and off 0.5 second. During the Parking mode: blue LED will be on 8seconds and off 1second. When power to the unit is interrupted, VT1000 creates the last Built‐in power backup (Super Capacitor) file using the internal Super Capacitor. The red LED will be turned on when system failure. RED LED (Warning LED) A ‘Beep’ sound will occur when event recording starts (this can be turned off, if Buzzer required by uncheck “Event Beep” at Settings) Time and Date There are no time and date settings as the VT1000 gets this information from the GPS satellites. Status BLUE LED RED LED BUZZER Please format [initialize] the SD card using the PC viewer software. heartbeat heartbeat Booting SD Memory Card Format 4sec / 1sec Upgrade 0.5sec on/off... -
Page 7: Installation
INSTALLATION SOFTWARE USER GUIDE INSTALLATION SOFTWARE USER GUIDE Park your vehicle on a flat level surface. Turn off the engine before installing the VT1000. PC Viewer Software Attach the VT1000 using the provided double sided 3M tape. The surface must be clean and dry before you install. We recommended to install the product behind the rear view mirror on the front windshield. NOTE: The 3M adhesive tape will not stick well with dust or oil, etc. Please make sure the surface is clean before applying. Adjust camera view. Make sure the lens has an unobstructed view. Check from outside the vehicle to check the camera angle, you can adjust the angle via the bracket teeth. Arrange the power cord neatly alongside of the windshield and door pillar trim. The VT1000 requires a continuous 12/24volt power source from the vehicle. The cable supplied will allow you to hard wire the VT1000 unit to the fuse box of your vehicle. Connect the “red cable (+)” to a fuse. It should be connected to a fuse that have Recommended PC specifications for PC Viewer Software PC SYSTEM REQUIREMENT power when you start the engine. Windows Vista. Windows 7, Windows 8/8.1 Core 2 Duo 2.5GHz or Higher 2GB or Higher The ground cable should be connected to the car body or battery negative. Interface SD Memory Card Reader Start the car after installation. Install : 55MB or Higher Backup : 4GB or Higher Free space Display 1024 x 768 pixel/True Color or higher If the PC does not meet the minimum system requirement, the PC Viewer... -
Page 8: Software Installation
SOFTWARE INSTALLATION INITIALIZE SD CARD SOFTWARE INSTALLATION Initialize SD Card The PC Viewer Software is on the provided SD card. (Also available on our website.) initialize SD Card’ Icon 1. Connect the SD card into your PC (if your computer does not have and SD card slot use the USB SD card reader) and open the “My Computer” 2. Right‐click the “VR1000” drive and select [Open] To initialize the SD card, click on the above icon and you will be presented with the following screen to choose the card to initialize. Click ‘Ok’ 3. Double click [SETUP.EXE] in the [pcsw] folder. when selected. 4. Select the language and then follow the dialog box prompts. 5. The “PC Viewer VT1000” icon will be displayed on your desktop. On the following screen, check the ‘Quick Format’ button and uncheck the ‘Backup Configuration File’ and click ‘Start’ to begin initialisation. Make sure the program is not running and open the ‘Control Panel’ NOTE: To Un‐install the PC Viewer Software Select ‘Remove Program’ and remove the PC Viewer Software. NOTE: The PC Viewer software will automatically be copied to [pcsw] folder on the SD card. -
Page 9: Settings
SETTINGS SETTINGS Settings Settings [Settings] icon Set Record Mode as Continuous and then you can check the Parking Mode box. Parking Mode If G‐Sensor value does not change for 5 minutes, the record frame rate will be This option allows you to adjust the settings on the recorder. Click the above automatically change to 1FPS. When a vehicle starts to move then the parking icon to bring up the screen below. mode will switch off automatically and start the continuous recording immediately Turn on the event beep to make the unit ‘beep’ when the G‐sensor has been Event Beep triggered or the Panic button has been pressed. The shock sensor sensitivity can be set to ‘Simple setting Mode’ or ‘Custom’. Set G‐Sensor Sensitivity to easy allows you to set the sensitivity to 9 (High), 5 (Medium) or 1 (Low). In custom set, you can set 3 different shock sensor values individually. Once it checked, VT1000 will automatically decrease the G‐Sensor sensitivity at Auto adjust G‐Sensor to Vehicle speed higher vehicle speeds to compensate for the naturally added G‐forces that are experienced due to velocity. Select the total log file size. GPS Record Time About 2days (80MB) About 7days (280MB) Turn on the SD Error beep to make the unit ‘beep’ when the SD Error occurred. SD Error Beep High voltage 5V out when G‐sensor or Panic triggered. (Low to High 2 seconds) Alarm Out1 High voltage 5V out when SD error occurred. (Low to High 2 seconds) Alarm Out2 Event (Automatically starts recording by G‐sensor or Panic button.) Automatically synchronize with GPS time. However this manual time setting is Record Mode Continuous (Always recording when powered by DC 12/24V.) Date/Time also available to use the unit at the inside of building. -
Page 10: Pc Viewer Software Viewing Settings
Open the SD card PC VIEWER SOFTWARE VIEWING SETTINGS OPEN ThE SD CARD PC Viewer Software Viewing Settings Insert the SD card into your PC ① Click “Select SD Card” icon Viewing settings This setting is for the PC Viewer Software itself. To set the Recorder, refer to page 15. ② Select the SD card drive and click “OK” The ‘speed’ unit & ‘date’ formats can be changed with this Viewing settings. ③ Click “Check All” and then click “Load” Video Flip, Video Mirror, Brightness and Contrast can be set in this Viewing Settings Change tap to load the Panic Events or G‐sensor Events or Log files. -
Page 11: Playback
PLAYBACK LOG FILE PLAYBACK LOG FILE PLAYBACK Playback Select [LOG] tap. Frame Size Check the log from the log list using mouse or click [Check All]. Then click [Load]. Resolution Record Mode Display Frame / Total frames number Log data will be recorded during driving even if there are no events. The total log data size can be set from 2 days, to 31days. The log data Log data overwrites the oldest data. Using this log data, you can use the data sorting function which helps to find a specific data like more than 80mph(or 80km), for example. Input sorting data Search button Speed G‐Sensor Graph Event Search Playback Speed X0.5, 1 X0.5, 1 Reverse Play GPS speed, G sensor X value, G sensor Y value, G sensor Z value, can be checked first on the small check box at right side of each value. X2, 4, 8, 16 Fast Forward Then input data for data sorting. Pause If there is recorded video data, [Switch] or [G Sensor] mark will be Previous X2, 4, 8, 16... -
Page 12: Save Jpeg And Avi File
SAVE JPEG AND AVI FILE PRINT ImAGE Save JPEG and AVI File Print Image Pause the playback and click “Save JPG” icon to make JPG images. Pause the playback and click “Print Image” icon. “Save JPG” icon “Print Image” icon Choose to print the current image or select another image from the same file you are in by searching the time and date. Pause the playback and click “Save AVI” icon to make an AVI file. “Save AVI” icon See a preview of the printed image and alter the printer settings to change paper size/orientation etc. -
Page 13: Backing Up Files
BACKING UP FILES Backing up files GPS LOG TO KmL CONVERTER GPS Log to KML Converter To see the whole route on Google Earth, select the log file and click the Google Earth icon, as shown below. Select “Cont”, “Panic”. “Event”, “Log” tap and select the files first. And then click the Backup icon to backup the files to the PC. “Backup” icon STEP 1. Install Google Earth on your PC. (http://www.google.com/earth/) STEP 2. Check the log file STEP 3. Click the Google Earth Icon To backup the whole data from the SD card to the PC, check the “Backup All” option. Select the folder location of the KML file. Click “OK” and the route will then be shown on Google Earth. We recommend you use Google Earth Version 5.0 or above. -
Page 14: Driver Report
DRIVER REPORT ANALYSIS CRITERIA SETTINGS Driver Report Analysis Criteria Settings During the viewing, click the “Driver Report” icon to view the below Driver Report Screen. The lower graph shows the G‐sensors. The x‐axis is in red, y‐axis in blue, and Bottom Graph z‐axis is green. The indicator bar below shows jolts in the G‐sensor values, i.e. G‐sensor values that exceed the pre‐set limit. Grey means normal conditions, red “Driver Report” icon means jolts in the x‐axis direction, blue in the y‐axis direction, and green in the z‐axis direction. Configurations for this function can be set by clicking the [Setting] button in the right bottom corner. The limits for G‐sensor, permitted speeding, excessive RPM, and eco‐speeding can be set under the ‘Analysis’ tab and ranges for the two graphs can be set under the ‘Component’ tab. From the calendar in the bottom right corner, choose the date you wish to inspect among the dates highlighted in blue. Dates that are not highlighted in blue, do not have the relevant data. All data from the selected date will be automatically chosen from the selection on the right. You can unselect data that you do not need. When data is selected, click the ‘Load’ button to load the data. A summary of information can be found on the top of the window including; vehicle ID, user ID, total duration and total distance. In addition you can analyze the number of over‐accelerations, over‐decelerations, sharp turns, over‐speeding, over‐RPMs that exceeded the pre‐set limit. The top graph shows the speed (red) and below are three indicator bars that show Top Graph driving patterns. The first bar shows driving (blue) and idling (grey) and the second bar shows the speed. White means that the vehicle was within both the permitted speed and eco‐speed limit, green means above eco‐speed but within permitted speed limit, and red means above the legal speed limit. The last bar shows the state of the engine where white means the engine is off, blue means it is running properly within the pre‐set RPM limit, and red means over acceleration, i.e. exceeding the pre‐set RPM limit. -
Page 15: Grading Criteria Settings
Analysis Criteria Settings ANALYSIS CRITERIA SETTINGS GRADING CRITERIA SETTINGS Grading Criteria Settings The criteria for grading driver’s safety and eco‐score can be set in these settings. This option allows you to make changes to the analysis criteria settings. To The safety and eco‐grading criteria have 7 and 8 separate components Analysis Criteria Settings access this menu, go to ‘settings’ click ‘analysis criteria settings’ and you will respectively. A weighted average of these component scored are used to be presented with the following screen. determine an overall score. Grading for each criteria is set to 4 levels (A,B,C & D) and if the driver’s score is lower then they will receive an F for fail. Each criteria can be given a different weight depending on the importance you place on each one but all weights must add up to 100. To get into this menu, enter the ‘Settings’ menu, and click the ‘Grading Criteria Settings’. This sets the criteria for excessive acceleration and brake. This is measured in G‐ Acceleration/Brake force, so if acceleration or deceleration exceeds the G‐force limit, it will be counted as excessive. This option allows you to set the criteria for excessive speeding. You can set the Speed Limit value limits between 0‐999km/h. In the example above, the limit has been set to 80km/h for 30 seconds, so therefore if the vehicle goes over this speed for over 30 seconds, it will count as excessive speeding. If you go over that speed but for under 30 seconds, it will not count as excessive speeding. Set the criteria for eco‐speed limit. The eco‐speed limit can be set higher or lower Eco‐speed Limit than the speed limit and can be set from 0‐999 km/h and the time can be set by selecting the drop down menu. In the example, the limit has been set to 60km/h This option sets the grading criteria the amount of sudden starts per hour. The for 10 seconds. If this limit is exceeded, it will count as excessive. Sudden Start Count assessment of this criteria is based on the (acceleration/deceleration). For example, if a driver drove for 8 hours in one day and had 4 sudden starts during that time, their score for that criteria will be 0.5 and based on the settings in the... - Page 16 This option sets the grading criteria for eco speeding and is calculated per hour. Excess Eco‐speed Count and had 4 sudden decelerations during that time, their score for that criteria will For example, if a driver drove 8 hours in a day but was exceeding the eco‐speed be 0.5 and based on the settings in the image on the previous page, they would be limit 4 times, their score for this criteria would be 0.5, they would be graded as B. graded as B. The assessment of this criteria is based on the eco‐speed limit option in the This criteria is used in both safety and eco grading, but the weights can be set ‘Analysis Criteria Setting’. separately. This criteria is used for eco grading only. This option sets the grading criteria the amount of times the driver exceeds the This option sets the grading criteria for eco speeding and is calculated as a ratio Speeding Count Excess Eco‐speed Duration Ratio speeding limit for the amount of time set in the ‘criteria settings’. The overall of time speeding and is set as a percentage. For example, if a driver drove 8 hours value is set as a ratio of the amount of time speeding to the time driving as a in a day but was exceeding the eco‐speed limit for 1 hour, their score for this percentage. For example, if a driver drove 8 hours in a day but was speeding for 1 criteria would be 12.5%, they would be graded as A. hour in total, their score for this criteria would be 12.5% and based on the image The assessment of this criteria is based on the eco‐speed limit option in the on the previous page, they would be graded as A. ‘Analysis Criteria Setting’. This criteria is used for eco grading only. This criteria is used in both safety and eco grading, but the weights can be set separately. This option sets the grading criteria for speeding and is calculated as a ratio of Once the grading criteria settings has been adjusted and saved, it can be exported PLEASE NOTE Speeding Duration Ratio time speeding and is set as a percentage. For example, if a driver drove 8 hours in into an ‘ini’ file and them imported into another version of the software. a day but was exceeding the speed limit for 1 hour, their score for this criteria This means that you can set each VT1000 quicker than manually adjusting the settings in each version of the software. would be 12.5%, they would be graded as A. The assessment of this criteria is based on the eco‐speed limit option in the ‘Analysis Criteria Setting’. This criteria is used for eco grading only.
-
Page 17: Grading Method
Graph Display Settings Grading Method GRADING mEThOD GRAPh DISPLAY SETTINGS The results of the driver analysis can be shown on a graph. To adjust the graph display, click on the ‘Graph Display Settings’ option. grade of F for fail. Therefore each grade will be assigned a limit that if exceed, the Grades: Each criteria is given a grade of A, B, C or D and anything lower is given a score will go down to the next grade. If the driver exceeds the limit for the D grade, they will be given an F. and eco grades to provide flexibility to the operator in assessment. Weights: Each criteria can be given a different weight when calculating the safety F=50. With this score, the safety and eco‐scores are assessed by a weighted Grading & Scores: Each grade is assigned a score; A=100, B=80, C=70, D=60, average of the relevant criteria scores. The total score is an average of the safety and eco scores. Below is an example of how scores can be calculated for each criteria. For example, lets say two drivers received the below scores in each criteria. With these set weights, their grades would come out as shown below. Eco grade Weight Driver 1 Driver 2 Sudden Start Count A(100) C(70) Acceleration Count A(100) A(100) Brake Count C(70) A(100) Speeding Count... -
Page 18: Specification
SPECIFICATION SPECIFICATION APPENDIX - RECORDING TImE TABLE APPENDIX ‐ Recording time table Image sensor 1/3” 3 Megapixel CMOS Sensor Angle of View 170 ° 1080p HD (1920x1080) Video resolution 720P (1280x720), VGA (640x480) Recording Speed Up to 30 fps Continuous , Recording Mode Event (shock sensor, Panic button) Recording time See recording table below Memory Supports Cards of up to 32GB (Class 10) GPS/GLONASS Internal GPS /GLONASS G‐Sensor Internal 3‐axis G‐sensor Internal battery Buzzer Recording start, error This table is a guideline only. Actual results may very depending on a variety of factors on the road. Audio Internal Microphone Record,(Blue LED) Warning(Red LED) Supper Capacitor Enable recording of last file and shut down PC software Supplied Power input... -
Page 19: Appendix Upgrade
APPENDIX - UPGRADE TEChNICAL SUPPORT & WARRANTY APPENDIX ‐ Upgrade Technical Support & Warranty For Technical Support, please contact your local distributor. TECHNICAL SUPPORT NOTE: To get the upgrade firmware, please contact your local distributor. 1. Prepare Firmware Make a folder called [program] on the SD root folder as shown below, This product is supplied with 1 year warranty. The Warranty excludes products LIMITED WARRANTY that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. Copy “XXXXXX_x.x.x.bin” file to the SD card [program] folder. Insert the prepared SD card to VT1000 unit and turn on the 2. Upgrade VT1000 power. The Blue & Red LED will quickly blink while the unit is upgrading. It will also ‘beep’ continuously. Upgrading the unit usually takes about 30 seconds. Warning: Do not turn off the power during upgrading. If the upgrade fails, the VT1000 unit should be returned to your local distributor. Once the upgrading is finished, the unit will automatically turn off and on the power. - Page 21 http://www.visiontrack.com...
