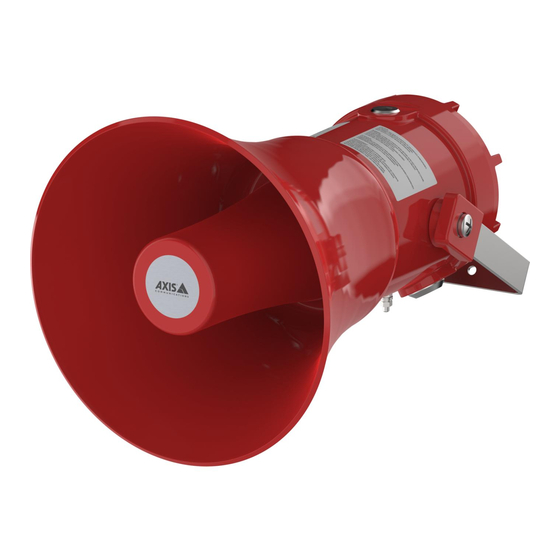

AXIS XC1311 Explosion-Protected Horn Speaker
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XC1311 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis XC1311

Summary of Contents for Axis XC1311

  • Page 1 AXIS XC1311 Explosion-Protected Horn Speaker User manual...

  • Page 2: Table Of Contents

    AXIS XC1311 Explosion-Protected Horn Speaker Table of Contents Solution overview ......... . .

  • Page 3: Solution Overview

    • AXIS Audio Manager Edge — Audio management software for small systems. Comes pre-installed on all audio devices with a firmware equal to or higher than 10.0. AXIS Audio Manager Edge user manual •...

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Secure Passwords

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 6: Configure Your Device

    1. Go to the device interface > Audio > Speaker test. 2. To calibrate the audio device, click Calibrate. Note Once the Axis product is calibrated, the speaker test can be run at any time. 3. To run the speaker test, click Run the test. Note It is also possible to run the calibration by pressing the control button on the physical device.

  • Page 7: Set Up Sip Through A Server (Pbx)

    AXIS XC1311 Explosion-Protected Horn Speaker Configure your device 6. Under Audio, select at least one audio codec with the desired audio quality for SIP calls. Drag-and-drop to change the priority. 7. Under Additional, select additional options. UDP-to-TCP switching – Select to allow calls to switch transport protocols from UDP (User Datagram Protocol) to TCP (Transmission Control Protocol) temporarily.
  • Page 8 AXIS XC1311 Explosion-Protected Horn Speaker Configure your device To learn more, check out our guide Get started with rules for events. Send an email if a speaker test fails In this example the audio device is configured to send an email to a defined recipient when a speaker test fails. The speaker test is configured to be performed 18:00 every day.
  • Page 9 Enter a subject and a message, and click Save. Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites •...
  • Page 10 AXIS XC1311 Explosion-Protected Horn Speaker Configure your device 1. Go to System > SIP > SIP settings. 2. Make sure Enable SIP is turned on. If you need to turn it on, remember to click Save afterwards. 3. Go to SIP accounts.
  • Page 11 AXIS XC1311 Explosion-Protected Horn Speaker Configure your device 4. In the list of states, select Ringing. 5. In the list of actions, select Play audio clip. 6. In the list of clips, select the audio clip you want to play.

  • Page 12: The Web Interface

    • About: View device information, including firmware version and serial number. Status Audio system info This information is only shown for devices that belong to an AXIS Audio Manager Edge site. AXIS Audio Manager Edge: Launch AXIS Audio Manager Edge. Locate device Shows the locate device information, including serial number and IP address.

  • Page 13: Audio

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 14 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Device settings Input: Turn on or off audio input. Shows the type of input. Gain: Use the slider to change the gain. Click the microphone icon to mute or unmute. Input type : Select the type of input.

  • Page 15: Recordings

    AXIS XC1311 Explosion-Protected Horn Speaker The web interface Shows the configured storage for the device. To configure the storage, you need to be logged in as an administrator. Audio enhancement Input Ten Band Graphic Audio Equalizer: Turn on to adjust the level of different frequency bands within an audio signal. This feature is for advanced users with audio configuration experience.

  • Page 16: Apps

    Export: Export the whole or a part of the recording. Apps Add app: Install a new app. Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps. Allow unsigned apps : Turn on to allow installation of unsigned apps.

  • Page 17: System

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 18 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks. IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 19 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 20 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 21 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 22 To install test firmware or other custom firmware from Axis on the device, you need a custom signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 23 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Allow anonymous viewing: Turn on to allow anyone access the device as a viewer without logging in with an account. Allow anonymous PTZ operating : Turn on to allow anonymous users to pan, tilt, and zoom the image.
  • Page 24 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Recipients You can set up your device to notify recipients about events or send files. The list shows all the recipients currently configured in the product, along with information about their configuration.
  • Page 25 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 26 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 27 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded at connect and disconnect. HTTP proxy: A URL with a maximum length of 255 bytes. You can leave the field empty if you don't want to use an HTTP proxy.
  • Page 28 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Use default topic prefix: Select to use the default topic prefix, that is defined in the device topic prefix in the MQTT client tab. Include topic name: Select to include the topic that describes the condition in the MQTT topic.
  • Page 29 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Enable SIP: Check this option to make it possible to initiate and receive SIP calls. Allow incoming calls: Check this option to allow incoming calls from other SIP devices. Call handling • Calling timeout: Set the maximum duration of an attempted call if no one answers.
  • Page 30 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Accounts All current SIP accounts are listed under SIP accounts. For registered accounts, the colored circle lets you know the status. The account is successfully registered with the SIP server. There is a problem with the account. Possible reasons can be authorization failure, that the account credentials are wrong, or that the SIP server can’t find the account.
  • Page 31 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 32 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Add accounts: Click to add a new ONVIF account. Account: Enter a unique account name. New password: Enter a password for the account. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example, letters, numbers, punctuation, and some symbols.
  • Page 33 AXIS XC1311 Explosion-Protected Horn Speaker The web interface • Select configuration: Select a user-defined configuration from the list and adjust the metadata settings. The configurations in the drop-down list act as identifiers/names of the metadata configuration. : Select the PTZ settings for your configuration.
  • Page 34 AXIS XC1311 Explosion-Protected Horn Speaker The web interface Logs Reports and logs Reports • View the device server report: View information about the product status in a pop-up window. The Access Log is automatically included in the Server Report. • Download the device server report: It creates a .zip file that contains a complete server report text file in UTF–8 format, as well as a snapshot of the current live view image.

  • Page 35: Maintenance

    AXIS XC1311 Explosion-Protected Horn Speaker The web interface Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device. This does not affect any of the current settings. Running applications restart automatically.

  • Page 36: Session Initiation Protocol (Sip)

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 37: Nat Traversal

    NAT traversal Use NAT (Network Address Translation) traversal when the Axis device is located on an private network (LAN) and you want to access it from outside of that network. Note The router must support NAT traversal and UPnP®.

  • Page 38: Specifications

    AXIS XC1311 Explosion-Protected Horn Speaker Specifications Specifications Product overview Bracket Gasket External earth terminal Horn Gasket Network connector Status LED indicator I/O port 10 Control button 11 Microphone disable switch 12 Internal earth terminal LED indicator Indication Status LED Green Steady green for normal operation.

  • Page 39: Buttons

    The device shall be connected using a shielded network cable (STP). All cables connecting the device to the network shall be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer’s instructions. For information about regulatory requirements, see the Installation Guide at www.axis.com.

  • Page 40: Api Commands

    AXIS XC1311 Explosion-Protected Horn Speaker API commands API commands VAPIX® is Axis’ own open API (Application Programming Interface). You can control almost all functionality available in Axis devices through VAPIX®. To get access to the complete VAPIX® documentation, join Axis Developer Community at axis.com/developer-community Enter the commands in a web browser, and replace <deviceIP>...
  • Page 41 AXIS XC1311 Explosion-Protected Horn Speaker API commands Disable FTP Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.FTP.Enabled=no Example: Enable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=yes Example: Disable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=no...

  • Page 42: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 43: Technical Issues, Clues, And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 44: Performance Considerations

    To access the device externally, we recommend you to use one of the following applications for Windows • AXIS Companion: free of charge, ideal for small systems with basic surveillance needs. • AXIS Camera Station: 30-day trial version free of charge, ideal for small to mid-size systems. For instructions and download, go to axis.com/vms.
  • Page 45 User manual Ver. M1.4 AXIS XC1311 Explosion-Protected Horn Speaker Date: February 2024 © Axis Communications AB, 2024 Part no. T10204691...
