DEVA Broadcast DB45 Quick User Manual page 2

This Quick user guide will make the installation of DB45 – DSP-Based FM Radio Receiver and Modulation
Analyzer quick and easy. Applying these principles, you can simplify the process and save yourself extra
time and effort. For more information about the Safety precautions and the Operating environment
recommendations please refer to the User Manual.
STEP 1
Install the unit on its operation place;
Ÿ
Connect the device to 12V DC network using the provided adapter;
Ÿ
Connect the antenna cable to the RF antenna input connector located on the rear panel of the device;
Ÿ
Connect DB45 to the TCP/IP network using a direct network cable;
Ÿ
Connect the optional GSM modem via the supplied connection cable.
Ÿ
NOTE: Please, locate and select a proper place for the GSM antenna for achieving better GSM network
coverage.
STEP 2

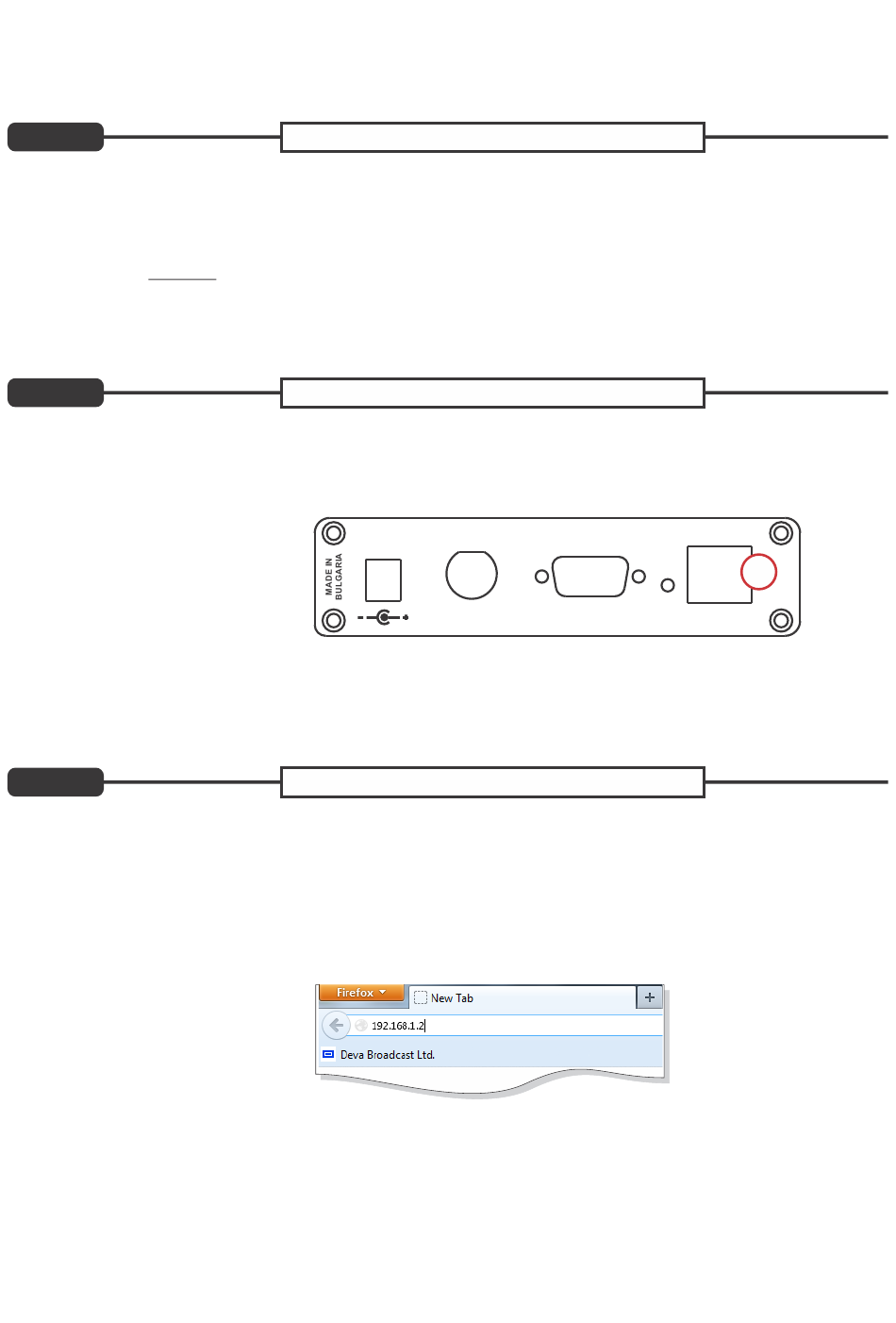

After connecting the network cable the LED 'LAN' indicator
flashing. These are the Default Network Settings:
DHCP: Enabled
IP: Assigned by DHCP
Mask: Assigned by DHCP
Gateway: Assigned by DHCP
DNS: Assigned by DHCP
HTTP Port: 80
NOTE: DB45 has an DHCP assigned IP address by default. In order to establish a communication, your
PC should be connected to the same Sub network as the device. For further information consult
with your network administrator.
STEP 3
DB45 is controlled through a built-in WEB Server and a standard web browser can be used to monitor
its status or to make some adjustments. To operate the device you need to know its IP address and follow
these steps:
1. Open a new WEB Browser;
2. Enter the device IP address in the Address field and press "Enter";
3. A window requiring a username and a password will appear. Default values are username: admin
and password: pass (For more information refer to Step 5).
In case you are not aware of the IP Address, use the Network discovery feature at Local
networks or refer to Step 4.
NOTE: If the port is different than the default one (80), it is need to be specified. For example:
http://192.168.1.2:9000
Connection
Network Settings
(1)
POWER
12V / 2A
ANTENNA
MAX 120 dBµV
WEB Interface
located on the rear panel must be ON or
GSM
LAN
MODEM
1
