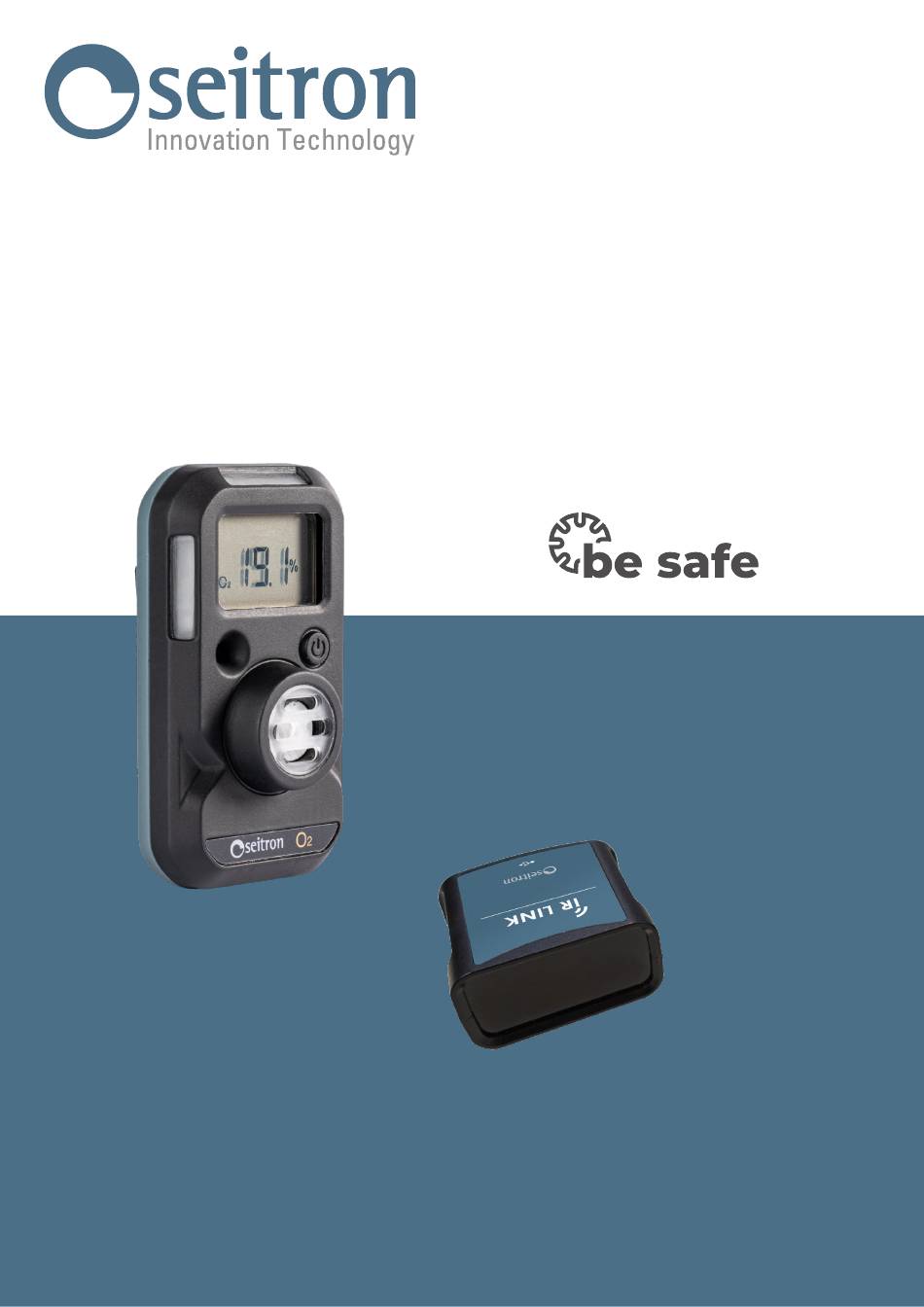

- Page 1 USE AND MAINTENANCE SG --- Single Gas Personal Gas Detector...
-
Page 3: Table Of Contents
INDICE IMPORTANT INFORMATION About this manual Safety Warnings Disposal Warranty Manufacturer’s address SAFETY Safety check Permitted use of the product Unauthorized use of the product OVERVIEW HARDWARE DESCRIPTION PRODUCT ACTIVATION DISPLAY LCD OPERATION User’s Guide Self-test 7.3 Display main configurations (alarm - user ID) Peak value display 7.5 Display BUMP TEST EXECUTION 7.6... - Page 4 PM1G000001SE 043172 110324...
-
Page 5: Important Information
SG contains a lithium battery; arrange for proper disposal only through the appropriate containers. be safe SG should not be disposed of as municipal waste. The complete Waste Electrical and Electronic Equipment (WEEE) management document can be found at: www.seitron.com/legals Warranty The user is guaranteed against product conformity defects according to the European Directive 2019/771 as well as the Seitron warranty conditions document, which can be found at www.seitron.com. The user is invited to visit our website to consult the most up-to-date version of technical documentation, manuals and catalogs. Manufacturer’s address In case of need, the builder can be contacted at the following references: Seitron S.p.A. a socio unico... -
Page 6: Safety
SAFETY Safety check • Use the equipment within the scope of what is described in the “Permitted Use of the Product” chapter. • When using the equipment, follow the ATEX safety instructions given in the product’s quick guide. • Do not use the equipment if it appears damaged; inspect it before each use. • For maintenance of be safe SG, strictly follow what is described in this manual in the “Maintenance” chapter. • All work not specified in this manual may only be performed by Seitron service centers. Otherwise Seitron accepts no responsibility for the normal operation of be safe SG. Permitted use of the product This chapter describes the normal operating conditions of be safe SG: • be safe SG is designed and certified with intrinsic safety. • This product is classified for use in hazardous atmospheres with an O2 content of no more than 21%. • Temperature range, with relative humidity range 5% ... 95% non-condensing: • be safe SG H2S / be safe SG CO / be safe SG SO2 -40 .. +60 °C • be safe SG O2 -30 .. +60 °C Unauthorized use of the product The use of be safe SG under operating conditions other than those mentioned in Section 2.2 “Permitted Use of the... -
Page 7: Overview

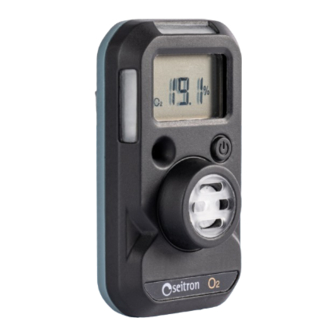

OVERVIEW be safe SG are portable personal safety devices designed to detect the presence of specific individual gases: be safe SG H2S Hydrogen sulfide (H2S) be safe SG CO Carbon monoxide (CO) be safe SG SO2 Sulfur dioxide (SO2) be safe SG O2 Oxygen (O2) In case an alarm condition is detected, the device alarms the user with audible, visual and vibration signals. These are single-use devices, which once activated operate for 24 months without charging the internal battery and without any replacement of components. be safe SG is equipped with a single button, which allows activation of the device, verification of alarm settings and the possibility of performing the Autotest, and through the infrared communication port it communicates with be safe SG IR-Link which connected to a PC, after installation of the be safe SG IR-Link manager software allows the user to configure some parameters of the device.. Users of the device must understand what is described in this manual. For safety reasons, users must be properly trained in the use of the equipment and appropriate actions in case of an alarm. -
Page 8: Display Lcd
• The type of sensor and the remaining life of the device or the gas concetration (if detected) Note: The display mode can be changed through the PC software “be safe SG IR-Link manager”. Example of display during normal operation of be safe SG: When gas is present, the display will automatically show the detected gas concentration, in addition to alarm-related displays. WARNING! If the display has no icons or is not clearly readable, please contact the Seitron service center. PM1G000001SE 043172 110324... -
Page 9: Operation
OPERATION User’s Guide WARNING! For safety, the detector must be positioned near the user (as close to the head as possible), for example, by attaching it to the top of clothing, taking care not to cover the device. This requirement is crucial to enable the product to effectively detect any gas leaks and to distinguish alarms in case the device detects a concentration of toxic gas and/or oxygen deficiency above the set alarm threshold. -
Page 10: Display Main Configurations (Alarm - User Id)
NEGATIVE RESULT If be safe SG fails the self-test, the warning icon “ “ will appear flashing and the icon of the type of the sensor will start flashing. be safe SG will then have to repeat the self-test. Display main configurations (alarm - user ID) From the normal operation screen of the device and with no gas in the environment, pressing the button will successively display the High and Low alarm thresholds and if configured the user name associated with the be safe SG. Through the PC software ‘Be Safe SG IR-Link manager’ (see Appendix A), you can modify the alarm thresholds (High and Low) and associate/modify a username with the device. The ‘User ID’ consists of a maximum of 6 alphanumeric characters and will be displayed on the display in two screens, each with 3 characters. Push the button Peak value display If be safe SG is exposed to a gas concentration above the ALARM HIGH threshold, the display will show the “max” icon and the peak (maximum) value detected: The next screen will sequentially display the date (time, day, month) of when the High alarm occurred and the elapsed time since the peak value was detected. As the last screen, the display shows “CLP” (CLear Peak): pressing the be safe SG button while CLP is displayed will clear the stored peak value and the “max” icon will not be displayed. -
Page 11: Gas Alarm Signal
GAS ALARM SIGNAL Below are the factory settings for gas alarms: Alarm HIGH 15 ppm 200 ppm 10 ppm 23,5% 10 ppm 35 ppm 5 ppm 19,5% It is possible to change the factory settings of gas alarm thresholds using the PC software “be safe SG IR-Link manager” (see Appendix A). To view the alarm settings of be safe SG, press the detector button and wait for the screens to scroll. LOW alarm status (LOW ALARM) A gas concentration higher than the LOW ALARM level set has been detected for CO, H2S, SO2 sensors, or a lower gas concentration for the O2 sensor: 1) Acoustic alarm (1 time/second) 2) LED flashing (1 time/second) 3) Vibrating alarm (0.5 time/second) HIGH alarm status (HIGH ALARM) A gas concentration above the set HIGH ALARM level was detected: 1) Acoustic alarm (2 times/second) 2) LED flashing (2 times/second) 3) Vibrating alarm (1 time/second) STOP DETECTOR ALARM... -
Page 12: 10.0 Events Log
10.0 EVENTS LOG be Safe SG stores the last 30 alarms. The logging system stores alarm events according to FIFO (First In First Out) logic. For example, the 31st event will replace the first event, and the 32nd event will replace the second, and so on. Alarm events stored on be Safe SG can be confirmed and downloaded using the PC software ‘be Safe SG IR-Link manager’ (see Appendix A). The stored information includes: • Serial number of the detector • Remaining life of the detector • Number of self-tests performed • Number of alarms occurred and cumulative duration • Event log data: • Time elapsed since the last alarm • Alarm duration • Alarm level(s) in ppm or %. • Type of alarms • Bump test (yes or no) 11.0 BUMP TEST AND CALIBRATION This section contains important information on the proper calibration and Bump test performance for be safe SG. These procedures are essential to ensure proper operation and accuracy of device readings. -
Page 13: Connection Diagram
CYLINDER 11.3 Performing the Bump Test Through the PC software ‘Be Safe SG IR-Link manager’ (see Appendix A), you can adjust the frequency of performing the Bump Test, which can be set from 1 to 365 days. If the interval is set to zero, be Safe SG will not prompt for the Bump Test NOTE: The device comes from the factory set to zero (Bump test not required). NOTE: Seitron recommends performing the bump test before each use to verify the device’s reliability. PROCEDURE 1. If be Safe SG requires the Bump Test to be performed, the flashing icon “ “ will be displayed on the display. Additionally, the upper LED + left LED and upper LED + right LED will start flashing alternately at intervals of 32 seconds. 2. Connect the adapter and gas cylinder as described in the previous section. 3. Press the button to switch to the inspection screen; the display shows the alarm and user ID configuration sequence and finally settles on the “GAS” screen:... -
Page 14: Performing The Calibration Of "Be Safe Sg O2
If, on the contrary, the calibration was unsuccessful, the device will go into alarm status by activating the audible alarm and the LEDs will flash. If the calibration fails, contact Seitron service center. Note: If the sensor calibration procedure is successful but the O2 indicator remains flashing, it means that the self-test must be performed. -
Page 15: 12.0 Faults
By pressing the button, Be Safe SG will turn off the alarm an audible alarm, flashing LED alarm, and vibrating alarm signals while keeping the error code visible on the display. In every 5 seconds. case this notification occurs, please contact Seitron support The display shows “E05” center for assistance. An EOL STOP alarm has occurred; the detector has generated The battery is continuously monitored throughout the entire an audible alarm, flashing LED alarm, and vibrating alarm duration of the detector’s operation. -
Page 16: Appendix A - Be Safe Sg Ir-Link & Be Safe Sg Ir-Link Manager
APPENDIX A - be safe SG IR-Link & be safe SG IR-Link manager Be Safe SG IR-Link is an IR device (available separately) that, when connected to the PC via a USB cable, can communicate with the single gas detector be Safe SG after installing the “be Safe SG IR-Link Manager” software on the PC, which can be downloaded from the website www.seitron.com. The main operations that can be performed through the PC software “be Safe SG IR-Link Manager” include: • Modifying alarm threshold values; • Setting the interval for Calibration execution; • Setting the interval for Bump Test execution; • Setting the interval for Autotest execution; • Associating the device with a User ID;... -
Page 17: Software Installation Instructions
Software installation instructions 1. Access the website www.seitron.com and select the DOWNLOAD => Apps and Software section. 2. Scroll down the page until you find the section dedicated to the “Be Safe SG IR-Link Manager” software. 3. Click on “Download: version X.XX” where X.XX is the current version of the software. 4. A .zip file download will start. Once the download is complete, click on the button at the top right of your browser to access the “Downloads” folder. CAUTION: The symbol may vary depending on the browser being used. 5) Right-click on the recently downloaded .zip file. Select “Extract All” from the dropdown menu. In the window that opens, select the location where you want to extract the contents of the .zip folder and click “Extract.” 6) Double-click on the extracted folder. 7) Double-click on the previously downloaded “beSafeSGDockManager.exe” file (step 5). The main screen of the be Safe SG IR-Link Manager software will appear. Connect be safe SG Be Safe SG IR-Link and the single gas detector be Safe SG communicate with each other through an IR interface by placing them as shown in the image below. Be Safe SG IR-Link can communicate with only one instrument at a time. -
Page 18: Further Information
Further information When the instrument is connected and the reading is successful, the instrument can be configured. PM1G000001SE 043172 110324... - Page 19 “Exit” Button Closes the App. “Language” Button Set the App language. Users can view information about the connected device. This section is not editable. Information about the Serial number. connected be Safe SG Firmware version and hardware version of the connected device. Remaining life of the device. Gas type detected by the device. High Alarm: Configures the gas concentration at the HIGH alarm limit. Low Alarm: Configures the gas concentration at the LOW alarm limit. Calibration Interval: Specifies how often the device requires calibration (0 to 365 days). Bump Test Interval: Specifies how often the device requires a Bump test (0 to 365 days). Autotest Interval: Specifies how often the device requires an Autotest (8 to 168 hours). User ID: Customized ID for the device. Up to 6 characters. User-configurable data Display: Device display mode. Sensor/Remaining Life: When a gas concentration is detected, the sensor reading or the remaining life of the device is displayed. Sensor reading: sensor reading is always displayed. Remaining life: Remaining life is always displayed. Hide Bump Test LED flashing: checked, hides the flashing of the LEDs when performing the Bump Test. Enable manual self-test: checked, enables manual self-test. “Read” button Allows to read device information and settings.
-
Page 20: Language Configuration
Language configuration 1. Click on the “language” button. 2. Select one of the available languages. 3. Click on “Font” to set font details. Features Read device information and settings - Click on “Read”. Change device settings 1. After clicking on “Read Device” and reading the imformation and setting of the device, you can change the settings the device by clicking on the “ “ and/or “ “ icons or directly typing in the value. 2. Click on “Write device” to save the changed settings to the be safe SG. Save event log 1. Click “Save Event Log.” 2. The pop-up to save the .csv file will be displayed. Specify the folder and file name and save the document. Sensor calibration Through the be safe SG IR-Link PC software, Calibration of be safe SG gas detectors can be performed, regardless of whether the instrument requires calibration or not, using certified gas cylinders. -
Page 21: Firmware Update
“ containing the error that caused the calibration to fail. If the calibration fails, the device’s display will show “CAL” and the flashing “ “ icon. Repeat the calibration, and if it fails again, contact Seitron support center. 6. Stop the gas flow and remove the calibration adapter. Firmware Update The manufacturer periodically updates the firmware to correct or improve the instrument’s performance or to add additional features. -
Page 22: Troubleshooting
SG IR-Link is not installed on the PC. Delete the existing driver or program and reinstall it. If this symptom recurs after reinstallation, contact the Seitron service center. The USB communication port of the PC to which be safe SG Make sure that be safe SG IR-Link is connected to the PC. IR-Link is connected is not installed. Delete the existing driver or program and reinstall it. - Page 24 Seitron S.p.A. a socio unico Via del Commercio, 9/11 - 36065 - MUSSOLENTE (VI) ITALY Tel. 0424.567842 - info@seitron.it - www.seitron.com...
