Epoch Design ABIGAIL 5500 Assembly Instructions

1/4
Congratulations on the purchase of your Abigail Platform Bed. This bed has been crafted to the highest
standards of quality and safety and will give you many years of enjoyment and practical use.
On this insert you will nd a list of the hardware and platform bed parts as well as detailed assembly
instructions. Assembly is quite simple and requires only a Phillips head screwdriver.
The use of a power drill with Phillips head attachment is helpful but not necessary. Assembly will be most easily
accomplished if you take the time to carefully sort the hardware and familiarize yourself with the function of each
piece.
If you need assistance with assembly, part replacement or any other matter, please contact the toll-free
Epoch Design Customer Service Team from Monday through Friday, 9 AM-6 PM PST at 1 (800) 589-7990. You may
also email your request or comments to info@epochbydesign.com and a customer service representative will
respond.
8x 45mm Bolts
Used to attach headboard & valance
mm 10 20 30 40
A
2x Side Rails
Used to connect end boards
HAVE QUESTIONS OR CONCERNS? CALL US FIRST: 1-800-589-7990

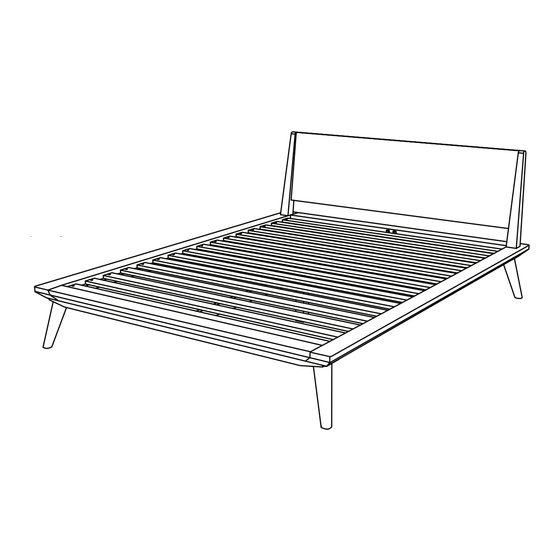

ABIGAIL PLATFORM BED
HARDWARE LIST
20x 15mm Bolts
Used to attach legs
& corner brackets
24x Spring Washers
Used to attach legs
& corner brackets
50 60
B 1x Headrail
C
1x Footboard
Has 3 dowel holes on
bottom side for valance
COPYRIGHT © 2023 EPOCH DESIGN™ ALL RIGHTS RESERVED
5500 Queen, 5501 King
3x 30mm wood dowel
Used to attach the valance
24x Flat Washers
Used to attach legs
& corner brackets
BED PARTS
E
4x Legs
1x Center Support
F
G 2x Drop Foot
Thank you and Enjoy
38x 25mm Wood Screws
Used to attach slat bundle to rails
& center support to brackets
1x Allen Wrench
Used to tighten bolts
D
1x Headboard
I 1x Valance
H
1x Slat Bundle
rests on side rails (strap side down)
& supports mattress
Oct-2023
