Beok Controls TDR89 User Manual

TDR89 ZIGBEE THERMOSTAT USER GUIDE
THIS THERMOSTAT IS SUITABLE FOR WATER HEATING, ELECTRIC
HEATING AND GAS BOILER
Welcome
Thank you for your trust and support. By adopting higher-end technology and
more perfect technology, your new thermostat will provide you with the right
temperature environment every day in the future, making your life more
comfortable and your living environment more stylish and beautiful. For detailed
instructions on the installation and use of this thermostat, please read this manual
carefully. Please contact a professional to install the thermostat for you and install
and use the product to the extent permitted by law.
Application
Intelligent digital temperature controller is a floor heating system suitable for room
temperature control and household temperature control. It controls the operating
state of the floor heating equipment by comparing the ambient temperature with
the set temperature, which improves comfort and achieves energy saving. This
digital temperature controller adopts microcomputer control technology and is
equipped with full-screen display touch buttons, which is elegant in design and
easy to use. The thermostat has manual automatic, programmable and state
memory functions.
Product packaging
Thermostat host 1 PC
Sensing line (optional) 1 PC
Screw 2 PCS
Product Model
WP Plumbing 3A
EP Electric Heating 16A
WPB linkage, gas boiler 3A
User Notes
1.Please read this manual carefully. Improper operation may damage the product
or cause dangerous conditions.
2.The installation personnel must be well-trained and experienced service
Qualification certificate 1 PC
Manual 1 PC
technicians.
3.After installation, please read this manual carefully and operate the product
according to the instructions.
Caution: Risk of electric shock or equipment damage.

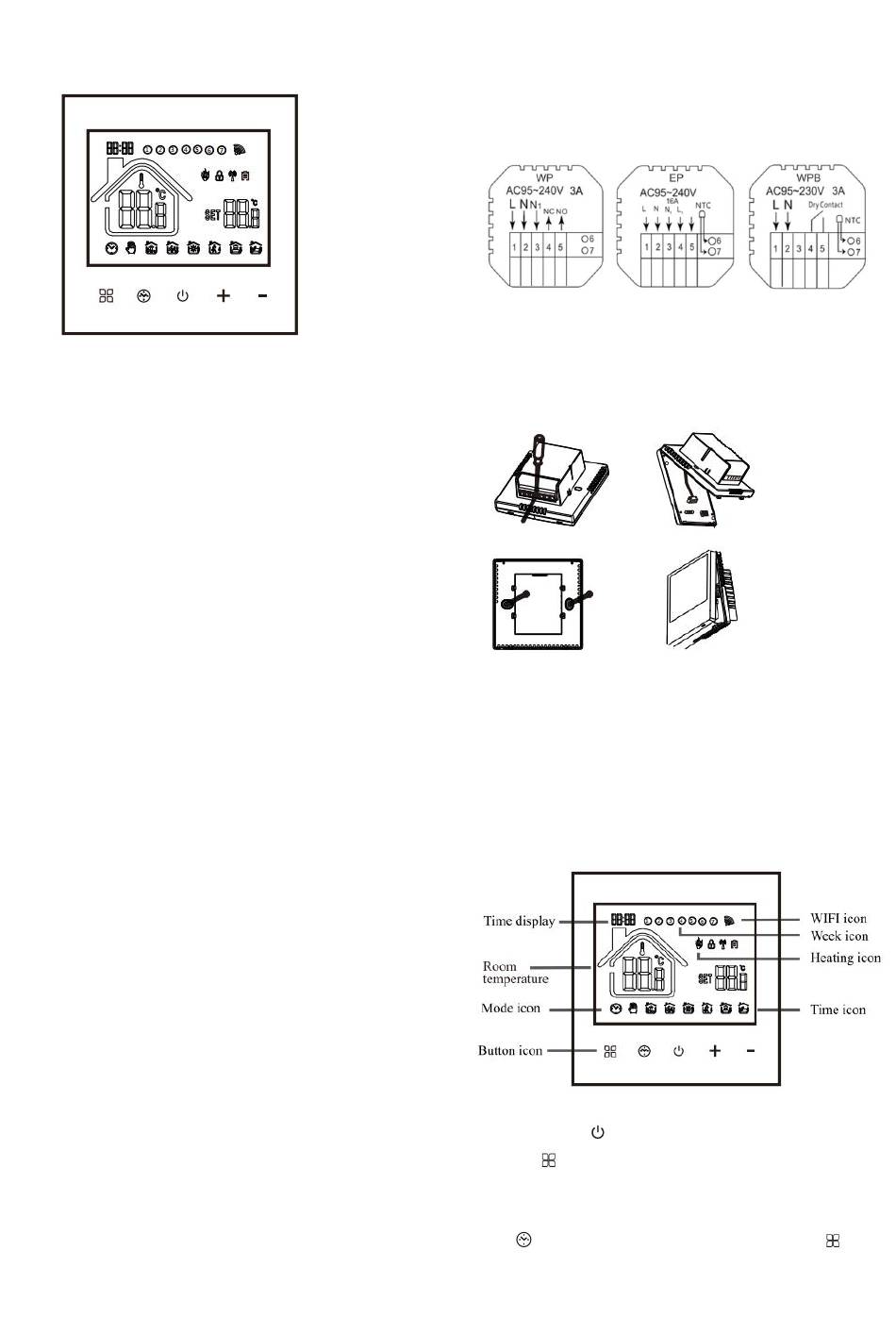

Wiring Diagram
Note: WP for water heating; EP for electric heating; WPB for gas boiler
Installation procedure
This product is installed with a standard 86 control switch (in compliance with
European regulations).
1.
3.
1. Connect the power box according to the wiring diagram.
2. Separate the power supply from the control board cable.
3. Screw the power supply into the box of 86.
4. Connect the power board to the control board line, and align the buckle at 30
degrees to complete the installation.
Description of display & Icon
Operating Instruction
1. Power on/off: press to turn on/off the thermostat.
2. Press the key to switch between manual and automatic modes.
3. In the automatic mode, press
automatic temporary mode. This mode runs for only one session.
4. Press key to enter the clock setting, press the mode key
settings options, and press the
parameter.
2.
4.
+ -
or to adjust the temperature to enter the
+ -
and keys to adjust the value of each
to switch
