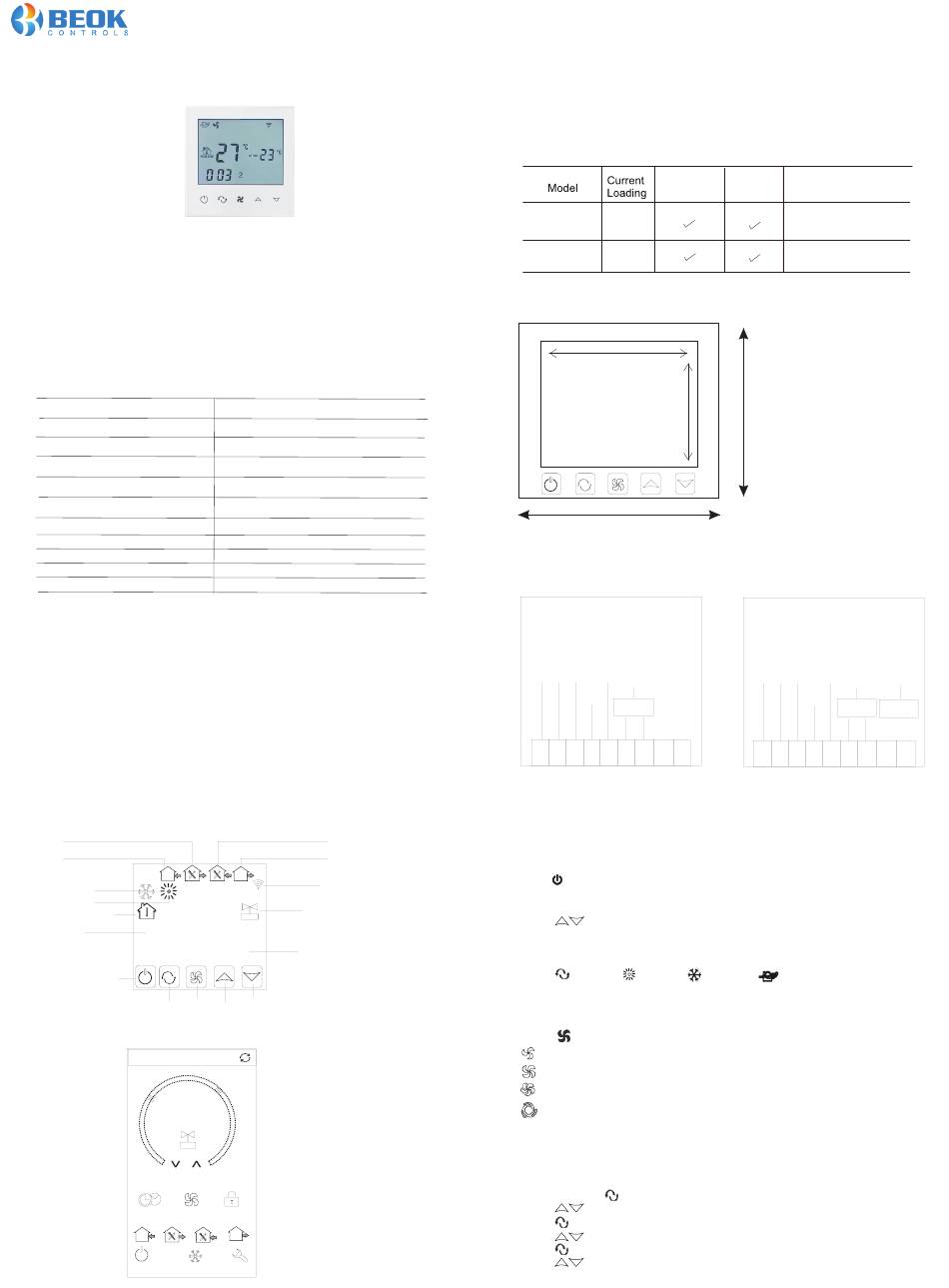

Beok Controls TDS21WIFI-AC2 Manual

TDS21 WIFI FAN COIL THERMOSTAT
I. Product Summary:
TDS21
WIFI Fan Coil Thermostat is touch screen thermostat with WIFI Function,
the thermostats can be controlled by phone App.(IOS and Android phone)
It is designed to control the fans and valves in air conditioner applications
via comparison of the room temperature an setting temperature as reaching
the aim of comfort and saving energy.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. Heating, cooling, ventilation mode.
2. WIFI for Andriod & Apple IOS phone.
3. Large Glass screen display and touch screen type.
4. 2 pipe and 4 pipe for choose.
. 5 3 fan speed+Auto.
6. Programmable timing switch function, 4 period a day setting.
7. Temperature compensation when differs from actural temp.
8. Selectable 80mmx80mm European hidden box.
9. Key Lock function.
10.Fan coil in-control and out-of-control adjustable.(only for 2 pipe)
IV. User Interface Explanation
Timer off setting 1
Timer on setting 1
Cooling
28
Heating
Room Temp
ROOM
TEMP
1 2 3 4 5 6 7
Week
0:01 22
SET TEMP
Power on/off
Mode Fan
V. User Interface Explanation
< My Thermostat
TEMP.SET.TO
19
14:03 Monday
8:00 11:31 12:32
Power Mode
AC200~240V 50 ~60Hz
3A~5A
<0.5W
PC+ABS (flame retardant）
NTC
10-40℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
<1％
(Thermostat Port)
Timer on setting 2
Timer off setting 2
WIFI
℃
Valve on
℃
Set Temp
Down
Up
(Phone Port)
28
17:03
Senior
VI. Model Spec
Program
Time switch
TDS21WIFI-AC2
3A~5A
TDS21WIFI-AC4
3A~5A
VII. Dimension
64mm
48mm
86mm
VIII.Wiring Digram
AC230V 50/60HZ
L N Hi
Low
Val 1
Mid
NO NC
1 2 3 4 5 6 7 8 9
2 pipe
IX. Thermostat Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the System Mode
Press to select heating,
Factory Default is ventilation.
4. Setting the Fan Speed
Press to select the fan speed.
is Low speed(Factory default);
is Mid speed;
is High speed;
is Auto speed.
In auto mode, the fan will run according to the comparison of room
temperature and set temperature.
5. Setting the Real Time.
Press and hold for 3 sec., hh will flash in the position of hh: mm.
Press to adjust the current hour.
Press , mm will flash in the position of hh: mm.
Press to adjust the current minute.
Press , 1 will flash in the position of week: 1234567.
Press to adjust the current week.
Controlled Objects
Key Lock
2 pipe
central air conditioner
4 pipe
Central air conditioner
86mm
AC230V 50/60HZ
L N Hi Low
Val 1
Mid
NO NC NO NC
1 2 3 4 5 6 7
4 pipe
cooling or ventilation.
Val 2
8 9
1
