Beok Controls TDS23-AC2 Manual

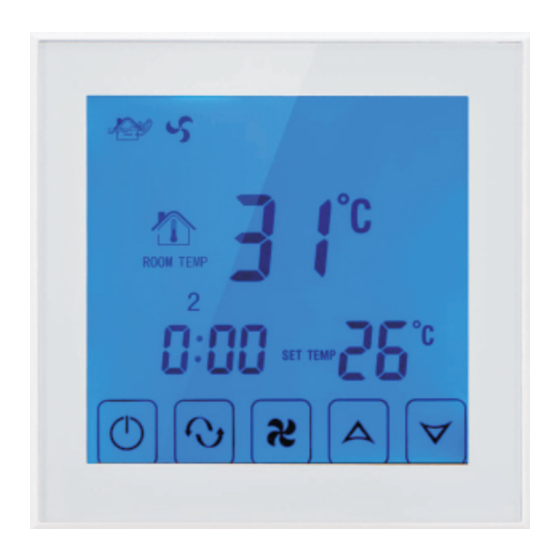

TDS23-AC GLASS SCREEN THERMOSTAT
I. Product Summary:
TDS23-AC
Series thermostats are designed to control the fans and valves
in air conditioner applications via comparison of the room temperature and
setting temperature as reaching the aim of comfort and saving energy.
II. Technical Parameter:
III. Main Functions and Characteristics
1. Modern design similar as a cell phone.
2.Large glass screen display with back-light, white words show.
3.2-pipe and 4-pipe for choose.
+
4.3 Fan speed auto timer switch for daily or week
. 5 With daily programmable function, 4 period settings.
6.Selectable 80mmx80mm hidden box.
7.Precise comfort control keeps temperature within1°C of the level you set.
IV. User Interface Explanation
V. Model Definition
AC 2: Two pipe, for air conditioning
AC 4: Four pipe, for air conditioning
For example: TDS23-AC2
VI. Model Spec
Spec
Fan Speed
3 Fan speed+Auto
2 Pipe
TDS23-AC2
4 Pipe
TDS23-AC4 3 Fan speed+Auto
AC85~260V, 50/60HZ
3A
<0.5W
PC+ABS (flame retardant）
NTC
10℃ - 40℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
80x80mm
.
Daily
Timer
Clock set
Programmable
√
√
√
√
VII.Wiring Digram
VIII. Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
Factory default is 26 ℃.
3. Setting the System Mode
Press to select heating,
Factory Default is ventilation.
4. Setting the Fan Speed
Press to select the fan speed.
is Low speed(Factory default);
is Mid speed;
is High speed;
is Auto speed.
In auto mode, the fan will run according to the comparison of room
temperature and set temperature.
5. Setting the Real Time.
Press and hold for 3 sec., hh will flash in the position of hh: mm.
Press to adjust the current hour.
Press , mm will flash in the position of hh: mm.
Press to adjust the current minute.
Press , 1 will flash in the position of week: 1234567.
Press to adjust the current week.
6. Setting the Regular Boot
Press for more than 3 seconds, after setting the time, continue to press
until and "hh" twinkling. Press
After the adjustment of hours, press
to adjust the minutes.
After the completion of all adjustments ,press
does not twinkle, Regular boot setup is complete.
The operation of canceling Regular boot is the same, press
state of Regular boot, then pressing
has been canceled.
7. Setting the Off Timer
After the setting of Regular boot, press
press to adjust the hours.
After the adjustment of hours is completed, press
press to adjust the minutes.
After the completion of all adjustment, press
not twinkling, Off timer setup is completed.
The operation of canceling Off timer is the same, press
Off timer, then pressing , the
The setting of the third period and forth period are same with the first and
second period, the icons are
cooling or ventilation.
to adjust the hours.
until the "mm" twinkling, press
to confirm, then
to the
,the
is twinkling, Regular boot
again, until and "hh" twinkling,
until the"mm"twinkling,
to confirm, then
to the state of
is twinkling, Off timer has been canceled.
(on, off/into the house, out of the house)
does
