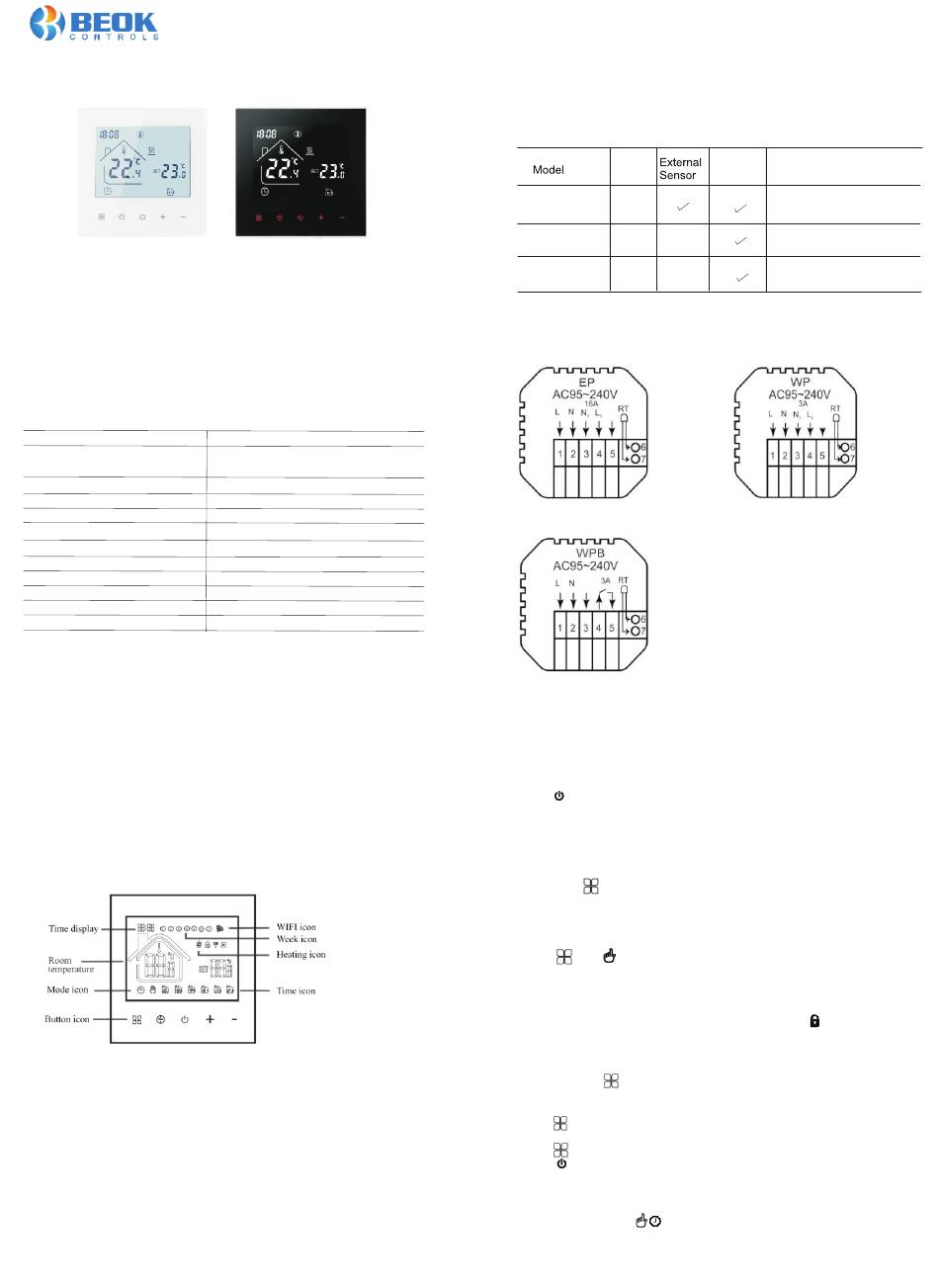

TDR89 GLASS SCREEN THERMOSTAT
I. Product Summary:
TDR89 series thermostats are luxurious programmable thermostat with
large screen display.It is applied to temperature control of industrial,
commercial and domestic room,and start of control heating applicance,
especially used in the floor-heating systems.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. Modern design same as a cell phone
2. Large screen display and touch button
3. Power-off memory function
4. Real-time data save function
. 5 5+2 or 6+1or 7days six periods program schedule
6. Anti-freezing function
7. 3 sensor modes can be setting
8. Selectable 80mmx80mm European hidden box.
9. With child lock function
IV. User Interface Explanation
V. Model Definition
EP: For Electric Floor Heating System, 16A
WP: For Water Floor Heating System, 3A
WPB: For Gas Boiler Heating System, 3A
For example: TDR89-EP
TDR89-WP
100 ~ 240V
≤3A(water heating/gas boiler)
≤16A(electric heating)
<1W
PC+ABS (flame retardant)
NTC
5-95℃
5-60℃
±1℃
86x90x14mm
0-45℃,5-95%RH(Non-condensing)
-5~55
<1%
TDR89-WPB
VI. Model Spec
Current
Loading
16A
TDR89-EP
TDR89-WP
3A
3A
TDR89-WPB
VII.Wiring Digram
TDR89-EP
TDR89-WPB
VIII. Thermostat Operation Instruction
1. Setting Power on/off
Press
to turn on/off the power.
2. Setting Temperature
+
-
Press "
" or "
" to set the temperature.
3. Setting the Clock
+
Long press
and "
" to set minute, hour and week.
+
-
Press "
" or "
" for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press
then
will display in the screen, it is in manual mode.
+
-
Press "
" or "
" to set the temperature.
5. Setting the Child Lock
+
-
Long press "
" and "
" to enter into child lock mode,
+
-
Long press "
" and "
" again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold
into programmable mode. 12345 and time will display.
12345 display in the position of week means 5+2;
+
-
Press "
" or "
" to change the time.
Press
to do the temperature adjustment.
+
-
Press "
" or "
" to change the temperature;
Press
to do the next period adjustment.
Press
to exit and save.
If you want to make temporary adjustment in any period,
+
-
press "
" or "
", then
will display. When finish the setting, all will
confirm automatically.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
TDR89-WP
will display.
