Introduction
FEATURES:
• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & 1.1 devices
• USB3.2 Gen1 data transfer rate up to 5Gbps*
• 1x USB-C port on the receiver for connection to host device
• 1x USB-C host charging port for connection of external power supply to power host device
• 1x USB-A & 1x USB-C port on transmitter for connection to devices
• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required.
*Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type
Contact:
support@blustream.com.au

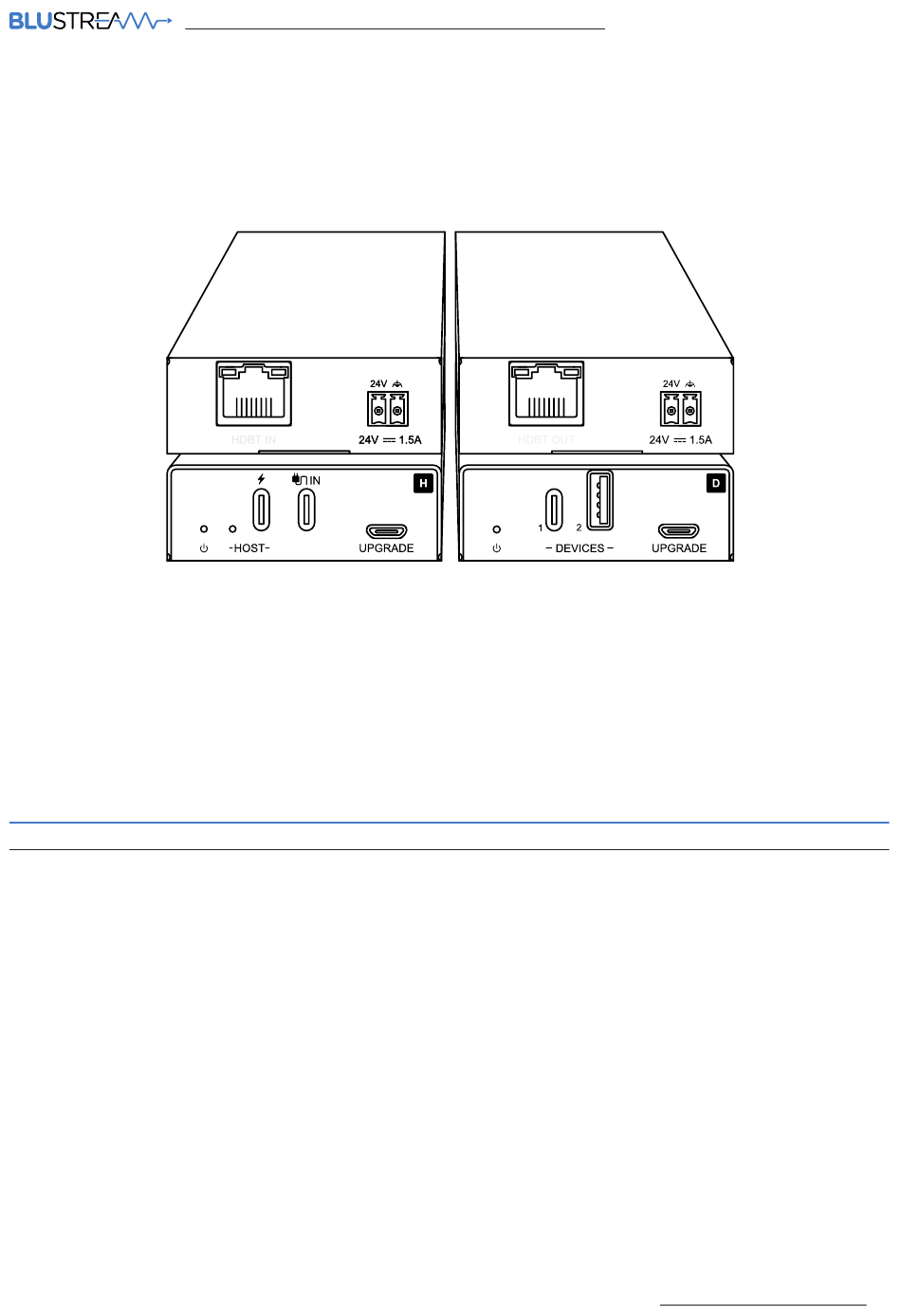

UEX3C-KIT
Quick Reference Guide
HDBT IN
The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB
3.2 Gen1 signals up to 100m over a single CAT cable. The UEX3C-KIT allows up to 2
USB devices to be connected to a single USB host with support for a transmittion
data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB
2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC)
The UEX3C-KIT is ideal for applications requiring extension of USB 3.2 Gen1
conferencing cameras, video capture devices, Flash/hard drives, KVM devices,
audio devices and other USB 3.2 Gen1 devices
|
support@blustream-us.com
UEX3C-KIT
HDBT OUT
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
Advertisement
Table of Contents
Related Manuals for Bluestream UEX3C-KIT
Summary of Contents for Bluestream UEX3C-KIT
- Page 1 The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT cable. The UEX3C-KIT allows up to 2 USB devices to be connected to a single USB host with support for a transmittion data bandwidth up to 5Gbps.
-
Page 2: Side Panel Descriptions
UEX3C-KIT QUICK REFERENCE GUIDE Host Panel Descriptions HDBT IN Power Status Indicator - Illuminates when UEX3C-H is powered on Host Status Indicator - Illuminates when a USB Host is connected Host Input - USB-C port connects to USB Host (PC / Laptop). Can provide charge to Host if USB-C Charge Input port... - Page 3 3.0 products. ™ Blustream recommend using CAT6A F/UTP, or better, for use with the UEX3C-KIT. Understanding the HDBaseT™ Signal Status Lights The Blustream HDBaseT™ extender solutions include status LED indicators on both the Transmitter and Receiver products to show all connections are active and to help diagnose possible problems.
-
Page 4: Specifications
UEX3C-KIT QUICK REFERENCE GUIDE Specifications • UEX3C-D UEX3C-H 1x USB-C, female, 1x USB-A, female • USB Host Connectors: • USB Host Connectors: 1x USB-C, female 1x USB-C, female • USB Charge Connectors: • USB Charge Connectors: 1x USB-C, female • CAT Connectors: 1x HDBaseT™... - Page 5 UEX3C-KIT QUICK REFERENCE GUIDE Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Installer Notes
UEX3C-KIT QUICK REFERENCE GUIDE Installer Notes www.blustream.com.au www.blustream-us.com www.blustream.co.uk... - Page 7 UEX3C-KIT QUICK REFERENCE GUIDE Installer Notes Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk UEX3C-KIT_QRG_REVA1...
- Page 8 www.blustream-us.com www.blustream.com.au www.blustream.co.uk...
