Bluestream HEX70CS-KIT Rev 2 Quick Reference Manual

HEX70CS-KIT

Introduction

FEATURES:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 support
contact
support@blustream.co.uk
Quick Reference Guide

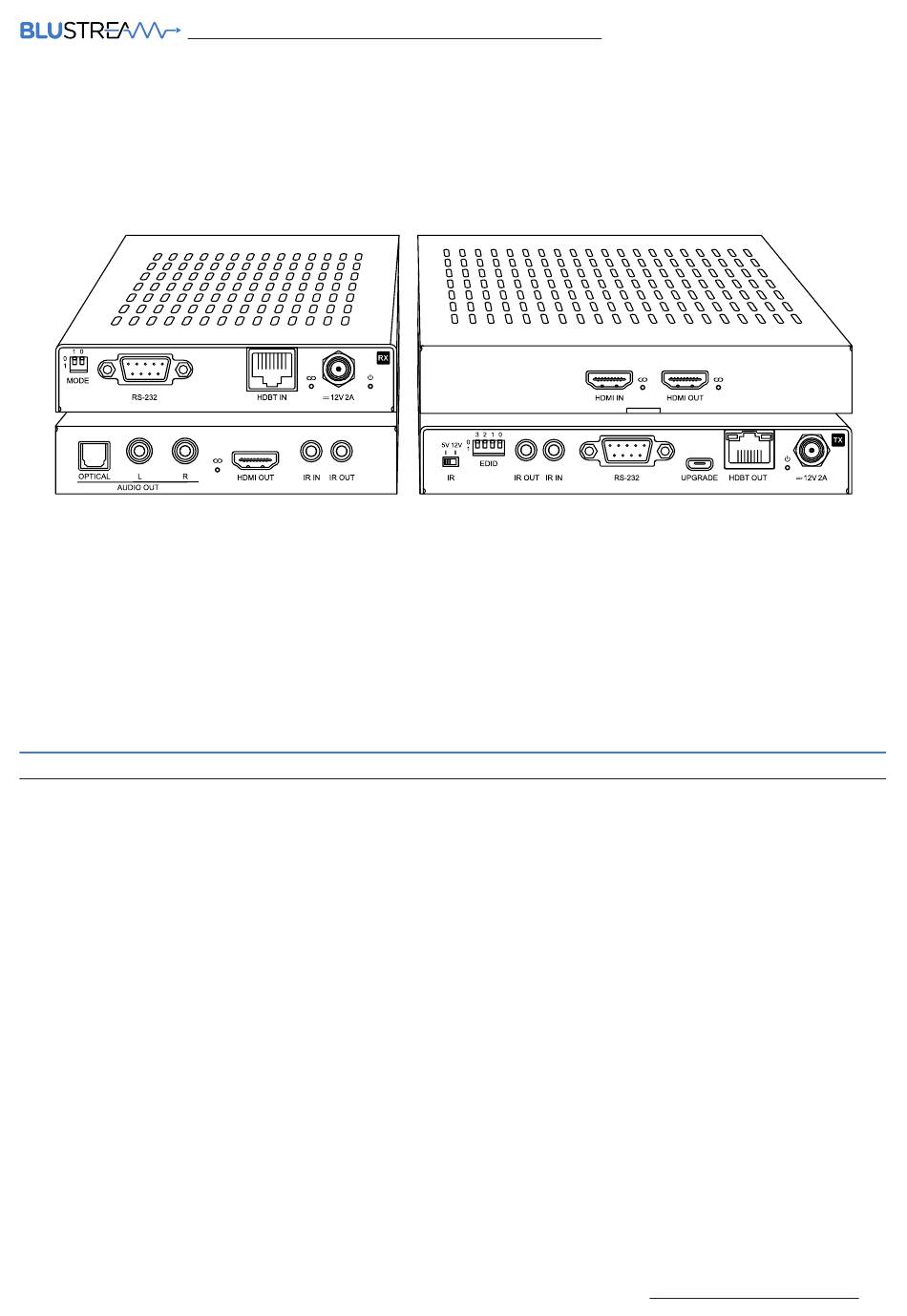

Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender
set offers market leading features and outstanding value utilising CSC technology.
The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC
(Power over Cable) up to lengths of 70m (4K to 40m). The Transmitter includes a
HDMI loop-out for integrating local displays or cascading onto multiple devices.
The Receiver features simultaneous analogue stereo and digital optical (S/PDIF)
audio breakout.
|
support@blustream.com.au
HEX70CS-KIT
|
support@blustream-us.com
QUICK REFERENCE GUIDE
Rev 2
01
