Page 1: User Manual
HEX70B-RX Receiver HEX70B-TX Transmitter HEX70B-KIT User Manual Revision 4_04-2018... -
Page 2: Table Of Contents
HEX70B-KIT USER MANUAL Contents Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully Introduction before connecting, operating or adjusting this product. Please keep this manual for future reference. Features Panel Descriptions Terminating HDBaseT CAT Cables Surge protection device recommended Understanding TX/RX Status Lights... -
Page 3: Introduction
HEX70B-KIT USER MANUAL Introduction Our HEX70B-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value. The product delivers HDMI, Bi-directional IR and Bi- directional PoH (PoE) up to lengths of 70m. FEATURES: • Advanced HDBaseT technology offering uncompressed video and audio with zero latency •... -
Page 4: Panel Descriptions

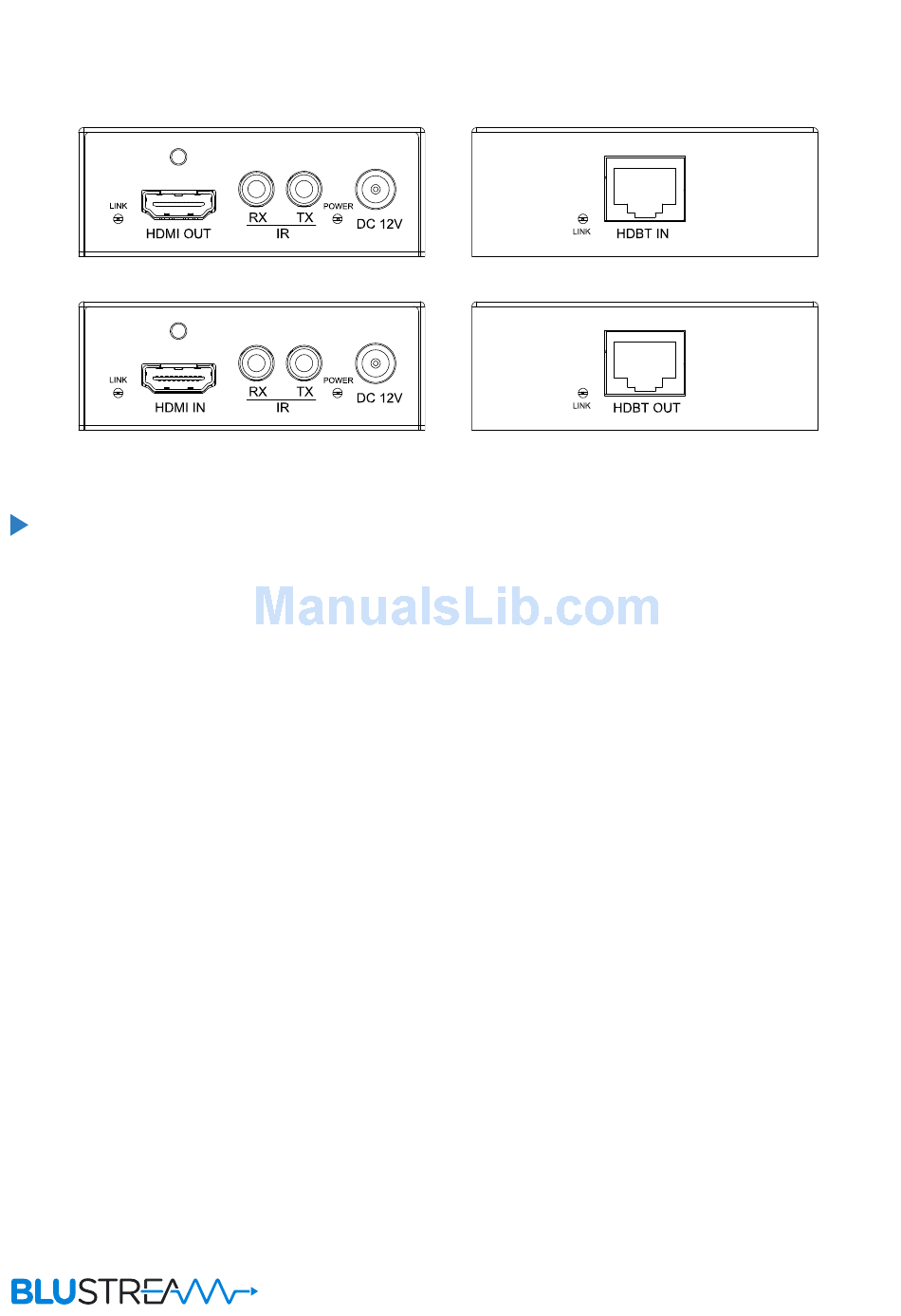

HEX70B-KIT USER MANUAL Panel Description HEX70B-RX HEX70B-RX Receiver HDMI link indicator HDBaseT signal link indicator HDMI output HDBaseT input IR RX jack (to Blustream 5V IR Receiver) IR TX jack (to Blustream 5V IR Emitter) Power status indicator DC 12V screw type connector... -
Page 5: Terminating Hdbaset Cat Cables
HEX70B-KIT USER MANUAL Terminating the interconnecting HDBaseT CAT cable It is important that the interconnecting CAT cable between the Blustream HDBaseT products is terminated using the correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wir- ing standard as this format is less prone to EMI (Electro-Magnetic Interference). -
Page 6: 4K Video Distribution
4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 For distribution of video resolutions exceeding the maximum capabilities of the HEX70B extender kit please contact your local Blustream distributor Example Schematic HEX70B-Kit DISPLAY 1 SOURCE HEX70B-Tx HEX70B-Rx HDMI Receiver Transmitter 70m max Cat 5/5e/6 IR Cable HDMI... -
Page 7: Infrared Distribution
HEX70B-KIT USER MANUAL Infrared (IR) Distribution The Blustream range of HDBaseT products include multiple options for control and routing of IR. IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use Blustream IRCAB cable for IR conversion (sold separately). -
Page 8: Specifications
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents HEX70B-KIT HEX70B-RX (when sold individually) • 1 x HEX70B-TX and 1 x HEX70B-RX • 1 x HEX70B-RX • 1 x 12V/2A DC power supply • 1 x Mounting bracket set •... -
Page 9: Installer Notes
HEX70B-KIT USER MANUAL Installer notes: contact support@blustream.co.uk / support@blustream.com.au... - Page 10 www.blustream.co.uk www.blustream.com.au RevA4_UserManual_HEX70B-KIT_270418_Print...
