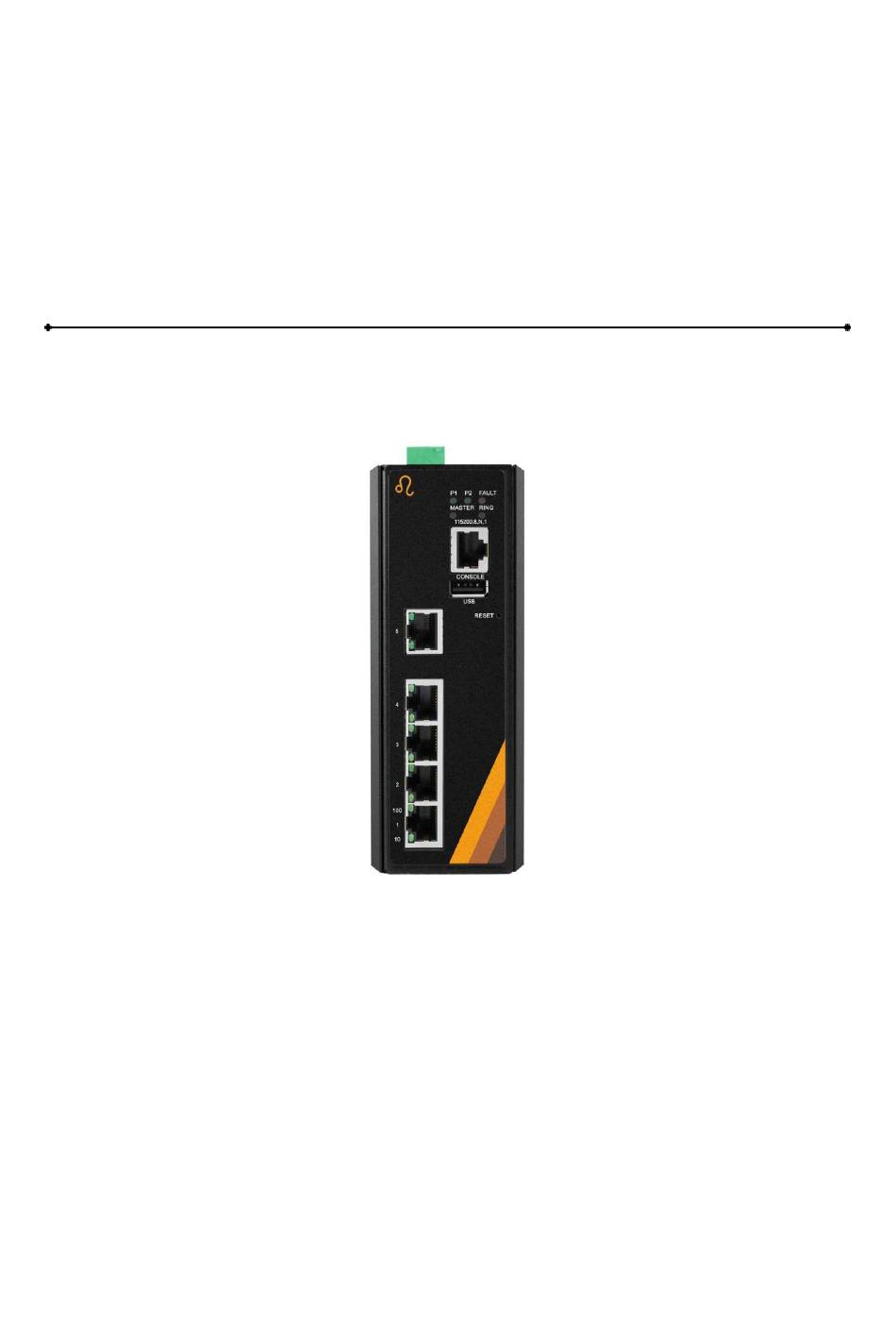

- Page 1 Leonton ET5-0500 Series (ET5-0500 / ET5-0500-T) User Manual...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Software Features ....................1 Hardware Features ....................2 Package Contents ....................3 Safety Precaution ....................3 Hardware Description ....................4 Physical Dimensions ....................4 Front Panel ......................5 Top View ....................... 5 LED Indicators......................6 Ethernet Ports ....................... 7 Cabling ........................ -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial managed Ethernet switch series has 5*10/100Tx Fast Ethernet ports, suitable for applications that require high bandwidth and long distance communication. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection. -
Page 6: Hardware Features
PoE ports weekly power scheduling Port Configuration Port Status, Statistics, Monitoring, Mirroring, Security, and Rate Limiting Event Handling Event notification by Email/Syslog: System Cold Start, port link-up/down Fault Alarm Relay Output for power failure, port link-down/broken Software Upgrade ... -
Page 7: Package Contents
Package Contents 1 - ET5-0500(-T) product 1 - User manual CD 2 - Wall mounting brackets and screws 1 - RJ45 to DB9 Serial Console cable Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of ET5-0500 series: 5-port industrial managed Ethernet switch, with 5*10/100Tx Fast Ethernet. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1: ET5-0500 Series Physical Dimensions... -
Page 9: Front Panel

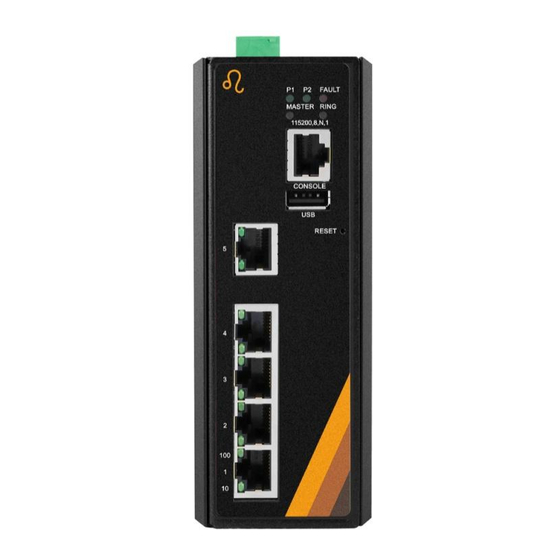

Figure 2.2: The Front Panel of ET5-0500 Series Top View Figure 2.3, below, shows the top panel of the ET5-0500 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC). Figure 2.3: Top Panel View of ET5-0500 Series... -
Page 10: Led Indicators
Not connected to network Green Connected to network, 10Mbps Flashing Networking is active (LAN Port 1-5) Not connected to network Table 2.4: LED Indictors for ET5-0500 Series Caution: "PWR" is the abbreviation for "Power", "L" is for "Link", and "A" is for "Activity". -
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports(Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Wiring the Power Inputs Please follow the below steps to insert the power wire. -
Page 13: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.9. Figure 2.9: Grounding screw Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 14: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.1010. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.1010. -
Page 15: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 16 Figure 3.2: Insert the Switch on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 17: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. - Page 18 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 19: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install ET5-0500 series: 5-port industrial managed Ethernet switch, with 5*10/100Tx Fast Ethernet. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 20: Maintenance And Service
Maintenance and Servicce If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. ... -
Page 21: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’...
