Summary of Contents for Leonton ET2-0800-M12-67

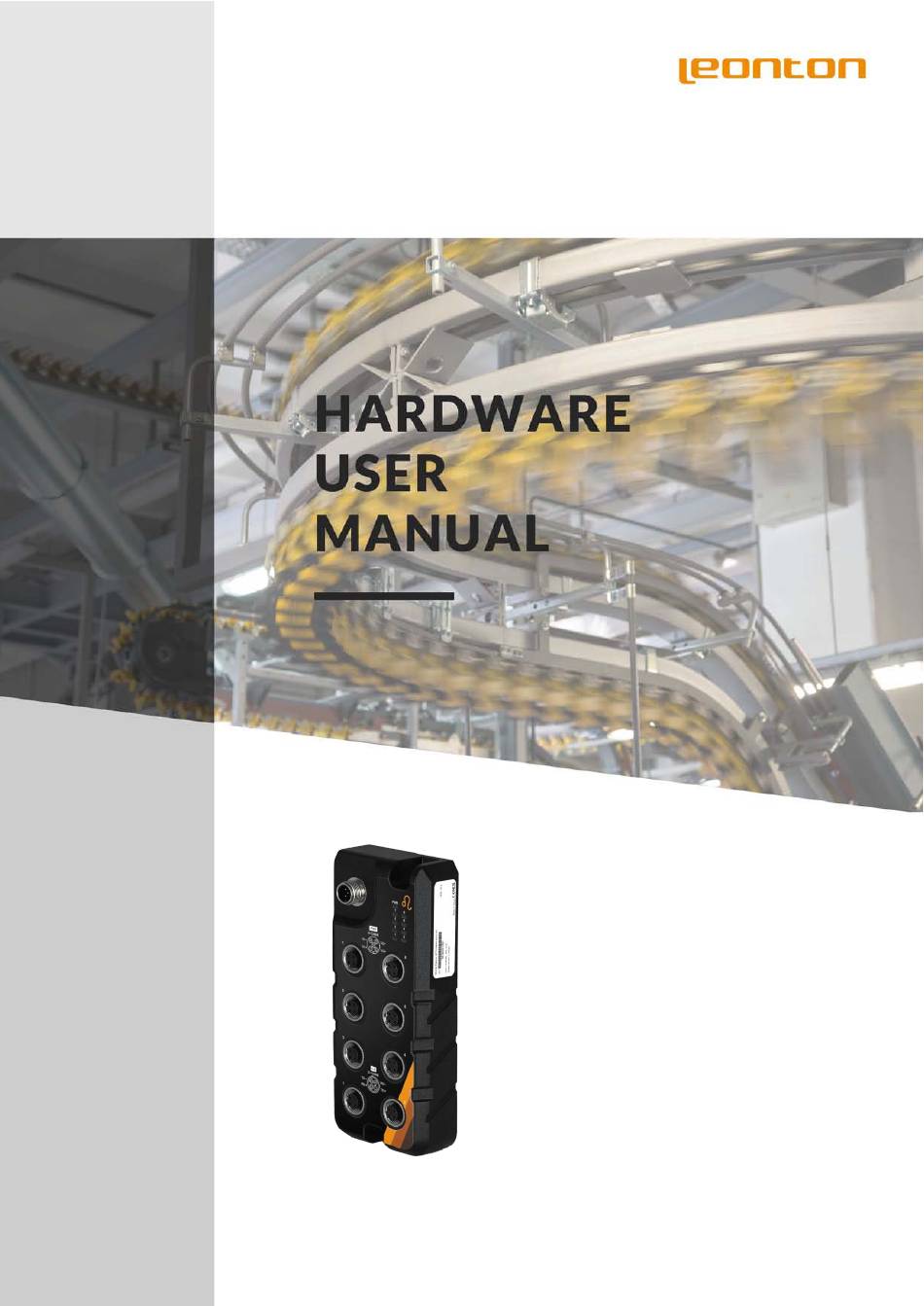

- Page 1 ET2-0800-M12-67 ET2-0800-M12-T67...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ............................1 Key Features ................................1 Package Contents ..............................2 Safety Precaution ..............................2 HARDWARE DESCRIPTION ......................3 Physical Dimensions ..............................3 Front Panel ................................. 4 LED Indicators ................................5 Grounding .................................. 5 Ethernet Ports ................................6 Wiring the Power Inputs ............................7 MOUNTING INSTALLATION ....................... -
Page 5: Overview
OVERVIEW This series is rated IP67 and installation by Wall mounting. Each unit of this industrial M12 unmanaged Ethernet switch series has 8*10/100BASE-TX Fast Ethernet M12 Ports, which the M12 interface provides auto detection of MDI or MDI-X. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection. -
Page 6: Package Contents
Package Contents 1 - ET2-0800-M12-(T)67 - Unit weight: 0.35 kg (0.77 lb), Shipping weight: 0.47 kg (1.03 lb) 1 - Din Rail Kit with Screws 1 - Quick installation guide 8 - M12 Protective Caps 1 - M12 Protective Caps for Power Input ... -
Page 7: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of ET2-0800-M12-67 series. (W x H x D) is 66mm x 152mm x 27.5mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel
Front Panel The front panel of the ET2-0800-M12-67 series industrial unmanaged Ethernet Switch is shown below in Figure 2.2. Power Inputs Port (M12 5-Pin A-Coded Male connector) Screw Holes for Wall Mounting Grounding Screw Power LED 10/100Mbps Link/Act LED 10/100BASE-TX Ethernet Port... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Power input 1 or 2 is active... -
Page 10: Ethernet Ports
Ethernet Ports M12 Interface (Auto MDI/MDIX) Connection Format: M12 4-Pin D-Coded Female Connector • Transmission Rate: 10 Mbit/s or 100 Mbit/s • Prepare the M12 4-Pin D-Coded Ethernet Port mating cable for Ethernet connection. The M12 D- Coded Ethernet ports are auto-sensing for 10BASE-T or 100BASE-TX devices connections. Auto MDI/MDIX means that you can connect to another switch or workstation without changing straight through or crossover cabling. -
Page 11: Wiring The Power Inputs
Wiring the Power Inputs This industrial Ethernet switch provides dual DC power inputs for redundancy through a M12 5-Pin A- Coded male connector. Prepare the M12 5-Pin A-Coded cable for power connection. Table 2.3 shows the pin assignment. M12 5-Pin A-Coded Male Power Connector Illustration Pinouts Function... -
Page 12: Mounting Installation
MOUNTING INSTALLATION Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. Step 1. Prepare 2 screws for mounting the switch to a wall. Note: Recommended use the M4 or M5 screws. Step 2. -
Page 13: Din-Rail Mounting
DIN-Rail Mounting Follow the steps below to learn how to install the DIN-Rail on the industrial Ethernet switch and how to hang the switch. Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch as shown in Figure 3.2. - Page 14 Step 2. After the DIN-Rail bracket is installed on the rear side of the switch, see Figure 3.3 to mount the switch. Insert the top of the DIN-Rail on to the track. Lightly pull down the bracket on to the rail. Check if the bracket is mounted tightly on the rail.
-
Page 15: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install ET2-0800-M12-67 series. Installation Steps Step 1. Unpack the industrial Ethernet switch from the original packing box. Step 2. To hang the industrial Ethernet switch on a wall or DIN-Rail, please refer to the Mounting Installation section. - Page 16 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 17: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ If the industrial Switch LED indicators are normal and the connected cables are correct but the packets ●...
