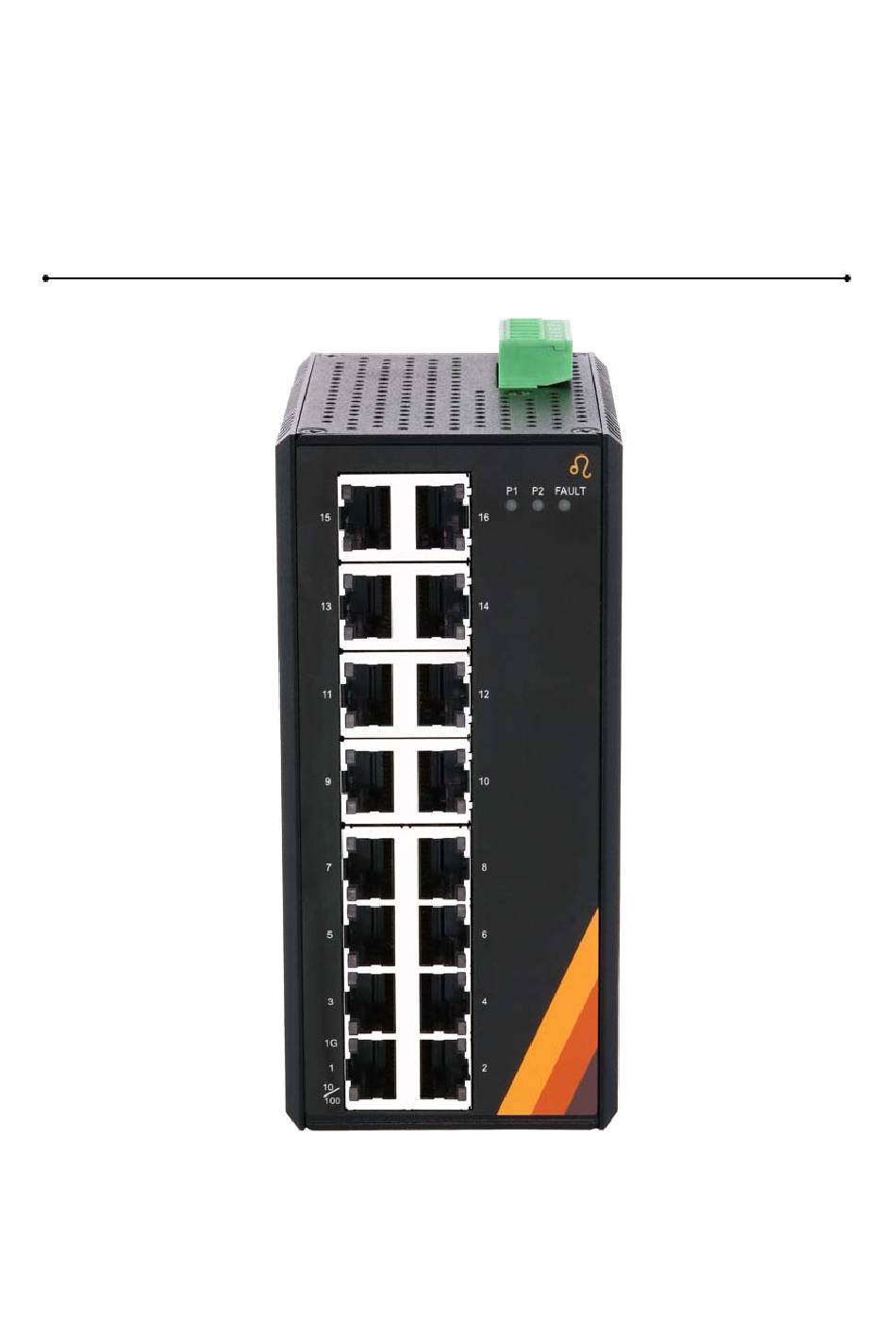

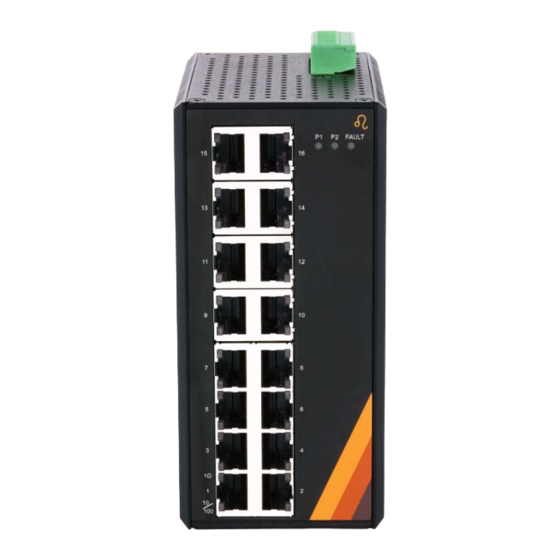

- Page 1 Leonton EG2-1600 Series (EG2-1600 / EG2-1600-T) User Manual Version 1.0...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ..........................1 Key Features ........................1 Package Contents ......................2 Safety Precaution ......................2 Hardware Description ......................3 Physical Dimensions ......................3 Front Panel ........................4 Top View ..........................4 LED Indicators ........................5 Ethernet Ports ........................6 Wiring the Power Inputs..................... -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged Ethernet switch series has 16*10/100/1000Tx Gigabit Ethernet ports. It’s suitable for applications that require high bandwidth and long distance communication. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection. -
Page 6: Package Contents
Package Contents 1 - EG2-1600(-T) • 2 - Wall mounting brackets and screws • Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of EG2-1600 series. (W x H x D) is 67mm x 142mm x 99mm Figure 2.1: EG2-1600 Series Physical Dimensions... -
Page 8: Front Panel
Figure 2.2: The Front Panel of EG2-1600 Series Top View Figure 2.3, below, shows the top panel of the EG2-1600 series switch that is equipped with one 6- pin removal terminal block connector for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View of EG2-1600 Series... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Power input 1 is active... -
Page 10: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 11: Wiring The Power Inputs
Wiring the Power Inputs Please follow the below steps to insert the power wire. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) Step 1. contacts on the terminal block connector as shown below in Figure 2.14. Figure 2.14: Power Terminal Block Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Step 2. -
Page 12: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.16. Figure 2.16: Grounding screw Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows... -
Page 13: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 14 Figure 3.2: Insert the Switch on the DIN-Rail Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Step 4. Figure 3.3: Stable the Switch on DIN-Rail Check if the bracket is mounted tightly on the rail. Step 5.
-
Page 15: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 1. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. Step 2. - Page 16 Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 17: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install PG2-1600 series. Installation Steps Unpack the industrial Ethernet switch from the original packing box. Step 1. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. Step 2. If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-Rail •... -
Page 18: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 19: Trouble Shooting
● have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved. If the industrial switch LED indicators are normal and the connected cables are correct but the ●...
