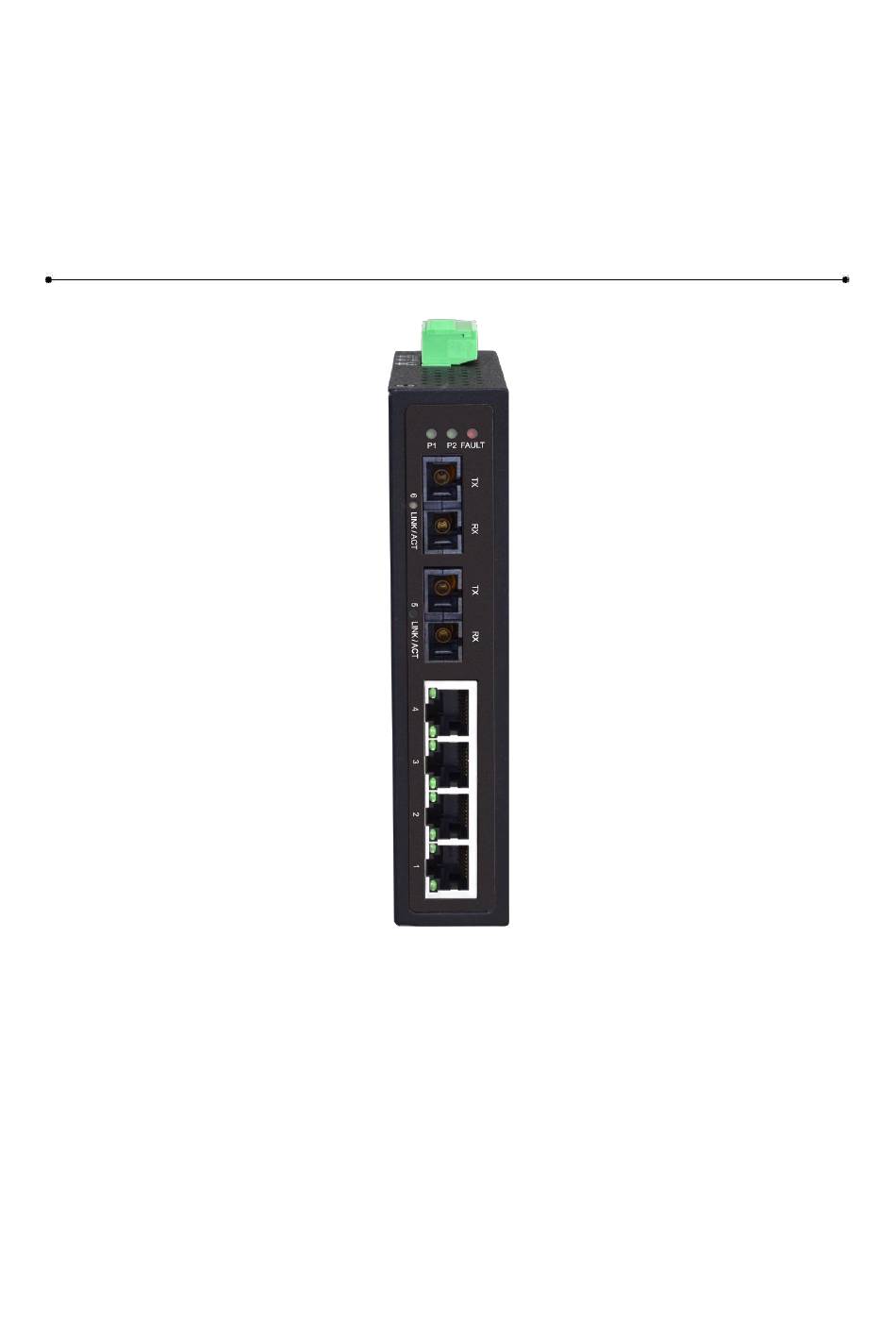

- Page 1 Leonton ET2-0602-M Series (ET2-0602-M / ET2-0602-M-T) User Manual Version 1.0...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Key Features ......................1 Package Contents ..................... 2 Safety Precaution ..................... 2 Hardware Description ....................3 Physical Dimensions ....................3 Front Panel ....................... 4 Top View ........................4 LED Indicators ......................5 Cabling ........................6 Wiring the Power Inputs ..................6 Wiring the Fault Alarm Contact ................ -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged Ethernet switch series has 4*10/100Tx Fast Ethernet ports and 2*100Fx of SC or ST type connector and support Multi-mode or Single-mode, which the RJ-45 interface provides auto detection of MDI or MDI-X. -
Page 6: Package Contents
Package Contents 1 - ET2-0602-M(-T) 2 - Wall mounting brackets and screws Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of ET2-0602-M series. (W x H x D) is 30mm x 142mm x 99mm Figure 2.1: ET2-0602-M Series Physical Dimensions... -
Page 8: Front Panel

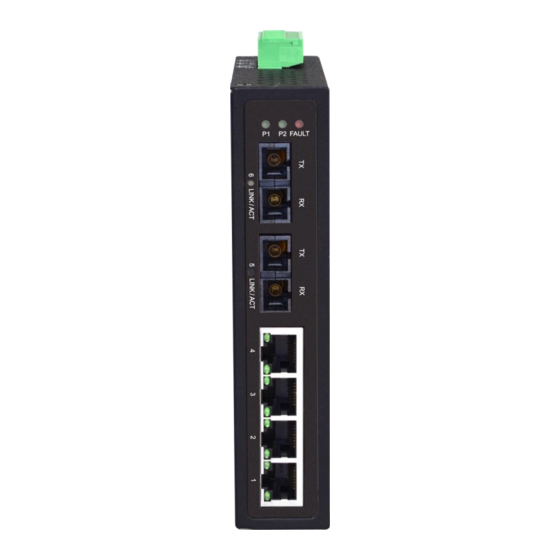

Figure 2.2: The Front Panel of ET2-0602-M Series Top View Figure 2.3, below, shows the top panel of the ET2-0602-M series switches that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View of ET2-0602-M Series... -
Page 9: Led Indicators
Not connected to network LAN Port LINK/ACT/SPEED Green Connected to network, 10Mbps Flashing Networking is active Not connected to network Connected to network, 100Mbps Fiber Port Green Flashing Networking is active LINK/ACT Not connected to network Table 2.1: LED Indictors for ET2-0602-M Series... -
Page 10: Cabling
Fiber Port The fiber port of SC type connector can work in multi-mode or single-mode. When connecting the fiber port to another one, please follow the figure below to connect accordingly. Wrong connection will cause the port works abnormally. Figure 2. 1: SC Connector Caution This is a Class 1 Laser/LED product. - Page 11 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Step 2. Figure 2.10. Figure 2.10: Power Terminal Block Note: Only use copper conductors, 60/75°C, tighten to 5 lbs. The wire gauge for the terminal block should range between 18~20 AWG.
-
Page 12: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.11. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.11. -
Page 13: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 14 Figure 3.2: Insert the Switch on the DIN-Rail Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Step 4. Figure 3.3: Stable the Switch on DIN-Rail Check if the bracket is mounted tightly on the rail. Step 5.
-
Page 15: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 1. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. Step 2. -
Page 16: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install ET2-0602-M series: Installation Steps Unpack the industrial Ethernet switch from the original packing box. Step 1. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. Step 2. -
Page 17: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. ◆ Please contact Leonton for technical support service, if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’...
