Leonton ET2-0800-M12-67 Quick Installation Manual

Quick Installation Guide
ET2-0800-M12-67 / ET2-0800-M12-T67
8-Port M12 Industrial IP67 Waterproof Fast Ethernet Switch
Version 1.0

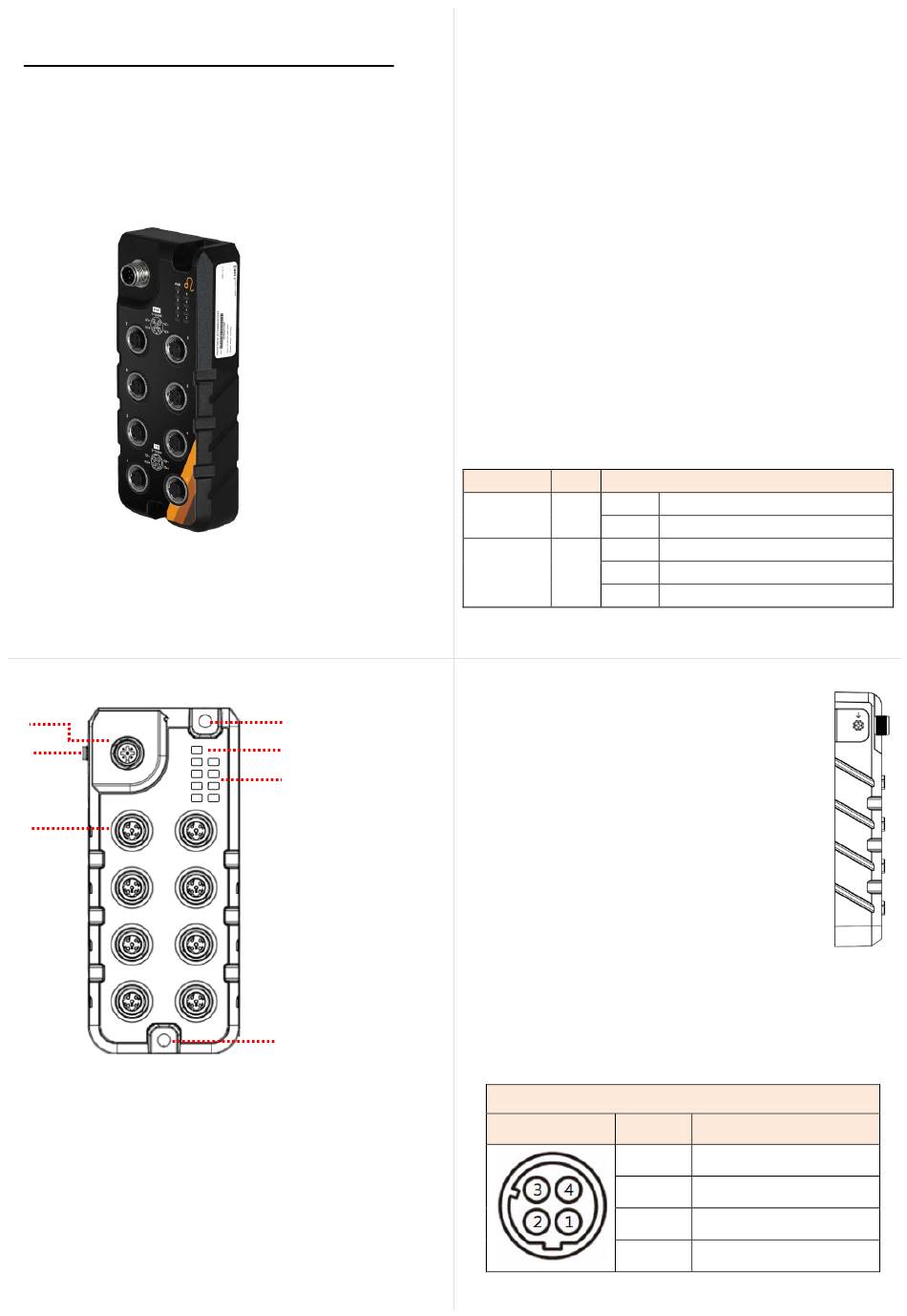

Front Panel Layout
1
2
3
1. Power Inputs Port
(M12 5-Pin A-Coded Male Connector)
2. Grounding Screw
3. 10/100BASE-TX Ethernet Port
(M12 4-Pin D-Coded Female Connector)
4. Screw Holes for Wall Mounting
5. Power LED
6. 10/100Mbps Link/Act LED
4
5
6
4
- 2 -
Ambient Temperature
Operating temperature range depends on the purchased
model.
• ET2-0800-M12-67 supports -10
• ET2-0800-M12-T67 supports extended operating
temperature from -40
℃
Package Contents
• 1 x ET2-0800-M12-(T)67
• 1 x Quick Installation Guide
• 1 x DIN Rail Kit with Screws
• 8 x M12 Protective Caps
• 1 x M12 Protective Caps for Power Input
If any item listed above is missing or damaged, please keep the
packed items and contact your service representative for
assistance.
LED Indicators
LED Color
On
PWR Green
Off
On
Ethernet Port
(1 to 8) Green Flashing
LINK/ACT
Off
Grounding
Grounding and wire routing help limit the effects of
noise due to electromagnetic interference (EMI).
Run the ground connection from the ground
screw to the grounding surface prior to connecting
devices.
Ethernet Ports
M12 Interface (Auto MDI/MDIX)
• Connection format: M12 4-Pin D-Coded female connector
• Transmission rate: 10 Mbit/s or 100 Mbit/s
• Pin assignment of M12 Ethernet connector:
M12 4-Pin D-Coded Female Connector
Illustration Pinouts
to 65
℃ ℃
to 75
℃
Description
Power input 1 or 2 is active
Power input 1 and 2 both are inactive
Connected to network at 10/100 Mbps
Networking is active at 10/100 Mbps
Not connected to network
- 1 -
10/100BASE-TX Signal
1 Transmit Data + (TX+)
2 Receive Data + (RX+)
3 Transmit Data - (TX-)
4 Receive Data - (RX-)
