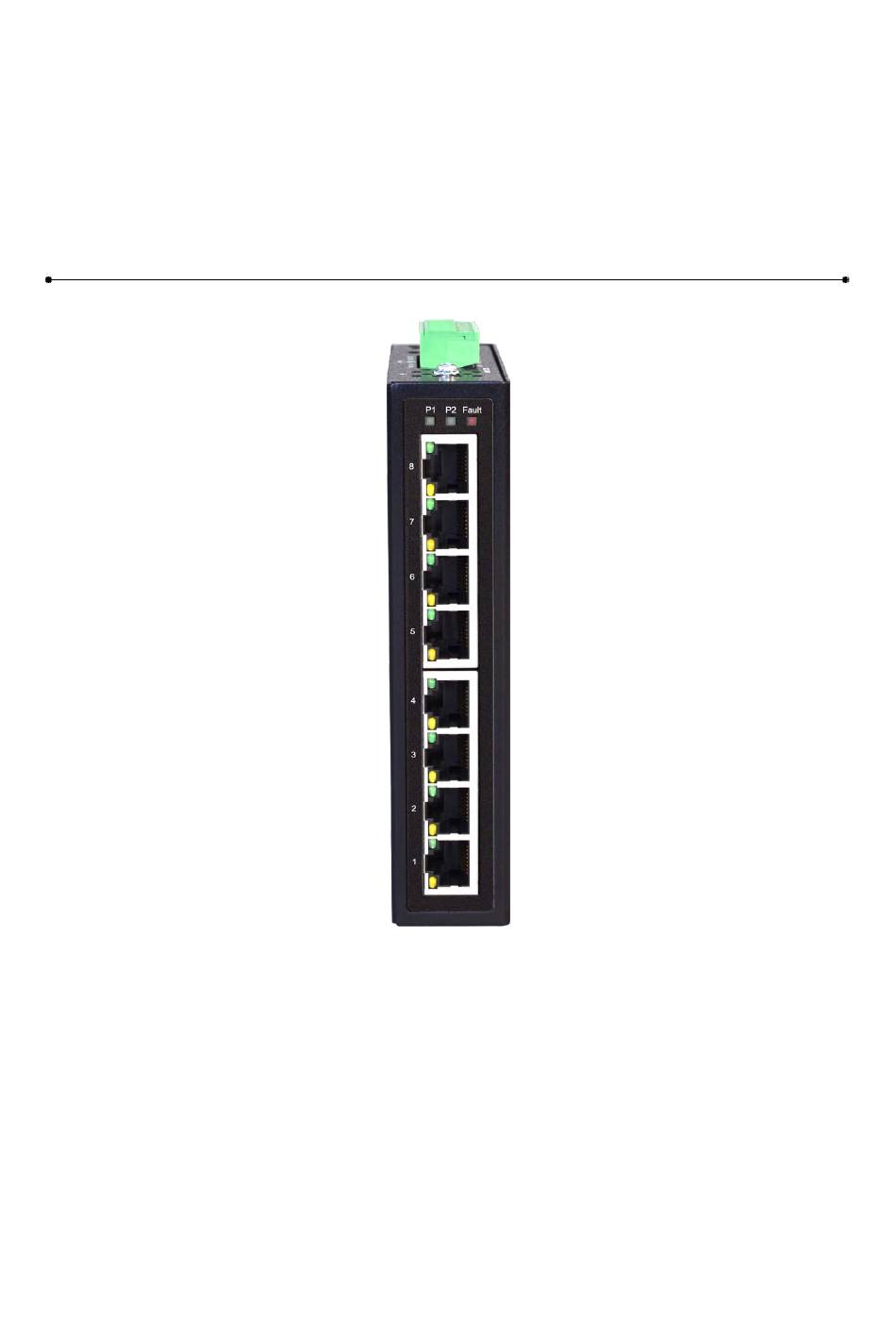

- Page 1 Leonton ET2-0800 Series (ET2-0800 / ET2-0800-T) User Manual Version 1.0...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ............................... 1 Key Features ............................1 Package Contents ..........................2 Safety Precaution ..........................2 Hardware Description ........................... 3 Physical Dimensions .......................... 3 Front Panel ............................4 Top View ............................4 LED Indicators ............................ 5 Ethernet Ports ............................ 6 Cabling ............................... -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial unmanaged Ethernet switch series has 8*10/100Tx Fast Ethernet ports, which the RJ-45 interface provides auto detection of MDI or MDI-X. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection. -
Page 6: Package Contents
Package Contents 1 - ET2-0800(-T) • 2 - Wall mounting brackets and screws • Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of ET2-0800 series. (W x H x D) is 30mm x 140mm x 95mm Figure 2.1: ET2-0800 Series Physical Dimensions... -
Page 8: Front Panel

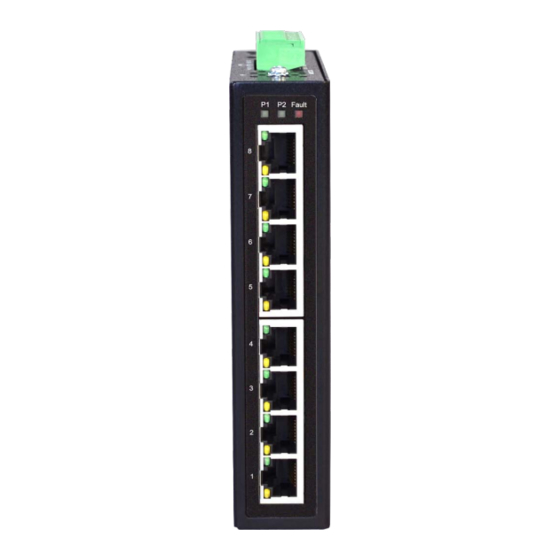

Figure 2.2: The Front Panel of ET2-0800 Series Top View Figure 2.3, below, shows the top panel of the ET2-0800 series switches that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View of ET2-0800 Series... -
Page 9: Led Indicators
Collision of packets occurs Ethernet port half duplex or not connect to network Table 2.1: LED Indictors for ET2-0800 Series Caution: "P1" is the abbreviation for "Power 1", "P2" is the abbreviation for "Power 2", and "ACT" is for "Activity". -
Page 10: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 11: Cabling
Cabling Use the two/four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. -
Page 12: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.11. Figure 2.11: Grounding screw Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 13: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 14 Figure 3.2: Insert the Switch on the DIN-Rail Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Step 4. Figure 3.3: Stable the Switch on DIN-Rail Check if the bracket is mounted tightly on the rail. Step 5.
-
Page 15: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 1. -
Page 16: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install ET2-0800 series: Caution: 1. This device is intended for use indoor and at altitudes up to 2000 meters. 2. This device is intended to be installed in an industrial control enclosure and panel. -
Page 17: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 18: Trouble Shooting
● have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved. If the industrial switch LED indicators are normal and the connected cables are correct but the ●...
