SECTION 1

Description and Main features

1.1 INTRODUCTION

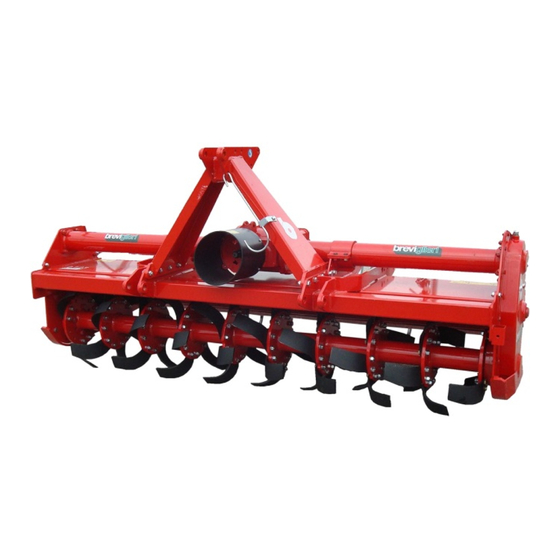

This manual contains all the information and indications considered necessary to know, correctly use and normally service "
rotary tiller (also called machine in the text) manufactured by BREVIGLIERI SpA of Nogara (VR) Italy, also called Manufacturer
in the text. The information and indications do not give a full description of the various components or a detailed illustration of
how they operate. However, the user will fi nd everything he normally requires in order to safely use the machine and keep it in
a serviceable condition. Failure to comply with the indications given in this manual, negligence during work, incorrect use of the
machine and unauthorized modifi cations to the same may void the warranty supplied by the Manufacturer.
The Manufacturer therefore declines all and every liability for damage due to negligence and failure to comply with the
instructions in this manual.
If repairs or overhauls of a complex nature are required, contact an authorized assistance center with specialized personnel or the
actual Manufacturer who is at your complete disposal for prompt and accurate technical assistance and anything else that can
ensure you get the best and most effi cient performance from the machine.
This manual must be kept in a safe place, ready to hand for consultation throughout the entire life of the machine. Reference will
solely be made to the Italian version of the instructions in the event of disputes.
Some of the illustrations in the manual may not exactly depict the machine in your possession: they are included for the sole
purpose of explaining the operations that must be carried out.

1.2 WARRANTY

The Manufacturer guarantees brand new products for a period of 12 (twelve) months from the date of delivery. When the machine
is delivered, make sure that both it and the accessories are complete and in a perfect condition. Complaints should be presented
in writing within 8 (eight) days from receipt of the machine. The warranty merely covers the repair or replacement, free of charge,
of those parts which, after thorough examination by the Manufacturer, are recognized as being defective (with the exclusion of
tines). Expenses concerning replacement of lubricants, transport costs, customs duties and VAT remain at the purchaser's charge
in any case. Replacement or repair of parts under guarantee shall in no case extend the warranty terms.
The Manufacturer will not accept returned goods without prior written authorization.
The purchaser shall only be able to exercise his rights in relation to the warranty when he has complied with the conditions gover-
ning warranty performance, as indicated in the supply contract.
