Össur bionic RHEOLOGIC Technical Manual page 6

1. Once RHEOLOGIC

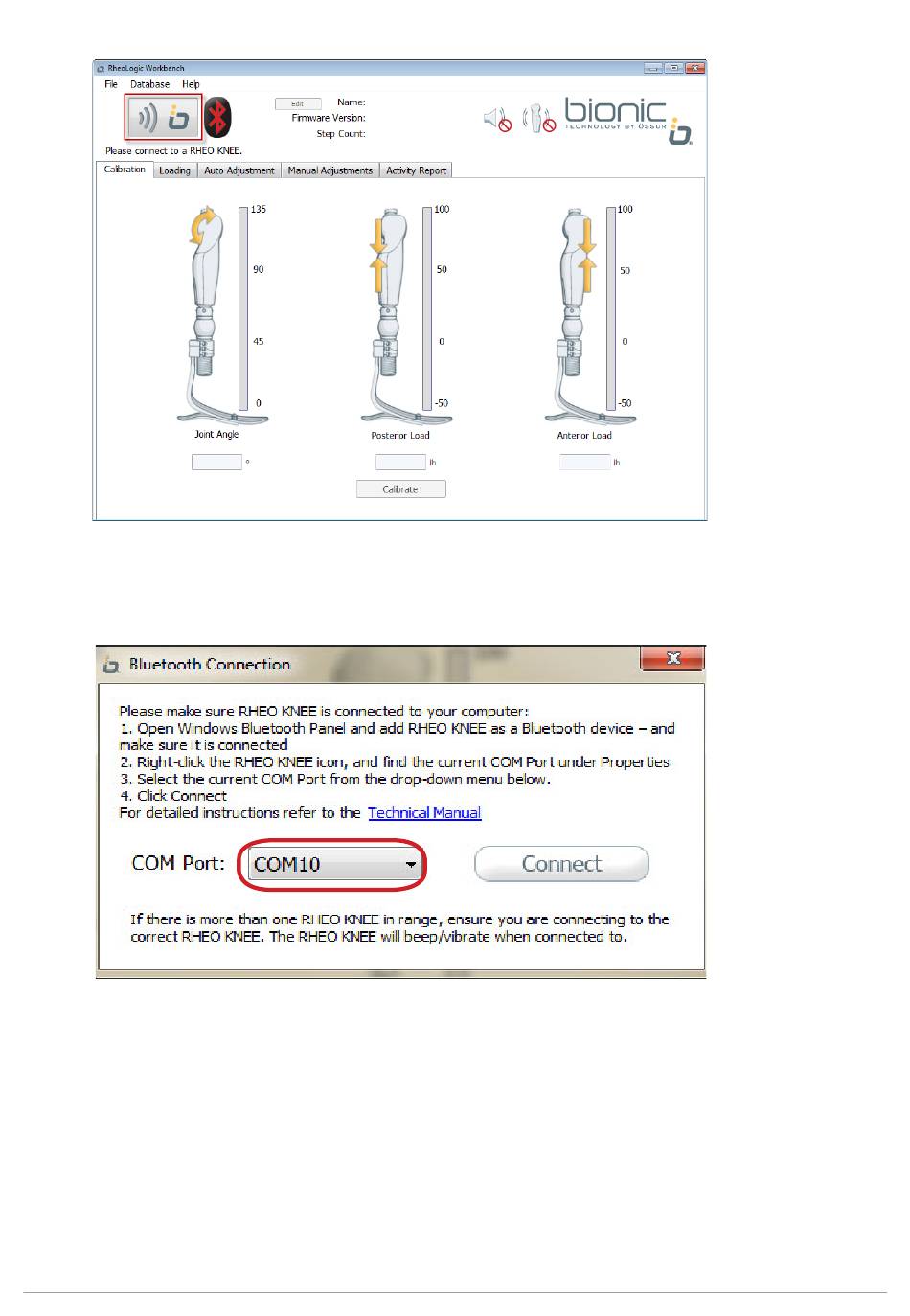

Figure 2
2. Select the COM port of your RHEO KNEE
Figure 3
NoTe: To find the COM port assigned to your RHEO KNEE, open Bluetooth Devices, and identify your RHEO
KNEE. Select "Properties" and look for the COM port number, e.g. COM port 9. If a distinction is made
between outgoing and incoming ports, note the incoming port. If you have problems connecting, refer to the
troubleshooting guide in section 5.
3. RHEO KNEE is successfully connected when the Bluetooth indicator is blue and white and the status
box changes from "Disconnected" to "Connected".
Workbench has been started, click the „Connect" button (Figure 2).
TM
®
from the list of COM ports and click „Connect" (Figure 3).
5
