Instructions for:

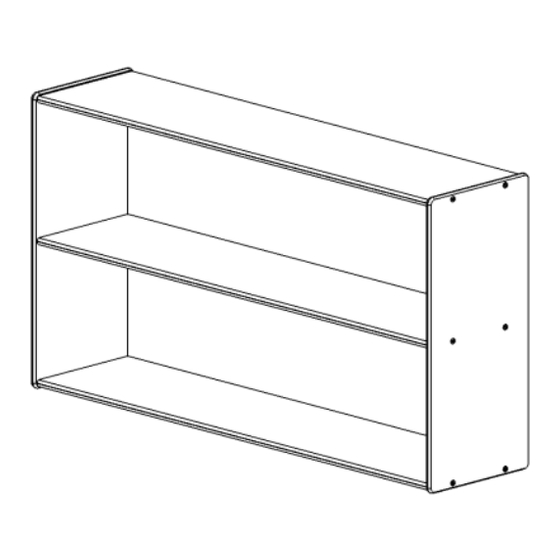

13797910 Storage, Low Single
Hardware Package HCKD
Qty.
Description
(1) XAUS 4mm Hex Wrench
(12) XAUR 2" Decorative Screw
(3) XCPT
#8 X 0-7/8" Washerhead Screw
Parts:
DHCKD – Rev. D – 16 May 2022
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points.
Adult assembly required.
Tools Required:
-4mm Hex Wrench, (Provided)
-Medium Phillips Screwdriver
Page 1 of 3
Hardware Illustrations
Not Actual Size
Advertisement
Related Manuals for Jonti-Craft young time 13797910
Summary of Contents for Jonti-Craft young time 13797910
- Page 1 WARNING: CHOKING HAZARD/SHARP POINTS- Assembly hardware contains small parts and components with sharp points. Adult assembly required. Tools Required: -4mm Hex Wrench, (Provided) -Medium Phillips Screwdriver Instructions for: Hardware Illustrations 13797910 Storage, Low Single Hardware Package HCKD Qty. Description (1) XAUS 4mm Hex Wrench (12) XAUR 2"...
- Page 2 Assembly Instructions: 1. Install Top- , Shelf- , and Bottom- to Side- by aligning dowels. Ensure back grooves all align. XAUR Secure with 6- Decorative Screws with 4mm Hex Wrench provided. 2. Slide both Backs- into Top, Bottom, and Side grooves. XAUR 3.
- Page 3 4. Locate predrilled holes in middle shelf and install 3- Washer Head Screws using a Phillips Screwdriver. 5. Stand unit upright. Find Jonti-Craft Storage Shelves @demco.com, search 13797910 Call 800.962.4463 or email custserv@demco.com DHCKD – Rev. D – 16 May 2022 This product is covered by our Product Limited Warranty, available at www.jonti-craft.com/warranty...
