Instructions for:

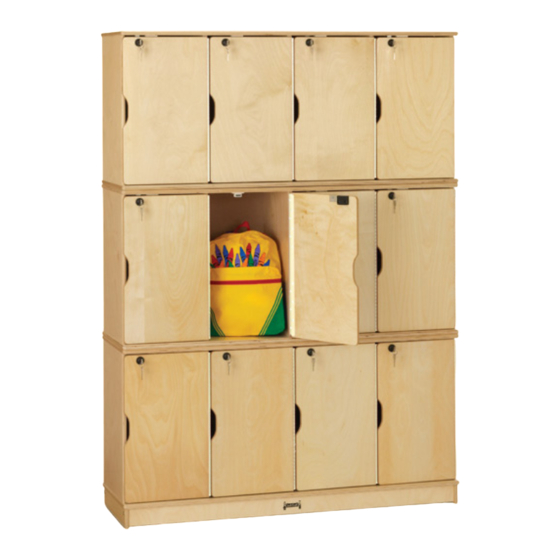

4697JC3 4-Section Stackable Locking Lockers-Top
Hardware Package HBWA
Qty
Description
(3) XAFH 3" Drywall Screw
(4) XCND Lock Core with Key
(4) XADO 1/4" X 1-1/4" Trusshead Bolt

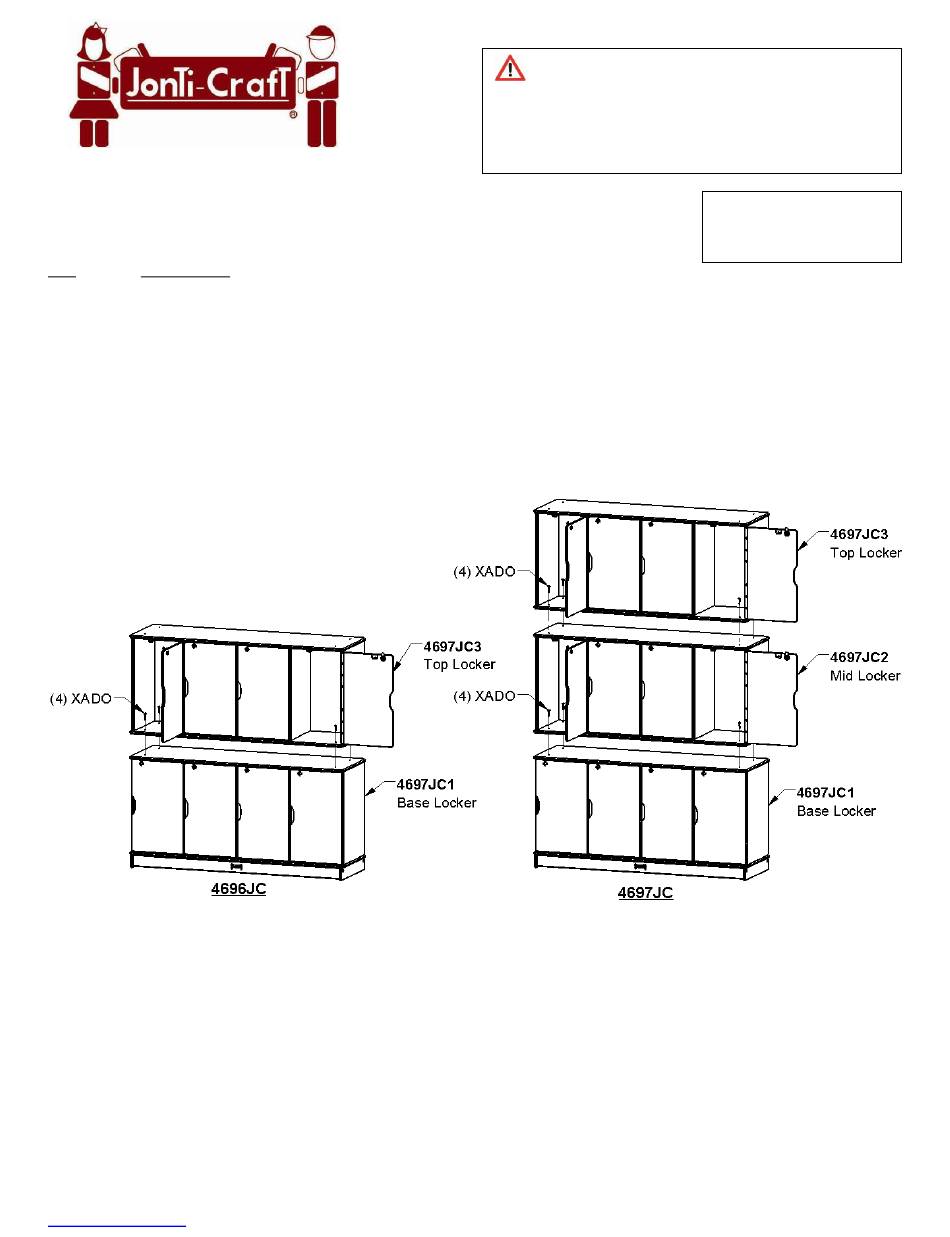

Assembly Instructions:
1. Wall mount bracket is required on stacking three units high and is only required on top unit in stack.
2. Stack Lockers beginning with Base Locker (4697JC1). Stack Mid Locker (4697JC2) and bolt together
with ¼" x 1 ¼" bolts through bottom of unit into top of lower unit. Repeat for Top Locker (4697JC3).
DHBWA – Rev. F – 13 November 2019
800-543-4149
507-342-5169
www.jonti-craft.com
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points.
Adult assembly required.
Page 1 of 2
Required Tools:
-Standard and Phillips
Screwdriver
Jonti-Craft, Inc.
171 Hwy 68
P.O. Box 30
Wabasso, MN 56293
Advertisement
Table of Contents
Related Manuals for Jonti-Craft 4697JC3
Summary of Contents for Jonti-Craft 4697JC3
- Page 1 2. Stack Lockers beginning with Base Locker (4697JC1). Stack Mid Locker (4697JC2) and bolt together with ¼” x 1 ¼” bolts through bottom of unit into top of lower unit. Repeat for Top Locker (4697JC3). DHBWA – Rev. F – 13 November 2019 Jonti-Craft, Inc.
- Page 2 3. Locate wall studs and attach Wall-Mount Bracket (Supplied with Top Locker 4697JC3) to the wall studs using three 3” drywall screws. 4. Place unit over wall-mounted bracket and units are ready to be used. 5. Insert the lock core into the barrel of the dead bolt lock by aligning the tumbler tabs of the lock core with either of the slots found in the dead bolt lock.
