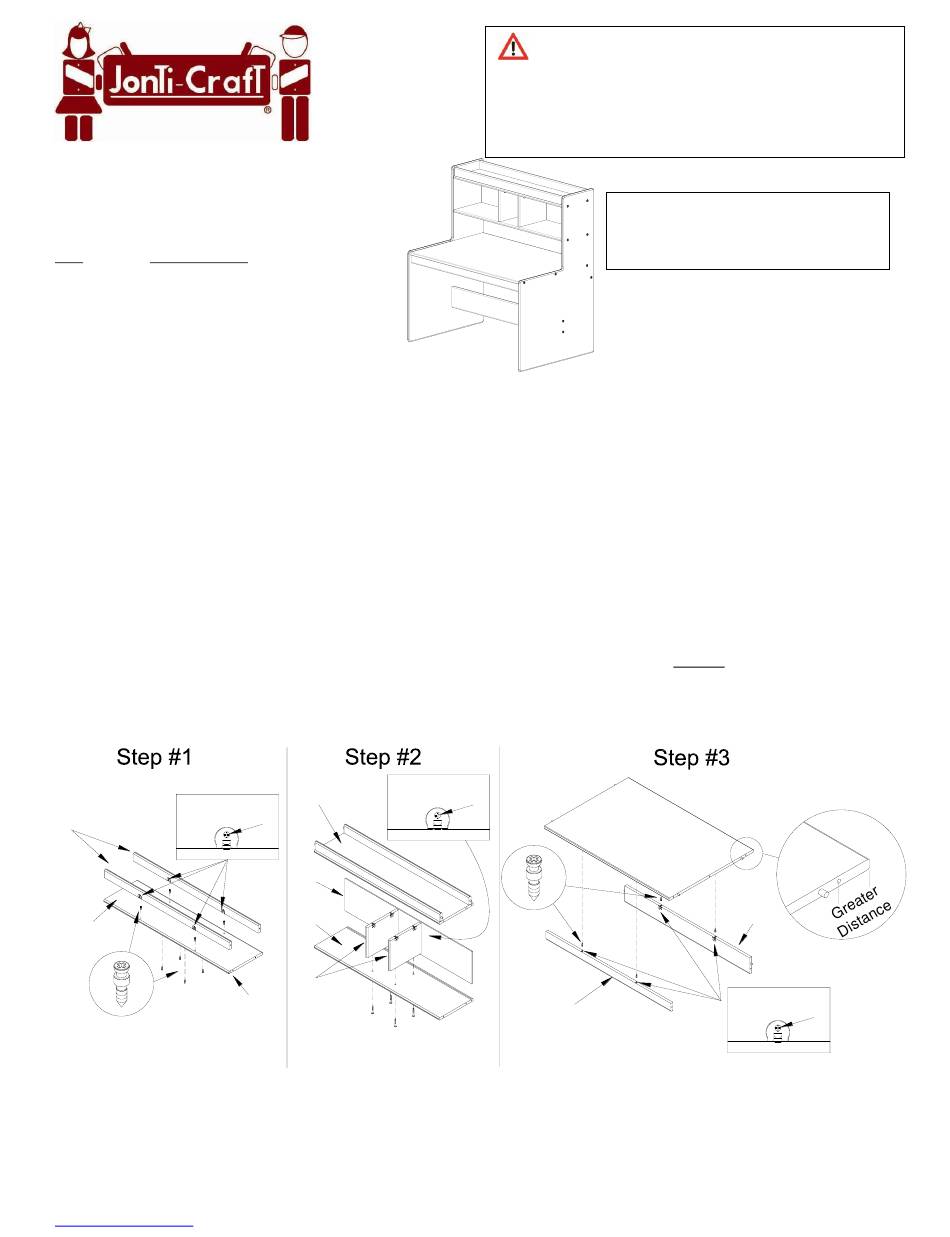

Jonti-Craft HBWN Instructions

Instructions for:
Writing Table

Hardware Package HBWN

Qty Descriptions
(24) XAUR 2" Decorative Screw
(1) XAUS 4mm Hex Wrench
(12) XAMT Cam-lock Bolt

Assembly Instructions:

1. Insert cam-lock bolts into each of the holes found in both the top and bottom surfaces of the top A
for a total of eight cam-lock bolts. Tighten the cam-lock bolts using a medium Phillips screwdriver.
Once the cam-lock bolts are installed attach the rails B to the top surface of top A by placing the
cam-locks in rails B over the heads of the cam-locks bolts found in top A. Lock the cam-locks by
turning the metal center of the cam-locks clockwise using a medium Phillips screwdriver.
2. Insert the cam-lock bolts in the underside of top A into each of the cam-locks found in the ends of
dividers C. Lock the cam-locks by turning the metal center of the cam-locks clockwise using a
medium Phillips screwdriver. Next insert through bottom D and into each of the dividers C two 2"
decorative screws and tighten using the provided 4mm hex wrench, NOTE: make sure the slot in
bottom D is directly below and facing the slot in top A. Next slide back E into the slots found at the
rear of bottom D and top A.
3. Insert cam-lock bolts into each of the holes found in the bottom surface of the desktop F. Tighten
the cam-lock bolts using a medium Phillips screwdriver.
Once the cam-lock bolts are installed attach the rail B and G to desktop F by placing the cam-locks
in rails B and G over the heads of the cam-locks bolts found in desktop F. NOTE: position rails so rail
B is toward the front of the top and rail G is at the back. The rear of desktop F is determined by the
distance between the edge and nearest hole. The rear edge has the greatest distance between the
edge and first hole. Lock the cam-locks by turning the metal center of the cam-locks clockwise using
a medium Phillips screwdriver.
Turn metal center
clockwise to lock
B
counterclockwise to unlock
Cam-Lock
A
Back Edge
Postion rails so cam-locks in
both rails face the back edge
with groove.
DHBWN – Rev. G – 21 October 2019
800-543-4149
507-342-5169
www.jonti-craft.com
Turn metal center
A,B,B
clockwise to lock
counterclockwise to unlock
Cam-Lock
E
D
C
2" Decorative
Screws
Page 1 of 2
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points.
Adult assembly required.

Tools Required:

-Medium Phillips Screwdriver
-4mm Hex Wrench (Provided)
F
B
Postion rails so cam-locks in both rails B
& G face the middle of desktop F.
Postion rail G at rear
of desktop F.
Rear
G
Turn metal center
clockwise to lock
counterclockwise to unlock
Cam-Lock
Jonti-Craft, Inc.
171 Hwy 68
P.O. Box 30
Wabasso, MN 56293
