Jonti-Craft 2427JC Instructions

Instructions for:
2427JC & 2437JC

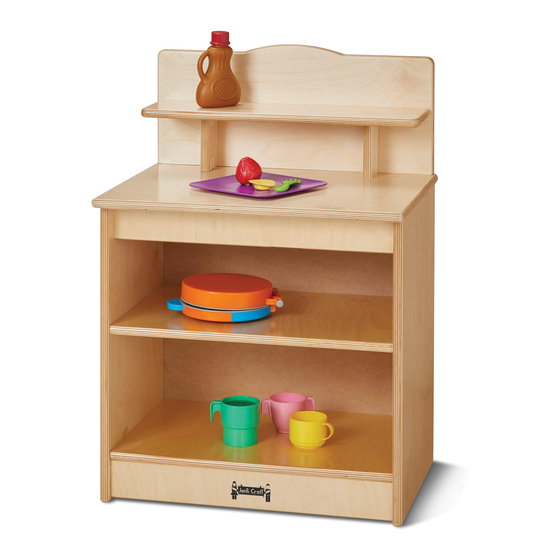

Kitchen Cupboard

Hardware Package HBJI

Qty. Description
(4) XAMT Cam Lock Bolt
(4) XBHD 1-9/16" Decorative Screw
(1) XAUS 4mm Hex Wrench
(1) XCOR Anti-tip Restraint Kit
(1) XFIG #8 Flat Washer

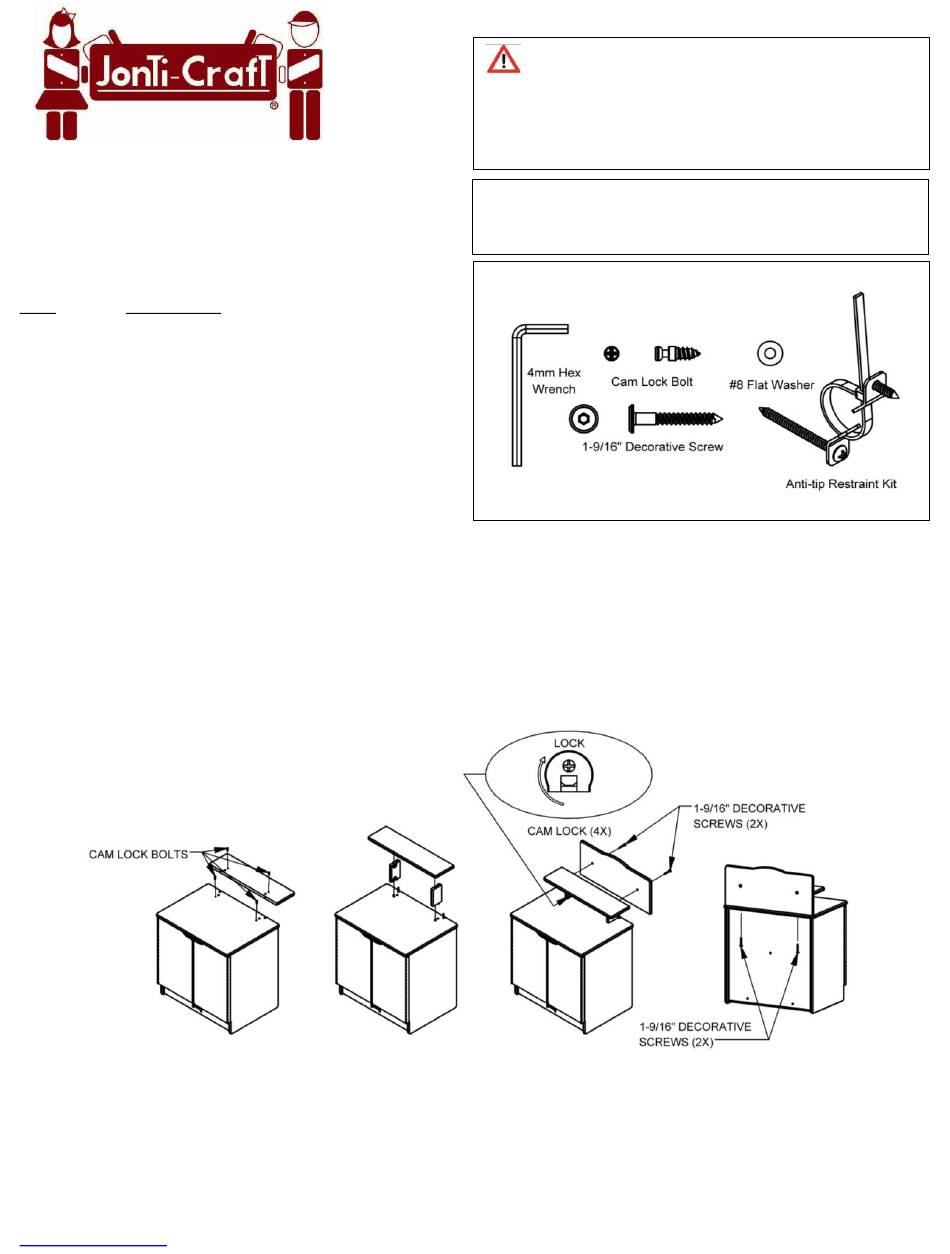

Assembly Instructions:

(Picture may vary from actual unit.)
1. Install the four cam lock bolts in the top of
the base unit and the bottom surface of the
top shelf using a medium Phillips screwdriver.
2. Align the dowels in the ends of the upper shelf supports with the holes in the top of the base unit
and the upper shelf and tap them together (Use a soft-faced mallet if needed).
3. Lock the four cam locks securing the upper shelf supports to the top and upper shelf using a
medium Phillips screwdriver to turn the metal part of each of the cam locks clockwise.
4. Secure the upper back to the upper shelf using two 1-9/16" decorative screws and the 4mm hex
wrench provided.
5. Finish securing the upper back to the top of the base unit using two 1-9/16" decorative screws and
the 4mm hex wrench.
6. Fasten the unit to the wall using the anti-tip restraint kit included along with the #8 flat washer.
a. Place the unit in the desired location.
b. Locate a wall stud near the center of the unit and mark the location on the unit near the
top.
DHBJI – Rev. B – 15 October 2019
800-543-4149
507-342-5169
www.jonti-craft.com
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points.
Adult assembly required.

Tools Required:

-Medium Phillips Screwdriver
-4mm Hex Wrench (Provided)
Hardware Illustrations
Page 1 of 2
Not Actual Size
JonTi-Craft, Inc.
171 Hwy 68
P.O. Box 30
Wabasso, MN 56293
