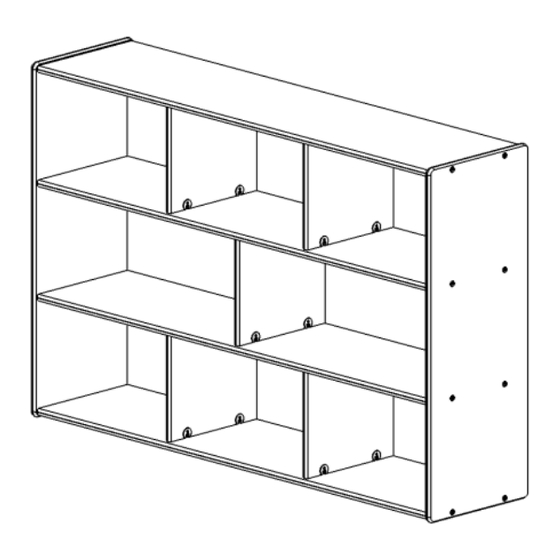

Jonti-Craft Young Time 13797900 Instructions

Storage, super-sized

Download this manual

Instructions for:

13797900 Storage, Super-Sized

Hardware Package HCJE

Qty.

Description

(1) XAUS 4mm Hex Wrench

(16) XAUR 2" Decorative Screw

(20) XAMT Camlock Bolt

(6) XCPT

#8 X 0-7/8" Washerhead Screw

Parts:

DHCJE – Rev. D – 16 May 2022

WARNING:

CHOKING HAZARD/SHARP POINTS- Assembly

hardware contains small parts and components

with sharp points.

Adult assembly required.

Tools Required:

-4mm Hex Wrench, (Provided)

-Medium Phillips Screwdriver

Page 1 of 4

Hardware Illustrations

Not Actual Size

Need help?

Do you have a question about the Young Time 13797900 and is the answer not in the manual?

Page 1 WARNING: CHOKING HAZARD/SHARP POINTS- Assembly hardware contains small parts and components with sharp points. Adult assembly required. Tools Required: -4mm Hex Wrench, (Provided) Instructions for: -Medium Phillips Screwdriver 13797900 Storage, Super-Sized Hardware Illustrations Hardware Package HCJE Qty. Description (1) XAUS 4mm Hex Wrench (16) XAUR 2"...
Page 2 Assembly Instructions: XAMT 1. Install 20- Camlock Bolts into 5mm surface holes in Bottom- , Top- , and 2 Shelves- using a Phillips Screwdriver. 2. Install Top- , 2 Shelves- , and Bottom- to LH Side- by aligning dowels. Ensure back grooves XAUR all align.
Page 3 3. Place 5 Dividers- by aligning Camlocks in Dividers with Camlock Bolts previously installed. Secure with a ¼ turn of the Camlocks with a Phillips Screwdriver. 4. Slide 3 Backs- into Top, Bottom, and Side grooves. XAUR 5. Align dowels with remaining Side- .
Page 4 6. Locate predrilled holes in middle shelves and install 6- Washer Head Screws using a Phillips Screwdriver. 7. Stand unit upright. Find Jonti-Craft Storage Shelves @demco.com, search 13797900 Call 800.962.4463 or email custserv@demco.com DHCJE – Rev. D – 16 May 2022 This product is covered by our Product Limited Warranty, available at www.jonti-craft.com/warranty...
