Instructions for:

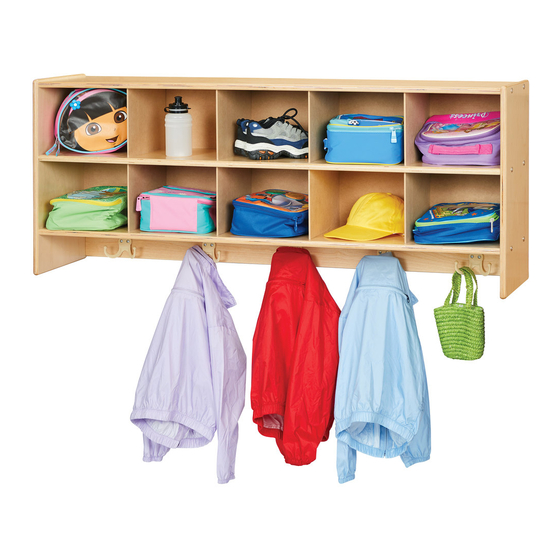

7104YT Coat Locker, Wall, 10-Section
Hardware Package HCJW
Qty.
Description
(1) XAUS 4mm Hex Wrench
(12) XAUR 2" Decorative Screw
(3) XCPT
#8 X 0-7/8" washerhead Screw
(10) XBTX
#6 X 0-5/8" Trusshead Screw
(3) XAFH #8 X 3" Drywall Screw
(2) XAEB
#6 X 1-1/4" Drywall Screw
(5) XCLX
Nylon Coat Hook
Parts:
DHCJW – Rev. B – 23 October 2019
800-543-4149
507-342-5169
www.jonti-craft.com
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points. Adult assembly required.
Attention: This unit must be attached to a wall to
prevent tipping over!!
Tools Required:
-4mm Hex Wrench, (Provided)
-Medium Phillips Screwdriver
Page 1 of 4
Hardware Illustrations
Not Actual Size
JonTi-Craft, Inc.
171 Hwy 68
P.O. Box 30
Wabasso, MN 56293
Advertisement
Related Manuals for Jonti-Craft Young time 7104YT
Summary of Contents for Jonti-Craft Young time 7104YT
- Page 1 (3) XAFH #8 X 3” Drywall Screw (2) XAEB #6 X 1-1/4” Drywall Screw (5) XCLX Nylon Coat Hook Not Actual Size Parts: JonTi-Craft, Inc. DHCJW – Rev. B – 23 October 2019 171 Hwy 68 800-543-4149 P.O. Box 30 507-342-5169 Wabasso, MN 56293 www.jonti-craft.com...
- Page 2 Ensure back groove is up and aligns with other grooves. XAUR Loosely install with 6- Decorative Screws with 4mm Hex Wrench provided. JonTi-Craft, Inc. DHCJW – Rev. B – 23 October 2019 171 Hwy 68 800-543-4149 P.O. Box 30...
- Page 3 Top, Bottom, and Side grooves. Note location and orientation of mitred edge of XAUR Hanging Bracket and hooks on Hook Rail. Tighten 6- Decorative Screws previously installed. JonTi-Craft, Inc. DHCJW – Rev. B – 23 October 2019 171 Hwy 68 800-543-4149 P.O.
- Page 4 This step will ensure that the unit will not lift off the wall mounted bracket. 9. If you experience any difficulties when assembling this product, please contact the Jonti-Craft Customer Relations Team at (800) 543-4149 or sales@jonti-craft.com. All other requests for assistance must be directed to your Jonti-Craft Dealer.
