Instructions for:

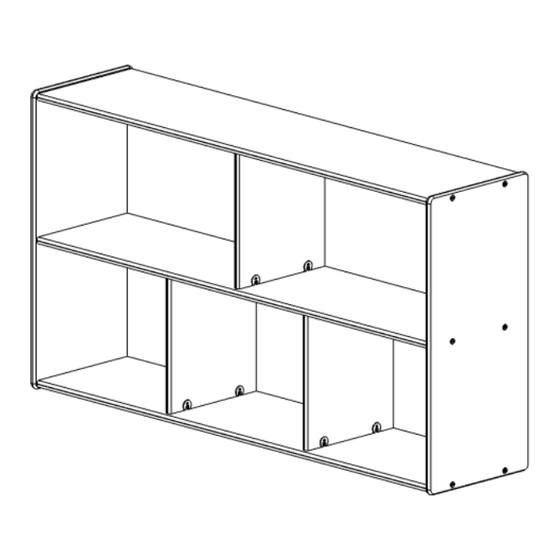

13797920 Storage, Low Single

Hardware Package HCJD

Qty.

Description

(1) XAUS 4mm Hex Wrench

(12) XAUR 2" Decorative Screw

(12) XAMT Camlock Bolt

(3) XCPT

#8 X 0-7/8" Washerhead Screw

Parts:

DHCJD – Rev. D – 16 May 2022

WARNING:

CHOKING HAZARD/SHARP POINTS- Assembly

hardware contains small parts and components

with sharp points.

Adult assembly required.

Tools Required:

-4mm Hex Wrench, (Provided)

-Medium Phillips Screwdriver

Page 1 of 4

Hardware Illustrations

Not Actual Size

Need help?

Do you have a question about the young time 13797920 and is the answer not in the manual?

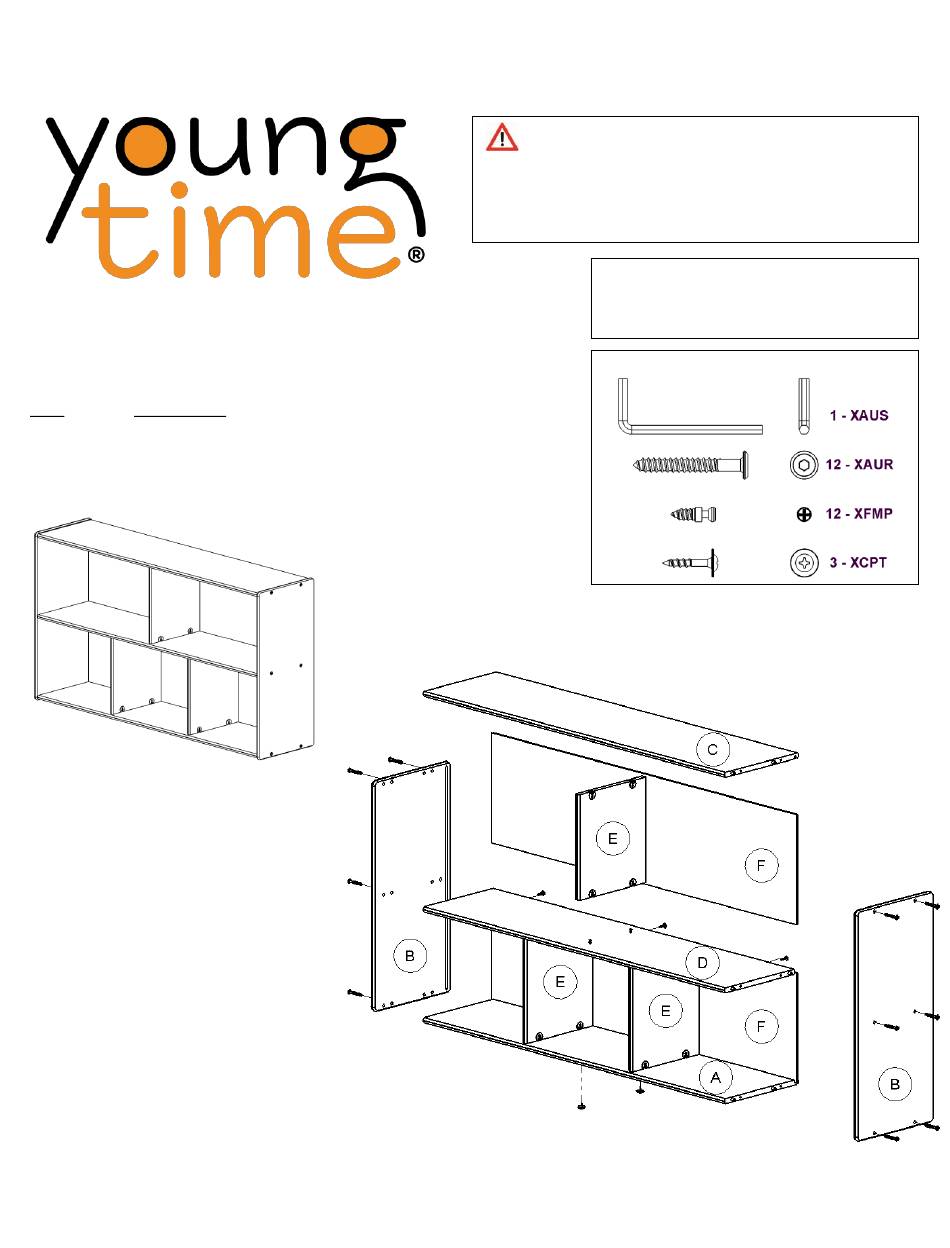

Page 1 WARNING: CHOKING HAZARD/SHARP POINTS- Assembly hardware contains small parts and components with sharp points. Adult assembly required. Tools Required: -4mm Hex Wrench, (Provided) Instructions for: -Medium Phillips Screwdriver 13797920 Storage, Low Single Hardware Illustrations Hardware Package HCJD Qty. Description (1) XAUS 4mm Hex Wrench (12) XAUR 2"...
Page 2 Assembly Instructions: XAMT 1. Install 12- Camlock Bolts into 5mm surface holes in Bottom- , Top- , and Shelf- using a Phillips Screwdriver. 2. Install Top- , Shelf- , and Bottom- to Side- by aligning dowels. Ensure back grooves all align. XAUR Secure with 6- Decorative Screws with 4mm Hex Wrench provided.
Page 3 3. Place 3 Dividers- by aligning Camlocks in Dividers with Camlock Bolts previously installed. Secure with a ¼ turn of the Camlocks with a Phillips Screwdriver. 4. Slide both Backs- into Top, Bottom, and Side grooves. XAUR 5. Align dowels with remaining RH Side- .
Page 4 6. Locate predrilled holes in middle shelf and install 3- Washer Head Screws using a Phillips Screwdriver. 7. Stand unit upright. Find Jonti-Craft Storage Shelves @demco.com, search 13797920 Call 800.962.4463 or email custserv@demco.com DHCJD – Rev. D – 16 May 2022 This product is covered by our Product Limited Warranty, available at www.jonti-craft.com/warranty...
