Table 2-2 Installing lightning protection devices outdoors
No. Description
1 Video lightning conductor.
2 Communication lightning conductor.
3 Power supply lighting conductor.
4 Impedance of the cable connected to the grounding wire should be less than 4 Ω.
5 The radius is 60 m.
6 Lightning conductor.
7 Steel tube.

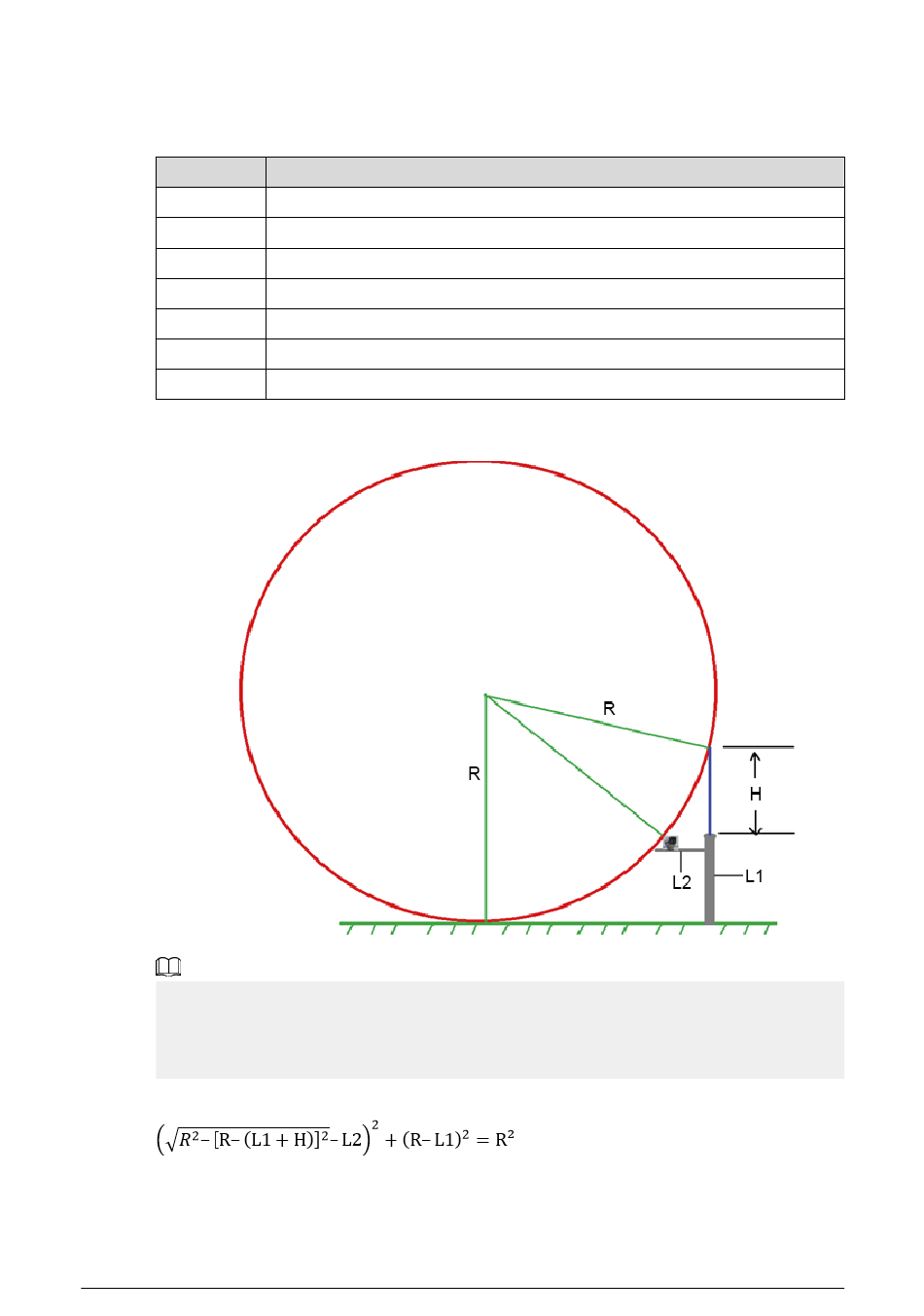

Figure 2-3 Installing lightning protection devices outdoors (2)
R: The radius of the circle, and R = 60 m.
●
L1: The length of the pole that holds the lightning conductor.
●
L2: The length of the rail that holds the Device.
●
H: The length of the lightning conductor.
●
To get the value of L1, you need to use the formula:
