Pliant MicroCom 900XR Operating Manual

Hide thumbs Also See for MicroCom 900XR:
Table of Contents

Advertisement

Quick Links

Download this manual

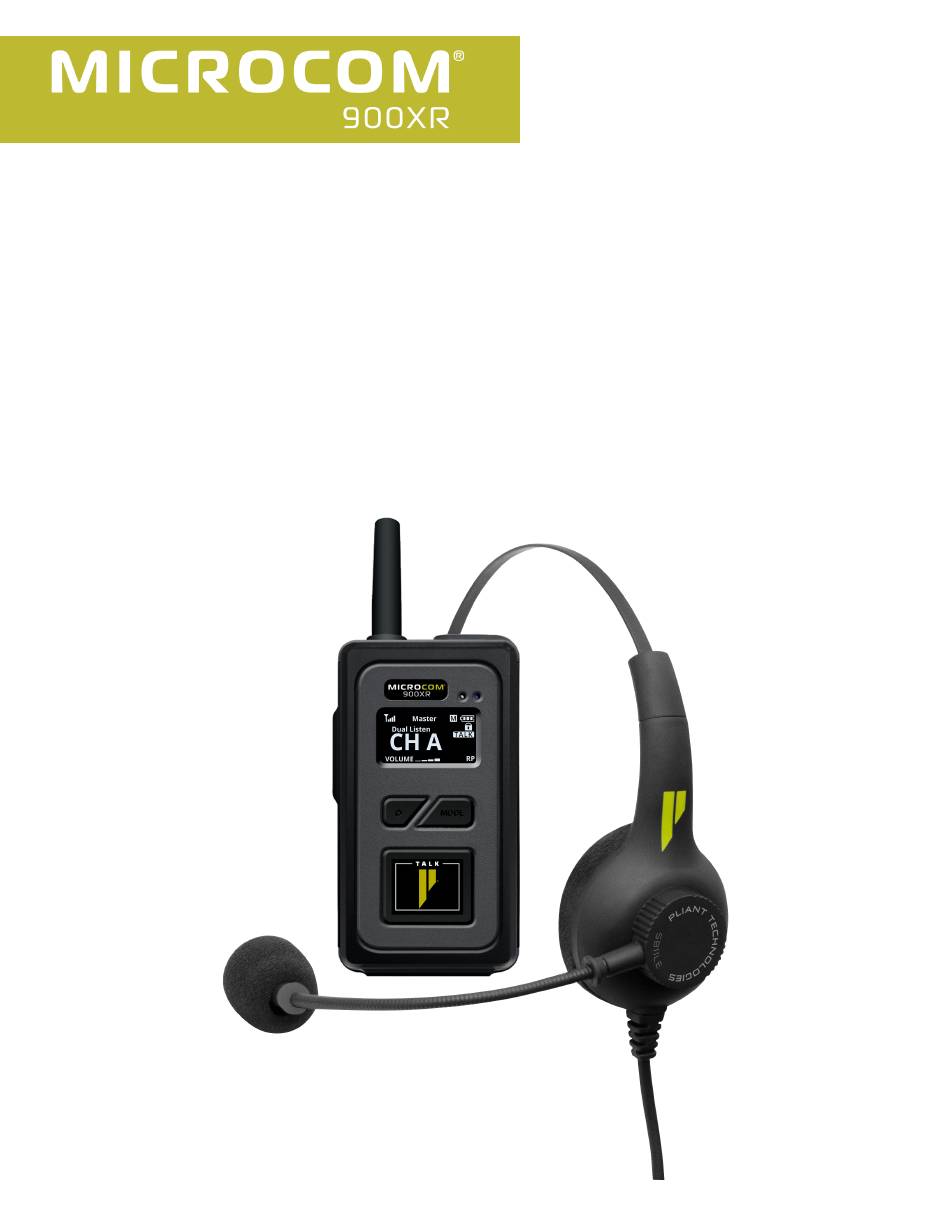

MicroCom 900XR
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroCom 900XR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pliant MicroCom 900XR

Summary of Contents for Pliant MicroCom 900XR

  • Page 1 MicroCom 900XR OPERATING MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents Introduction What's included with the MicroCom 900XR? Device Overview Setup Procedures Operation Menu Settings Device Specifications Product Care and Maintenance Product Support License Information Warranty Information Table of Contents - ii...

  • Page 3: Introduction

    In order to get the most out of your new MicroCom 900XR, please take a few moments to read this manual completely so that you better understand the operation of this product. For questions not...
  • Page 4 Product Features Robust, Two-Channel System Three Operating Modes for Challenging Environments Dual Listen Simple to Operate Up to 10 Full-Duplex Users Radio-to-Radio Communication Unlimited Listen-Only Users 900MHz Frequency Band Encrypted FHSS Technology Ultra Compact, Small, and Lightweight Rugged, IP67-Rated BeltPack Long, 12-hour Battery Life Field-Replaceable Battery Available Drop-In Charger...

  • Page 5: What's Included With The Microcom 900Xr

    BT-01-PT Replacement Li-Ion Battery PMC-REC-900 MicroCom XR Receiver Headsets and Adapter Accessories PHS-SB11LE-DMG SmartBoom® LITE Single Ear Pliant headset with Dual Mini connector for MicroCom PHS-SB110E-DMG SmartBoom PRO Single Ear Pliant headset with Dual Mini connector for MicroCom PHS-SB210E-DMG SmartBoom PRO Dual Ear Pliant headset with Dual Mini connector for...
  • Page 6 Part Number Description PAC-MC4W-IO Pliant 4-Wire In/Out Headset Adapter for MicroCom XR series CAB-4F-DMG Dual 3.5mm DMG to XLR-4F Cable What's included with the MicroCom 900XR? - 4...

  • Page 7: Device Overview

    DEVICE OVERVIEW Device Overview - 5...

  • Page 8: Setup Procedures

    SETUP PROCEDURES 1. Attach the beltpack antenna. It is reverse threaded; screw counter-clockwise. 2. Connect a headset to the beltpack. Press firmly until it clicks to make sure the headset connector is seated properly. 3. Power on. Press and hold the POWER button for two (2) seconds until the screen turns on. If operating the beltpack in Repeater Mode 4.
  • Page 9 If operating the beltpack in Roam Mode 4. Access the menu. Press and hold the MODE button for three (3) seconds until the screen changes to <SETTING MODE>. Short-press MODE to scroll through the settings, and then scroll through setting options using VOLUME +/−. Press and hold MODE to save your selections and exit the menu.
  • Page 10 Important: When in Roam Mode, the two-way radio Top Button menu options and the Dual Listen function will not be available. See Menu Settings for information about changing mode. If operating the beltpack in Standard Mode 4. Access the menu. Press and hold the MODE button for three (3) seconds until the screen changes to <SETTING MODE>.
  • Page 11 Battery The rechargeable lithium-ion battery is installed in the device at shipment. To recharge the battery, either 1) plug the USB charging cable into the device USB port or 2) connect the device to the drop-in charger (PBT-XRC-55, sold separately). The LED in the top right corner of the device will illuminate solid red while the battery is charging and will turn off once the battery is fully charged.

  • Page 12: Operation

    OPERATION LED Modes - LED is blue and double blinks when logged in and single blinks when logged out. LED is red when battery charging is in progress. LED turns off when charging is complete. Lock - To toggle between Lock and Unlock, press and hold the TALK and MODE buttons simultaneously for three (3) seconds.
  • Page 13 Each separate MicroCom system should use the same Group and Security Code for all beltpacks in that system. Pliant recommends that systems operating in proximity to one another set their Groups to be at least ten (10) values apart. For example, if one system is using Group 03, another system nearby should use Group 13.

  • Page 14: Menu Settings

    MENU SETTINGS The following table lists adjustable settings and options. To adjust these settings from the device menu, follow the instructions below: 1. To access the menu, press and hold the MODE button for three (3) seconds until the screen changes to <Setting Mode>.
  • Page 15 "Tech Menu - Mode Setting Change" on page 15 information about changing mode. **Device Top Button options for Two-Way Radio integration are not functional with the Pliant Audio I/O Headset Adapter. Off and Channel Switch are functional on the device. Top Button - Menu Setting Information The Device Top Button can be set to Channel Switch or Off.
  • Page 16 Channel Switch: When the device is set to “Channel Switch,” a press and hold of the top button on the device will allow the user to momentarily switch channels to talk and listen on the device's other channel. When the top button is released, the device returns to the channel it was previously on. Channel Switch and Trigger: Not available.
  • Page 17 Tech Menu - Mode Setting Change The mode can be changed between three settings for different functionality: Repeater Mode connects users working beyond line of sight from one another by locating the Master in a prominent central location. Note: Repeater Mode is the default setting. Roam Mode connects users working beyond line of sight and extends the range of the MicroCom system by strategically locating the Master and Submaster.
  • Page 18 Recommended Settings by Headset The following table provides recommended MicroCom settings for several common headset models. Recommended Setting Headset Model Mic Sensitivity Level SmartBoom PRO and SmartBoom LITE (PHS-SB11LE-DMG, PHS-SB110E-DMG, PHS-SB210E-DMG) MicroCom in-ear headset (PHS-IEL-M, PHS-IELPTT-M) MicroCom lavalier microphone and eartube (PHS-LAV-DM, PHS-LAVPTT-DM) Use the diagram of the wiring for the device’s TRRS connector if you choose to connect your own headphones.

  • Page 19: Device Specifications

    Note: PMC-900XR-AN is approved for use in Australia and New Zealand and operates within the 915–928 MHz frequency range. *Notice About Specifications: Notice about Specifications: While Pliant Technologies makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice.

  • Page 20: Product Care And Maintenance

    PRODUCT CARE AND MAINTENANCE Clean using a soft, damp cloth. CAUTION: Do not use cleaners that contain solvents. Keep liquid and foreign objects out of the device openings. If the product is exposed to rain, gently wipe off all surfaces, cables, and cable connections as soon as possible and allow unit to dry before storing.

  • Page 21: Product Support

    Return Material Authorization Number will ensure that your equipment is handled promptly. All shipments of Pliant products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material.

  • Page 22: License Information

    LICENSE INFORMATION PLIANT TECHNOLOGIES MICROCOM™ FCC COMPLIANCE STATEMENT 00004394 (FCCID: YJH-GM-900MSS) 00004445 (FCCID: YJH-GM-24G) 00005219 & 00005220 (FCCID: 2AX9C-00005220) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 23 IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antennas used for this transmitter must be installed to provide a separation distance of at least 5 mm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 24: Warranty Information

    Date of sale is determined by the invoice date from an authorized dealer or authorized distributor to the end user. The sole obligation of Pliant Technologies, LLC during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Pliant Technologies, LLC.
  • Page 25 This limited warranty is the sole and exclusive express warranty given with respect to Pliant Technologies, LLC products. It is the responsibility of the user to determine before purchase that this product is suitable for the user’s intended purpose. ANY AND ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

This manual is also suitable for:

Pmc-900xrPmc-900xr-an
