Pliant CREWCOM CB2-900 Quick Start Manual

Getting Started

This Quick Start Guide is a basic reference for information on setting up your CB2 wireless intercom system with the minimum equipment required for
wireless communication. For complete operation instructions, see the CB2 System Operating Manual or the CB2 System Online Help available at
plianttechnologies.com.
At a minimum, you will need:
• 1 CB2 BaseStation
• Up to 6 CRP-12 Radio Packs (RPs)
with charged batteries
• 2 headsets to test communication
1

Position your BaseStation.

A. Place the BaseStation on a flat, dry surface, or in a desired rack-mounted location (rack screws not included). Wherever it is placed, ensure that the
air input and output sections on the sides of the BaseStation are not restricted.

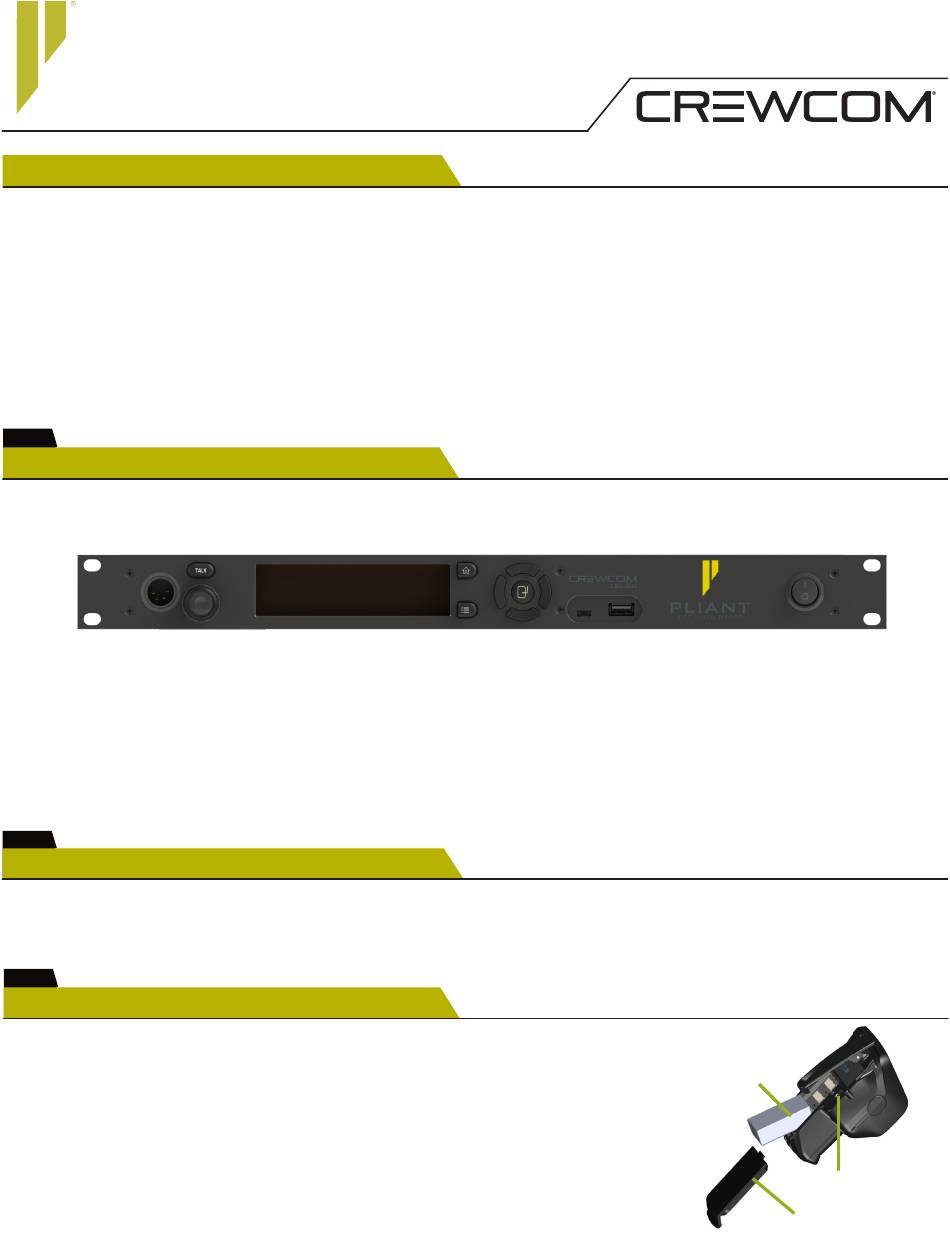

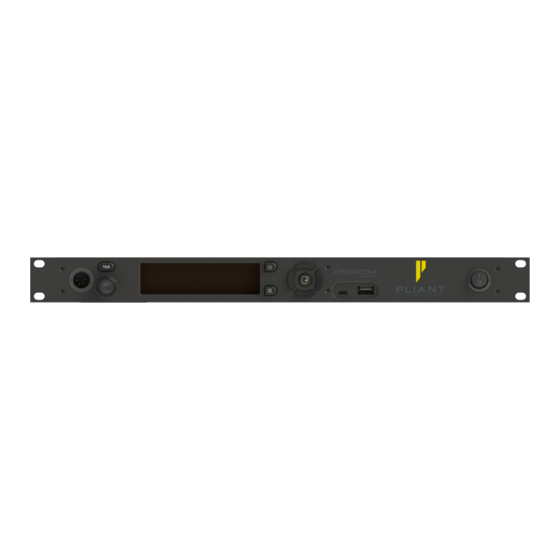

CB2 BaseStation
B. Connect the BaseStation to a compatible power source using provided power supply, but
C. Attach the provided omni-directional antenna to the BaseStation.
Note:
If using directional antennas (where legal), mount them on the edge of the coverage area and point antennas across coverage area. Find more antenna positioning
recommendations in the CB2 System Operating Manual and Online Help.
Note:
Up to two BaseStations, or a BaseStation and a separate CrewCom system, can be synchronized to co-exist when collocated. When possible, make sync
connection into both systems prior to powering on those systems. Find more sync connection instructions in the CB2 System Operating Manual or Online Help.
2

Power on the BaseStation.

A. Power on the BaseStation via its power switch.
B. Wait for the BaseStation to power on. It will display a progress bar during the startup process. Once the startup is complete, the home screen will
display on the front of the BaseStation.
3
Install Radio Packs' (RPs') batteries.
A. Hold the RP at about a 45-degree angle, pointing the bottom end down. Then, depress and
hold the RP's belt clip down.
B. Lift open the battery door and remove it.
C. While still holding the RP at a 45-degree angle and depressing the belt clip, install a fully-
charged Pliant Lithium-Polymer rechargeable battery or three AA batteries.
D. Place battery door back on the RP, making sure to align and insert its tab at the top first, and
then secure the door by pressing until its magnet engages and door seals shut.
Note:
RPs are powered with one Lithium-Polymer rechargeable battery for over 9 hours of operation, or they
may be powered with three AA alkaline batteries for up to 5 hours of operation.
Quick Start Guide
Plan your coverage area.
Before installation begins, it is a good idea to plan your coverage area so that equipment is positioned in
the best possible location. Here are some tips when planning your coverage area:
• Map out the site and identify the most critical areas where communication is needed.
• Locate antenna(s) in open spaces and avoid obstructions (especially metal).
• If using omni-directional antennas, position antennas in center of coverage area and as high as
possible.
do not
turn on power yet.
CRP-12 Radio Pack
Rechargeable Battery
CB2 System
Power Button
Battery Door
