Summary of Contents for Pliant MICROCOM 900M

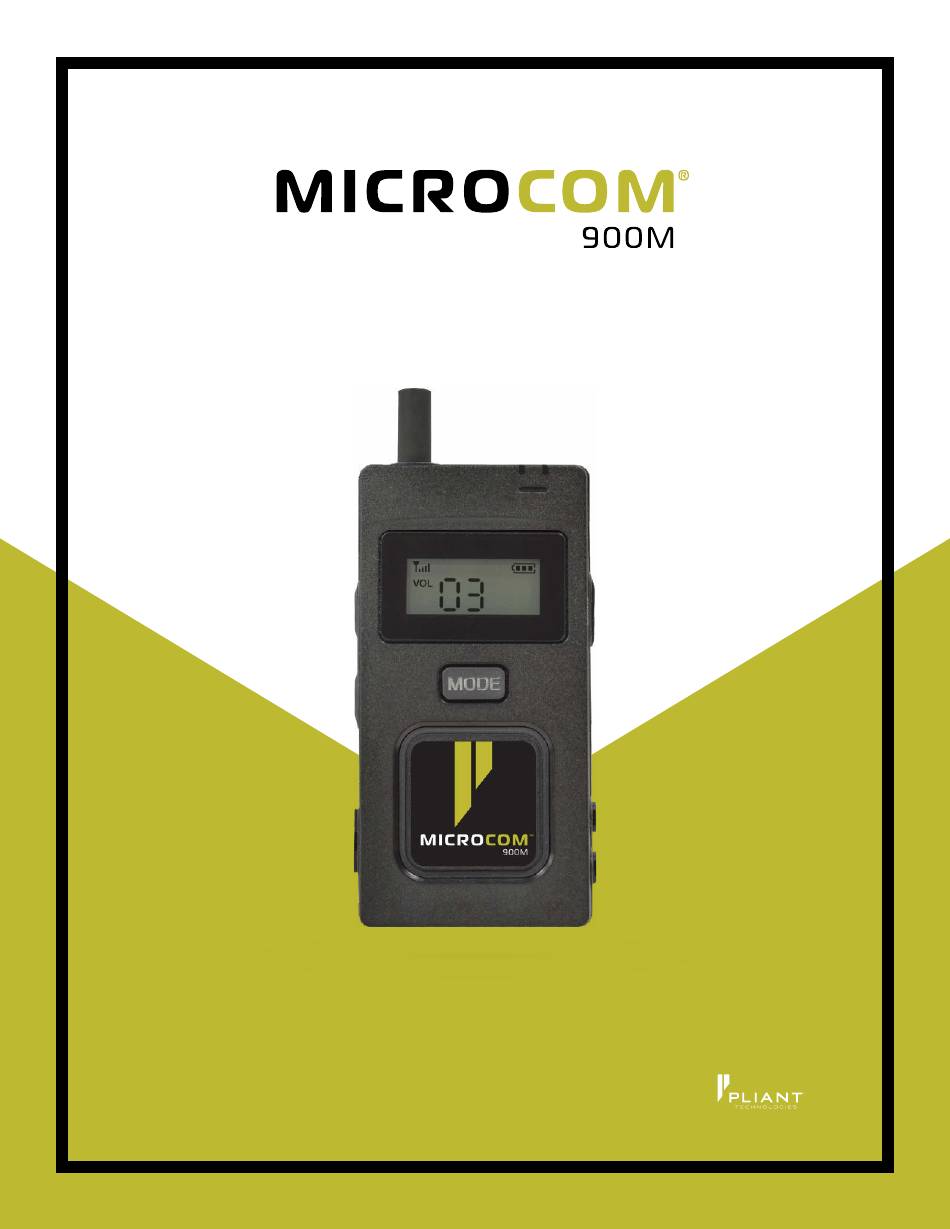

- Page 1 O P E R AT I N G M A N U A L COPYRIGHT © 2022 Pliant Technologies, LLC. All rights reserved. Pliant ® , MicroCom ® , and the Pliant “P” are registered trademarks of Pliant Technologies, LLC. All other trademarks are property of their respective owners. Document Reference: D0000511_J...
-
Page 2: Table Of Contents
CONTENTS Introduction ............................1 What’s Included with MicroCom 900M? ...................2 Controls ..............................2 Display Indicators ..........................3 Setup ..............................4 Battery ..............................4 Operation .............................5 Menu Settings .............................5 Device Specifications ..........................8 Product Care and Maintenance ......................9 Product Support ..........................9 License Information..........................10 Pliant Warranty Statement ........................11... -
Page 3: Introduction
In order to get the most out of your new MicroCom 900M, please take a few moments to read this manual completely so that you better understand the operation of this product. This document applies to models PMC-900M and PMC-900M-AN*. -
Page 4: What's Included With Microcom 900M
MicroCom PHS-SB110E-DMG SmartBoom PRO Single Ear Pliant headset with Dual Mini connector for MicroCom PHS-SB210E-DMG DMG: SmartBoom PRO Dual Ear Pliant headset with Dual Mini connector for MicroCom PHS-IEL-M MicroCom in-ear headset, single ear, left only PHS-IER-M MicroCom in-ear headset, single ear, right only... -
Page 5: Controls
CONTROLS Antenna Talk/State LED Charging LED LCD Screen Power Button Volume +/– Mode Button Buttons Talk Button USB Charger Headset Connection Connection DISPLAY INDICATORS Signal Indicator Battery Status Volume Level Talk Indicator Master Pack Indicator... -
Page 6: Setup
SETUP Connect a headset to the beltpack. The beltpack headset connection supports dual mini and single mini headsets. Dual mini connectors can be inserted in either direction. Single mini connectors can be inserted in either port of the headset connection. 2. -
Page 7: Operation
O P E R AT I N G M U LT I P L E M I C R O CO M S Y ST E M S I N O N E LO C AT I O N Each separate MicroCom system should use the same Group for all beltpacks in that system. Pliant recommends that systems operating in proximity to one another set their Groups to be at least ten (10) values apart. -
Page 8: Menu Settings
MENU SETTINGS The following settings are adjustable from the beltpack menu. To access the menu, press and hold the MODE button for 3 seconds, until the “GRP” symbol is blinking on the LCD. Then, short-press the MODE button the specified number of times to access the setting you wish to change. - Page 9 • Audio Output High/Low - Higher audio output is recommended for louder environments. Changing the output setting here results in a gain increase or decrease of 3 dB. » To switch the audio output setting, access the beltpack menu, then press the MODE button five (5) times.
-
Page 10: Device Specifications
Display 7-segment LCD * Notice about Specifications: While Pliant Technologies makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design-centered specifications and are included for customer guidance and to facilitate system installation. Actual operating performance may vary. -
Page 11: Product Care And Maintenance
Obtaining a Return Material Authorization Number will ensure that your equipment is handled promptly. All shipments of Pliant products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material. -
Page 12: License Information
LICENSE INFORMATION P L I A N T T E C H N O L O G I E S M I C R O CO M ™ FCC CO M P L I A N C E STAT E M E N T 00004130 (FCCID: YJH-MC-11) 00004130-B and 00004303 (FCCID: YJH-MCS-900) This equipment has been tested and found to comply with the limits for a Class B digital device,...
