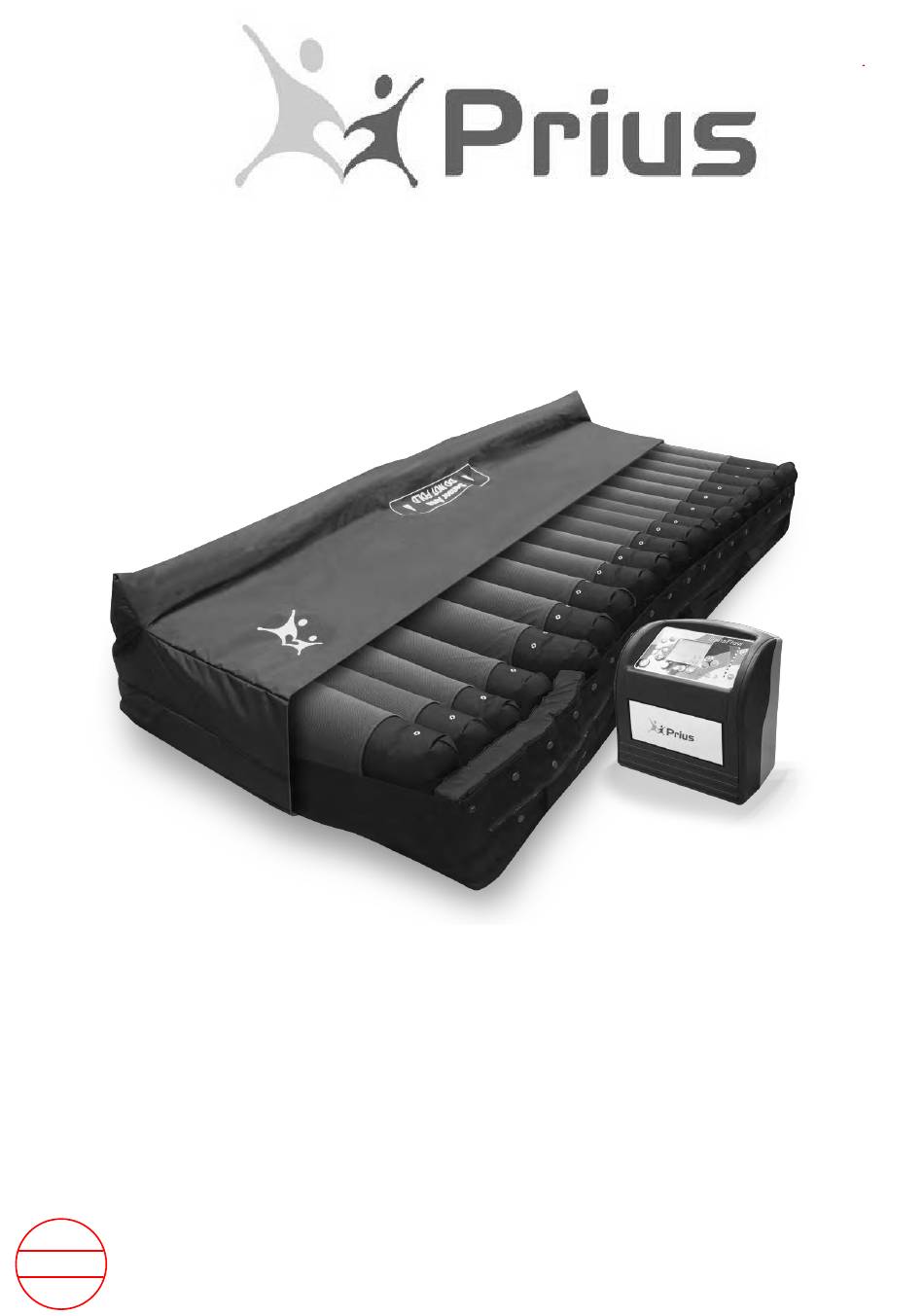

- Page 1 2020.10.20 文件中心 正式發行 DynaFlow Alternating Low Air Loss Pressure Relief System User Manual Prius Healthcare USA 160 Scarlet Blvd. Oldsmar, FL 34677, USA TEL: (813)854-5464 FAX: (813)854-5442 文件中心 2023.06.02 正式發行 2305...
-
Page 2: Table Of Contents
2. Product Description ....................1 Master Control Unit Features Mattress Features 3. Technical Data ......................3 Master Control Unit DynaFlow Mattress Replacement Symbol Definition 4. Instruction for Proper Use ................... 4 5. Cleaning ........................8 The Mattress The Master Control Unit... - Page 3 文件中心 2020.10.20 正式發行 Warning ❖ Connect the Master Control unit to a proper power source. ❖ Don’t use the system in the presence of any flammable gases. ( such as Anesthetic Agents) ❖ Keep the pump and mattress away from open flame. ❖...
-
Page 4: The Purpose Of This Manual
The system is also come with pulsation which simulates a massage to assist in maximizing a patient’s comfort. This DynaFlow system is intended for use by those who are at least fifteen years in age. - Page 5 Alternating pressure should not be applied to pain or pain-sensitive patients. In these cases, we recommend the application of static mode or other suitable foam overlays or other materials which can be found in sample supply in the PRIUS Healthcare USA product range. Patient’s Comfort...
-
Page 6: Technical Data
3. Technical Data 文件中心 2020.10.20 正式發行 Master Control Unit Model No. FC-PHR0028 Model Name DynaFlow Size (inch) LxWxH 12.2“ x 13.2“ x 6.7“ Weight 15.5 Lbs Cycle Time (min) 3 - 95 Min Operating Pressure 8 +/- 5mmHg Max Operating Pressure... -
Page 7: Symbol Definition
Symbol Definition 文件中心 2020.10.20 正式發行 Type BF Protection Against Class II Equipment Electronic Shock Refer To Instruction Manual / Caution, Consult Booklet accompanying NOTE : Background color: blue documents Symbol : white Keep dry Waste Disposal SGS product Alternating Current certification mark 4.Instruction for Proper Use 1. - Page 8 8. Plug in the control unit and turn on the power which is located on the left side corner on control panel (the STANDBY LED will illuminate). 文件中心 2020.10.20 正式發行 9. Press the STANDBY/OPERATE switch button on the control panel (OPERATE LED will now be illuminated and the control unit will be in operation) 10 Make sure to turn the power off when the system not in use.
- Page 9 Alternate Mode 文件中心 2020.10.20 正式發行 1. Press the "MODE" button to select the Alternate and Static Function to enable the 3-1 alternating functions. Alternation Cycle Illustration 2. Press "CYCLE" button for alternating time setting. Alternating time can be adjusted from 3 min to 20 min by increments of 1 min and 20 min to 95 minutes by increments of 5 min.
- Page 10 Disable the alarm by pressing the button. Lock Button 1. The Prius DynaFlow is equipped with auto-locking intelligence. All function keys will be automatically disabled if the control panel is not in operation for 2 minutes and when this function is engaged an green LED will illuminate.
-
Page 11: Cleaning
5. Cleaning 文件中心 2020.10.20 正式發行 The Mattress The mattress should be cleaned on the bed weekly using a damp soft cloth and mild detergent. If top cover or base cover becomes grossly soiled, put on clean gloves, plastic gown and eye protection before removing top and base covers and disposing according to standard hospital procedures for contaminated waste and replace with clean covers. -
Page 12: Waste Disposal
文件中心 2020.10.20 正式發行 Filter NOTE: 1. Do not use phenol based cleaning solutions. 2. Switch off the electrical supply to the pump and disconnect the power cord from the main supply before cleaning and inspection) Waste Disposal This Product has been supplied from an environmentally aware manufacturer that complies with the WEEE. -
Page 13: Maintenance And Troubleshooting
7. Maintenance & Troubleshooting 文件中心 2020.10.20 正式發行 No daily maintenance is required. It is intended this equipment should only be serviced by properly qualified, authorized technical personnel. Caregivers should check the patient and control unit setting every two hours. In case of minor trouble please refer as following Troubleshooting. -
Page 14: Emc Related Notification
正式發行 Manufacturer’s declaration-electromagnetic emissions The DYNAFLOW is intended for use in the electromagnetic environment (for professional healthcare) specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Emission test Compliance... - Page 15 2020.10.20 正式發行 The DYNAFLOW is intended for use in the electromagnetic environment (for professional healthcare) specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
- Page 16 正式發行 The DYNAFLOW is intended for use in the electromagnetic environment (for professional healthcare) specified below. The customer or the user of the DYNAFLOW should assure that is used in such and environment. Immunity test IEC 60601 test Compliance level...
- Page 17 RF communications equipment and the DYNAFLOW 2020.10.20 正式發行 The DYNAFLOW is intended for use in an electromagnetic environment (for professional healthcare) in which radiated RF disturbances are controlled. The customer or the user of the DYNAFLOW can help prevent electromagnetic...
- Page 18 正式發行 communications equipment The DYNAFLOW is intended for use in the electromagnetic environment (for professional healthcare) specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Compliance IMMUNITY LEVEL Test...
-
Page 19: Warranty
9. Warranty 文件中心 2020.10.20 正式發行 ⚫ Prius Healthcare Products guarantees that this equipment is free from defects in material and workmanship. Our obligation under this warranty is limited to the repair of equipment returned to the service address given below, transportation charges prepaid, within 12 months after delivery to the original purchaser for all equipment. - Page 20 文件中心 2020.10.20 正式發行 Prius Healthcare USA 160 Scarlet Blvd. Oldsmar, FL 34677, USA TEL: (813)854-5464 FAX: (813)854-5442 文件中心 2023.06.02 AL300217 V1.02 正式發行...
