  • Page 5: The Purpose Of This Manual

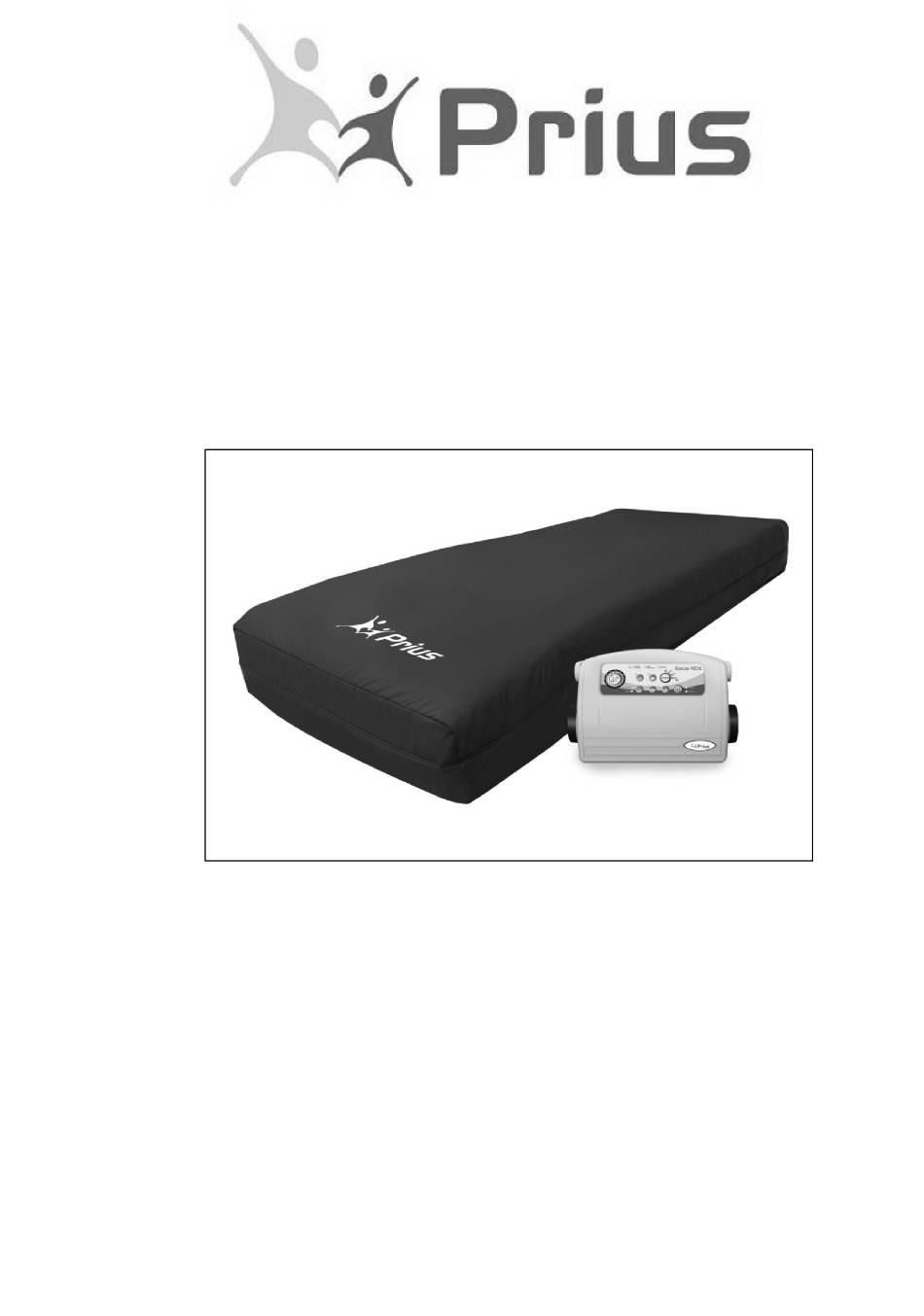

    1. The Purpose of this Manual This operation manual focuses on the set up, cleaning and routine maintenance of the Salute RDX 3‐1 Alternating Anti‐Decubitus System. We recommend keeping this manual available to answer question related to this system. 2. Product Description Salute RDX 3‐1 Alternating Anti‐Decubitus System is a pressure ulcer prevention mattress replacement system designed for use in the home, at a nursing facility or in a hospital environment. Use of this system on a standard bed frame is possible; however the use of this system on a bed frame designed for a healthcare environment is preferred. The system consists of an electronic control unit with a membrane control panel and a replacement mattress containing 18 air cells arranged in a transverse manner. The air cells are designed with Micro Low Air Loss feature to assist in managing the moisture on a patient’s skin by allowing additional air to circulate on mattress surface. Another unique feature is the Happy Heel which provides independent comfort control settings for the heel section allowing improved patient outcomes as...
  • Page 6: Mattress Features

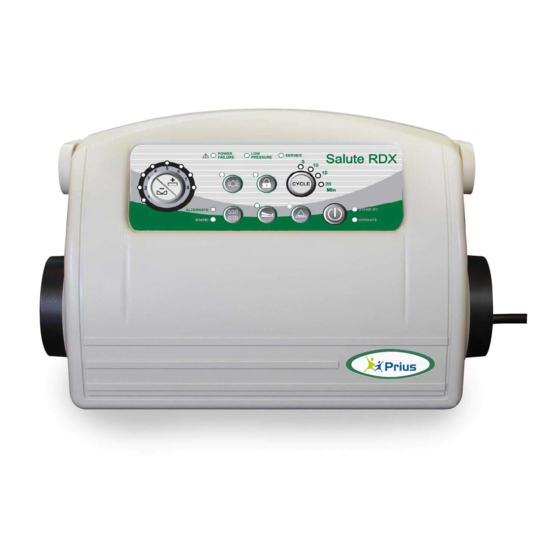

    Main Feature Description Therapy Mode allows you to select Alternation or Stactic Therapy. Happy Heel is an independent pressure control for the heel section of the mattress to assist in improved patient outcome as well improving patient comfort. Auto Firm allows for a quick inflation in stactic mode. Alarm Mute allows you to mute the alarm while corrective action is being taken to determine the cause of alarm.
  • Page 7: Technical Data

    3. Technical Data Master Control Unit Model Name Salute RDX Control Unit Model No. FC‐PHR0032 Size (inch) LxWxH 13.5“ x 5.4“ x 8.3“ Weight(lbs) 7.5 Cycle Time (min) 5, 10, 15, 20 min Min Operating Pressure 12 +/‐ 5mmHg Max Operating Pressure 47 +/‐ 5mmHg Max Flow‐rate 6 l/min ≧ Rated Voltage AC 110‐120V Max Current 0.2 Amp Fuse Rating 1A 250V Rated Frequency 60 Hz Class II, Type BF   Classification Not AP/APG type Ingress of Water IP21 Protection Mode of Operation Continuous Operation: 15°C to 35°C (59°F to 95°F) Environment (Temperature) Storage:5°C to 60°C (41°F to 140°F) Operation: 30% to 75% non‐condensing Environment (Humidity) Storage: 30% to 90% non‐condensing...
  • Page 8: Symbol Definition

    Symbol Definition Type BF     Protection Against  Class II Equipment  Electronic Shock  Operating Instructions  Waste Disposal  Caution, Consult    accompanying  Alternating Current    documents  4. Instruction for Proper Use 1. Remove the control unit from the box and hang it at the foot end of the bed using the hooks on the back of the control unit. 2. Plug the power cord into an appropriate outlet. 3. If applicable remove the existing mattress from the bed frame. 4. Remove the Salute RDX replacement mattress from its packaging and place it directly on the bed frame. 5. Make sure that the connecting hose is positioned at the foot of the bed near the control unit. 6.
  • Page 9 9. Turn on the control unit using the power switch located on the side of the unit. Select the auto firm comfort control dial for quick inflation. 10. During the inflation process, the low pressure LED will be displayed until the mattress is properly inflated, . The inflation time of the mattress can take 30 to 40 minutes. For quicker inflation a portable blower unit is available. Please contact Prius Healthcare USA for additional information, (813) 854‐5464. 11. When the mattress is fully inflated , set the dial in accordance with the patient’s size and weight. Run the system check.  The system is ready for use.  Now the patient can be transferred onto the mattress. ...
  • Page 10 Alarm Function The Salute RDX 3‐1 Alternating Anti‐Decubitus System is equipped with a visual and audible alarm in the event of low pressure. During the initial inflation period the system is in low pressure mode and the low pressure LED will illuminate. The audible alarm is set with a delay function to take into consideration the inflation time. The alarm will activate automatically after 45 minutes if the unit does not inflate properly. When the mattress pressure drops from the set pressure during patient re‐ positioning the audible alarm will switch to a 5 minute delay to avoid undesired alarm activation.
  • Page 11: Cleaning

    5. Cleaning The Mattress The mattress should be cleaned weekly using a damp soft cloth and mild detergent. If the top cover or base cover becomes excessively soiled, put on clean gloves, plastic gown and eye protection and remove top and base covers from the air cells and tubing. Place soiled covers in an appropriate container in accordance with your facilities standard operating procedures for contaminated waste, replace mattress with clean covers.
  • Page 12: Replace Air Filter

    Replace Air Filter 1. Remove air filter cover to access air filter. Pinch the center of air filter and pull outward, replace with a new filter. 2. If air filter opening is soiled use a soft bristle brush to remove dust and dried‐ on soil. NOTE: 1. Do not use any phenol based cleaning solutions. 2. Switch off the electrical supply to the pump and disconnect the power cord from the main supply before cleaning and inspection. Waste Disposal This Product has been supplied by an environmentally conscious manufacturer that complies with the WEEE. This product may contain substances that could be harmful to the environment if disposed of in places that are not approved by your state, local or federal laws. Please be environmentally responsible and recycle this product through your recycling facility at its end of life.
  • Page 13: Maintenance And Troubleshooting

    7. Maintenance & Troubleshooting Daily maintenance is not required. This equipment should only be serviced by a qualified and authorized technician. For common troubleshooting tips please refer to the chart below. Symptom Inspection Procedures Possible Solution The pump is not 1. Check power source 1. Connect to proper power functioning. connection. source. 2. Check for blown fuse. 2. Replace fuse. 3. Refer to qualified service technician if problem persist. Low pressure LED is 1. Check for loose hose 1. Make sure connectors are constantly illuminated or connections.
  • Page 14: Emc Related Notification

    8. EMC Related Notifications Guidance and manufacturer’s declaration – electromagnetic emissions The Salute RDX is intended for use in the electromagnetic environment specified below. The customer or the user of the Salute RDX is responsible for making sure that it is used in such environment. Emissions test Compliance Electromagnetic environment – guidance RF emissions Group 1 The Salute RDX uses RF energy only for its internal function. Therefore, its RF emissions...
  • Page 15 Recommended separation distances between portable and mobile RF communications equipment and the Salute RDX The Salute RDX is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Salute RDX can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Salute RDX as recommended below, in accordance to the maximum output power of the communications equipment. Rated Separation distance according to frequency of transmitter maximum...
  • Page 16 Guidance and manufacturer’s declaration – electromagnetic immunity Salute RDX The is intended for use in the electromagnetic environment specified below. The customer Salute RDX or the user of the is responsible for making sure that it is used in such an environment. IEC 60601 Electromagnetic environment – Immunity test Compliance level test level guidance Electrostatic Floors should be wood, concrete or ±6 kV contact ±6 kV contact discharge (ESD) ±8 kV air ±8 kV air ceramic tile. If floors are covered with IEC 61000‐4‐2 synthetic material, the relative humidity should be at least 30 %. Electrical fast The main power quality should be that of ±2 kV for power ±2 kV for power transient/burst supply lines supply lines a typical commercial or hospital environment. IEC 61000‐4‐4 ±1 kV for ±1 kV for input/output input/output lines lines Surge The main power quality should be that of ±1 kV line(s) to...
  • Page 17 Guidance and manufacturer’s declaration – electromagnetic immunity Salute RDX The is intended for use in the electromagnetic environment specified below. The customer or Salute RDX the user of the is responsible for making sure that it is used in such an environment. Immunity IEC 60601 test Compliance Electromagnetic environment – guidance test level level Portable and mobile RF communications equipment Salute should be used no closer to any part of the , including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
  • Page 18: Expected Service Life

    9. Expected Service Life The Salute RDX pump has an expected service life of two years. To maintain the condition of the pump, have the pump serviced regularly according to the schedule recommended by Caremed. Do NOT use unapproved accessories or attempt to modify, disassemble or otherwise misuse the Salute RDX system. 10. Warranty  Prius Healthcare guarantees this equipment to be free from defects in material and workmanship for up to 12 months from the date of delivery.
